SX2CG-18K10E-54MHZ,FCD-Tech家庭網絡晶振,2520mm,54MHZ,CMOS振蕩器,進口FCD-Tech Crystal,荷蘭有源晶振,54MHZ石英晶振,有源晶振,2520mm小封裝晶振,時鐘晶體振蕩器,尺寸2.5x2.0mm,頻率54MHZ,電壓1.8V,輸出CMOS,高穩定晶振,低電壓晶振,低相位晶振,低相噪晶振,移動通信晶振,無線局域網晶振,家庭網絡晶振,數字視頻晶振,羅拉模塊晶振,娛樂設備晶振.
SX2CG-18K10E-54MHZ,FCD-Tech家庭網絡晶振,2520mm,54MHZ,CMOS振蕩器特點:
超小型封裝,HCMOS表面貼裝時鐘晶體振蕩器
提供工業級緊密溫度穩定性（+-10 ppm-40/+85°C）
低相位噪聲
應用：無線局域網，家庭網絡，移動通信.
SX2CG-18K10E-54MHZ,FCD-Tech家庭網絡晶振,2520mm,54MHZ,CMOS振蕩器 參數表
| Item | Specification | ||||||||||||
| Frequency Range | 54.0 MHz | ||||||||||||
| Output Logic | CMOS | ||||||||||||
| Overall Frequency Stability * | ± 10 ppm~± 20 ppm( see options ) | ||||||||||||
| Operating Temperature Range | -40°~+85°C | ||||||||||||
| Supply VoltageVdd | +1.8V±5%+2.5V±5%+2.8V±5% | +3.0V±5% | +3.3V±5% | ||||||||||
| Supply CurrentIdd | 7 mA max. | ||||||||||||
| Output Level | VOH ≥ 0.9 Vdd | VOL ≤ 0.1 Vdd | |||||||||||
| Output Load | 15 pF | ||||||||||||
| Symmetry | 40 / 55 % | ||||||||||||
 Rise Time / Fall
|
5 ns max | ||||||||||||
| Tri-state function |
pin #1 = high or open pin #1 = low |
pin #3==>oscillation pin #3==>high impedance |
|||||||||||
| Start-up Time | 10 ms max. | ||||||||||||
| RMS Jitter ( 12 kHz to 20 MHz band ) | 1 ps max. | ||||||||||||
| Phase Noise |
 -150 dBc/Hz typ. at 10
|
||||||||||||
| Packing Unit | 3000pcs / reel | ||||||||||||
| Soldering Condition | 260°C , 10 sec x2 max | ||||||||||||

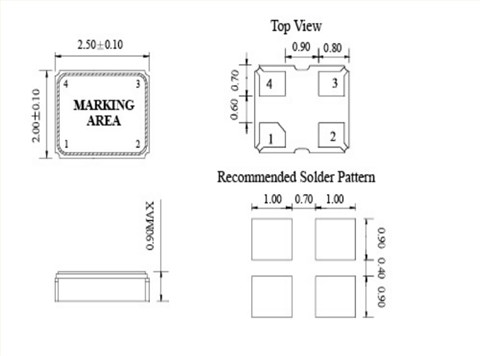

SX2CG-18K10E-54MHZ,FCD-Tech家庭網絡晶振,2520mm,54MHZ,CMOS振蕩器尺寸圖
