KC3225K,KC3225K24.5760C1GE00,24.576MHz,3225mm,Kyocera晶振，日本進口晶振，Kyocera晶振，京瓷晶振，型號：KC3225K系列晶振，編碼為：KC3225K24.5760C1GE00，電壓：1.6V~3.63V，CMOS輸出晶振，頻率為：24.576MHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x2.5mm表面貼裝，四腳貼片晶振，有源晶振，石英晶振，石英晶體振蕩器，SMD水晶振動子，時鐘晶體振蕩器。具有超小型晶振，輕薄型晶振，高可靠性晶振，高品質晶振，高質量等特點。應用于：通訊設備晶振，無線藍牙晶振，汽車電子晶振，網絡晶振，導航儀晶振，工業設備等應用。

KC3225K,KC3225K24.5760C1GE00,24.576MHz,3225mm,Kyocera晶振，產品特點：

●對應頻率1.5~160MHz

●CMOS輸出石英晶體振蕩器

●電源電壓1.6V~3.63V

●低電流消耗類型

●低相位噪聲

KC3225K,KC3225K24.5760C1GE00,24.576MHz,3225mm,Kyocera晶振,參數表

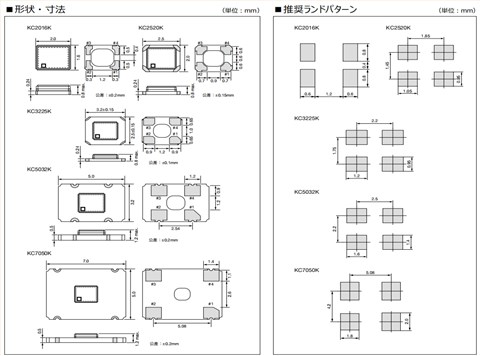

KC3225K,KC3225K24.5760C1GE00,24.576MHz,3225mm,Kyocera晶振,尺寸圖

原廠編碼	晶振廠家	系列	頻率	電壓	工作溫度
KC3225K40.0000C1GE00	Kyocera京瓷	KC3225K	40MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K20.0000C1GE00	Kyocera京瓷	KC3225K	20MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K27.0000C1GE00	Kyocera京瓷	KC3225K	27MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K32.0000C1GE00	Kyocera京瓷	KC3225K	32MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K33.3333C1GE00	Kyocera京瓷	KC3225K	33.3333MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K48.0000C1GE00	Kyocera京瓷	KC3225K	48MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K50.0000C1GE00	Kyocera京瓷	KC3225K	50MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K1.84320C1GE00	Kyocera京瓷	KC3225K	1.8432MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K7.37280C1GE00	Kyocera京瓷	KC3225K	7.3728MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K8.00000C1GE00	Kyocera京瓷	KC3225K	8MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K10.0000C1GE00	Kyocera京瓷	KC3225K	10MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K12.0000C1GE00	Kyocera京瓷	KC3225K	12MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K14.7456C1GE00	Kyocera京瓷	KC3225K	14.7456MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K18.4320C1GE00	Kyocera京瓷	KC3225K	18.432MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K32.7680C1GE00	Kyocera京瓷	KC3225K	32.768MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K33.0000C1GE00	Kyocera京瓷	KC3225K	33MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K60.0000C1GE00	Kyocera京瓷	KC3225K	60MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K66.6667C1GE00	Kyocera京瓷	KC3225K	66.6667MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K24.0000C1GE00	Kyocera京瓷	KC3225K	24MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K16.0000C1GE00	Kyocera京瓷	KC3225K	16MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K80.0000C1GE00	Kyocera京瓷	KC3225K	80MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K24.5760C1GE00	Kyocera京瓷	KC3225K	24.576MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K3.68640C1GE00	Kyocera京瓷	KC3225K	3.6864MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K4.00000C1GE00	Kyocera京瓷	KC3225K	4MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K14.3182C1GE00	Kyocera京瓷	KC3225K	14.3182MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K16.3840C1GE00	Kyocera京瓷	KC3225K	16.384MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K2.04800C1GE00	Kyocera京瓷	KC3225K	2.048MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K22.5792C1GE00	Kyocera京瓷	KC3225K	22.5792MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K28.6364C1GE00	Kyocera京瓷	KC3225K	28.6364MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K75.0000C1GE00	Kyocera京瓷	KC3225K	75MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K12.2880C1GE00	Kyocera京瓷	KC3225K	12.288MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K25.0000C1GE00	Kyocera京瓷	KC3225K	25MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K11.2896C1GE00	京瓷晶振	KC3225K	11.2896MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K13.5600C1GE00	Kyocera京瓷	KC3225K	13.56MHz	1.6 V ~ 3.63 V	-40°C ~ 85°C
KC3225K1.84320C10E00	Kyocera京瓷	KC3225K	1.8432MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K2.04800C10E00	Kyocera京瓷	KC3225K	2.048MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K3.68640C10E00	Kyocera京瓷	KC3225K	3.6864MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K4.00000C10E00	Kyocera京瓷	KC3225K	4MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K7.37280C10E00	Kyocera京瓷	KC3225K	7.3728MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K8.00000C10E00	Kyocera京瓷	KC3225K	8MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K10.0000C10E00	Kyocera京瓷	KC3225K	10MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K11.2896C10E00	Kyocera京瓷	KC3225K	11.2896MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K12.0000C10E00	Kyocera京瓷	KC3225K	12MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K12.2880C10E00	Kyocera京瓷	KC3225K	12.288MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K13.5600C10E00	Kyocera京瓷	KC3225K	13.56MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K14.3182C10E00	Kyocera京瓷	KC3225K	14.3182MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K14.7456C10E00	Kyocera京瓷	KC3225K	14.7456MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K16.0000C10E00	Kyocera京瓷	KC3225K	16MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K16.3840C10E00	Kyocera京瓷	KC3225K	16.384MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K18.4320C10E00	Kyocera京瓷	KC3225K	18.432MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K20.0000C10E00	Kyocera京瓷	KC3225K	20MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K22.5792C10E00	Kyocera京瓷	KC3225K	22.5792MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K24.0000C10E00	Kyocera京瓷	KC3225K	24MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K24.5760C10E00	Kyocera京瓷	KC3225K	24.576MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K25.0000C10E00	Kyocera京瓷	KC3225K	25MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K27.0000C10E00	Kyocera京瓷	KC3225K	27MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K28.6364C10E00	Kyocera京瓷	KC3225K	28.6364MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K32.0000C10E00	Kyocera京瓷	KC3225K	32MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K32.7680C10E00	Kyocera京瓷	KC3225K	32.768MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K33.0000C10E00	Kyocera京瓷	KC3225K	33MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K33.3333C10E00	Kyocera京瓷	KC3225K	33.3333MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K40.0000C10E00	Kyocera京瓷	KC3225K	40MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K48.0000C10E00	Kyocera京瓷	KC3225K	48MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K50.0000C10E00	Kyocera京瓷	KC3225K	50MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K60.0000C10E00	Kyocera京瓷	KC3225K	60MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K66.6667C10E00	Kyocera京瓷	KC3225K	66.6667MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K75.0000C10E00	Kyocera京瓷	KC3225K	75MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
KC3225K80.0000C10E00	Kyocera京瓷	KC3225K	80MHz	1.6 V ~ 3.63 V	-10°C ~ 70°C
