3225mm通信晶振,CMOS,SX3CB-15K20E-45MHz,FCD-Tech小尺寸振蕩器,有源貼片晶振,石英晶體振蕩器,45MHZ有源晶振,OSC晶振,時鐘晶體振蕩器,CMOS振蕩器,3225mm晶振,四腳有源振蕩器,尺寸3.2x2.5mm,頻率45MHZ,低損耗晶振,低電壓晶振,低相位晶振,無鉛晶振,便攜式設備晶振,無線通信晶振,光纖通道晶振,移動電話晶振.
3225mm通信晶振,CMOS,SX3CB-15K20E-45MHz,FCD-Tech小尺寸振蕩器特點:
HCMOS表面貼裝時鐘晶體振蕩器
超小型封裝
低電壓,低電流
應用：無線通信,便攜式電子,光纖通道.
3225mm通信晶振,CMOS,SX3CB-15K20E-45MHz,FCD-Tech小尺寸振蕩器 參數表
| Item | Specification | ||||||||||||||||
| Frequency Range | 45.0 MHz | ||||||||||||||||
| Output Logic | CMOS | ||||||||||||||||
| Overall Frequency Stability * | ± 20 ppm~± 100 ppm (see options) | ||||||||||||||||
| Operating Temperature Range |
0 ~ +70°C commercial application (see options) -40 ~ +85°C industrial application (see options) |
||||||||||||||||
| Supply Voltage Vdd | +1.2V±5%+1.5V±5% | ||||||||||||||||
| Supply Current Idd | 4 mA max5 mA max | ||||||||||||||||
| Output Level | VOH ≥ 0.9 VddVOL ≤ 0.1 Vdd | ||||||||||||||||
| Output Load | 15 pF | ||||||||||||||||
| Symmetry | 45 / 55 % | ||||||||||||||||
 Rise Time / Fall Time
|
3~8 ns | ||||||||||||||||
| Tri-state function |
pin #1 = high or open pin #1 = low |
pin #3=oscillation pin #3=high impedance |
|||||||||||||||
| Start-up Time | 10 ms max. | ||||||||||||||||
|
RMS Jitter (12 kHz to 20 MHz band) |
1 ps max. | ||||||||||||||||
 Packing Unit
|
|||||||||||||||||
 Soldering Condition
|
|||||||||||||||||
| Customer specifications on request | |||||||||||||||||

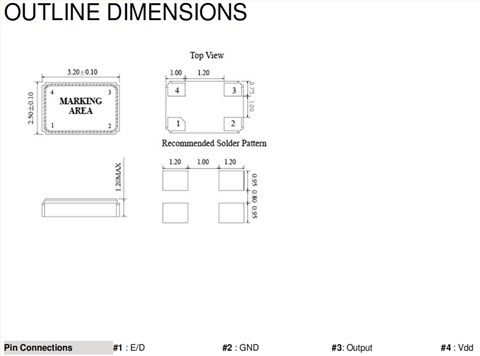

3225mm通信晶振,CMOS,SX3CB-15K20E-45MHz,FCD-Tech小尺寸振蕩器尺寸圖
