全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 Silicon晶振

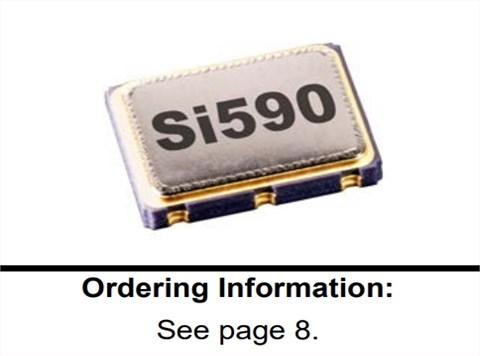

590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm

590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm

產品簡介

590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm,有源晶體振蕩器,歐美有源晶振,OSC晶振,有源貼片晶振,六腳有源晶振,XO時鐘晶體振蕩器,7050mm有源振蕩器,156.25MHZ晶振,尺寸7.0×5.0mm,頻率156.25MHZ,電壓3.3V,頻率穩定性±50ppm,低電壓晶振,高可靠晶振,低相位晶振,低相噪晶振,網絡晶振,測試測量晶振,數字視頻晶振,ASIC時鐘生成晶振.


產品詳情

1

590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm,有源晶體振蕩器,歐美有源晶振,OSC晶振,有源貼片晶振,六腳有源晶振,XO時鐘晶體振蕩器,7050mm有源振蕩器,156.25MHZ晶振,尺寸7.0×5.0mm,頻率156.25MHZ,電壓3.3V,頻率穩定性±50ppm,低電壓晶振,高可靠晶振,低相位晶振,低相噪晶振,網絡晶振,測試測量晶振,數字視頻晶振,ASIC時鐘生成晶振.

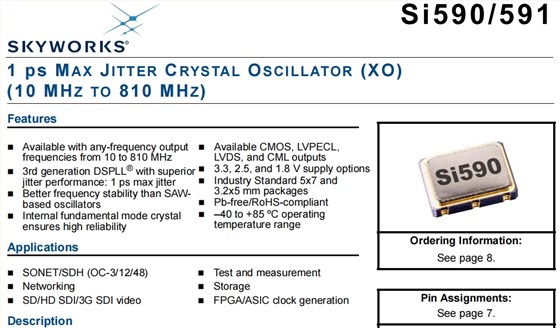

590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm特點:

可用于任何頻率輸出頻率從10到810兆赫

具有卓越性能的第三代DSPLL®抖動性能：最大抖動1 ps

比基于SAW的振蕩器具有更好的頻率穩定性.,內部基模晶體確保高可靠性

有源晶體振蕩器可用的CMOS、LVPECL、LVDS和CML輸出

3.3、2.5和1.8 V電源選項,行業標準5x7和3.2x5 mm包裝

無鉛/符合RoHS,–40至+85ºC運行溫度范圍

2

590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm 參數表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS 		—
—
—
— 		110
100
90
80 		125
110
100
90 		mA
Tristate mode — 60 75
Output Enable (OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5
Operating Temperature Range TA –40 — 85 ºC
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 810 MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D” ±20 ppm
Note 3, second option code “C” ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C” ±20 ppm
second option code “B” ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2 fO LVPECL/LVDS/CML 10 — 810 MHz
CMOS 10 — 160
Initial Accuracy fi Measured at +25 °C at time of
shipping 		— ±1.5 — ppm
Total Stability Note 3, second option code “D” ±20 ppm
Note 3, second option code “C” ±30 ppm
Note 4, second option code “B” — — ±50 ppm
Note 4, second option code “A” — — ±100 ppm
Temperature Stability second option code “D” — — ±7 ppm
second option code “C” ±20 ppm
second option code “B” ±25 ppm
second option code “A” — — ±50 ppm
Powerup Time5 tOSC — — 10 ms

3

590DA156M250DG,Si590,Silicon測量晶振,156.25MHZ,7050mm尺寸圖

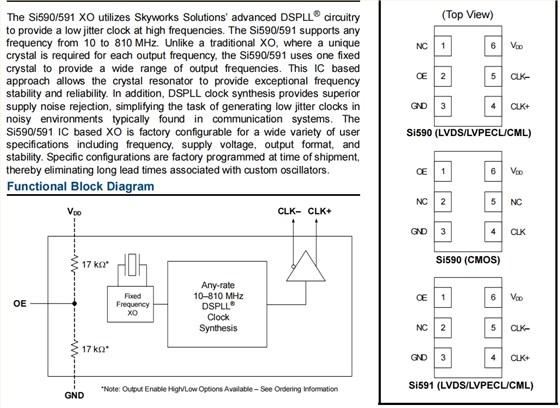

Si590 Si591 7050

Si590 Si591 1

Si590 Si591 2

Manufacturer Part Number原廠代碼 Manufacturer品牌 Series型號 Frequency 頻率 Voltage - Supply電壓 Frequency Stability頻率穩定度
531BB125M000DG Silicon Labs Si531 125MHz 3.3V ±20ppm
531FB200M000DG Silicon振蕩器 Si531 200MHz 2.5V ±20ppm
531FC250M000DG Silicon振蕩器 Si531 250MHz 2.5V ±7ppm
531FB125M000DG Silicon振蕩器 Si531 125MHz 2.5V ±20ppm
531BC000110DG Silicon振蕩器 Si531 148.35165MHz 3.3V ±7ppm
535FB125M000DG Silicon振蕩器 Si535 125MHz 2.5V ±20ppm
531BC200M000DG Silicon振蕩器 Si531 200MHz 3.3V ±7ppm
531BC250M000DG Silicon振蕩器 Si531 250MHz 3.3V ±7ppm
531BC125M000DG Silicon振蕩器 Si531 125MHz 3.3V ±7ppm
531FB106M250DG Silicon振蕩器 Si531 106.25MHz 2.5V ±20ppm
531AC156M250DG Silicon振蕩器 Si531 156.25MHz 3.3V ±7ppm
531AC200M000DG Silicon振蕩器 Si531 200MHz 3.3V ±7ppm
531BC148M500DG Silicon振蕩器 Si531 148.5MHz 3.3V ±7ppm
531BC156M250DG Silicon振蕩器 Si531 156.25MHz 3.3V ±7ppm
531AC125M000DG Silicon振蕩器 Si531 125MHz 3.3V ±7ppm
531FC125M000DG Silicon振蕩器 Si531 125MHz 2.5V ±7ppm
531FC156M250DG Silicon振蕩器 Si531 156.25MHz 2.5V ±7ppm
531FC148M500DG Silicon振蕩器 Si531 148.5MHz 2.5V ±7ppm
531AC155M520DG Silicon振蕩器 Si531 155.52MHz 3.3V ±7ppm
531BC155M520DG Silicon振蕩器 Si531 155.52MHz 3.3V ±7ppm
531FC200M000DG Silicon振蕩器 Si531 200MHz 2.5V ±7ppm
531AC000110DG Silicon振蕩器 Si531 148.35165MHz 3.3V ±7ppm
531AC148M500DG Silicon振蕩器 Si531 148.5MHz 3.3V ±7ppm
535EB156M250DG Silicon振蕩器 Si535 156.25MHz 2.5V ±20ppm
590AB70M6560DG Silicon振蕩器 Si590 70.656MHz 3.3V ±25ppm
590FA200M000DG Silicon振蕩器 Si590 200MHz 2.5V ±50ppm
590DA156M250DG Silicon振蕩器 Si590 156.25MHz 3.3V ±50ppm
531AC125M000DGR Silicon振蕩器 Si531 125MHz 3.3V ±7ppm
531BC125M000DGR Silicon振蕩器 Si531 125MHz 3.3V ±7ppm
531EC125M000DGR Silicon振蕩器 Si531 125MHz 2.5V ±7ppm
531FC125M000DGR Silicon振蕩器 Si531 125MHz 2.5V ±7ppm
531AC106M250DGR Silicon振蕩器 Si531 106.25MHz 3.3V ±7ppm
531BC106M250DGR Silicon振蕩器 Si531 106.25MHz 3.3V ±7ppm
531EC106M250DGR Silicon振蕩器 Si531 106.25MHz 2.5V ±7ppm
531FC106M250DGR Silicon振蕩器 Si531 106.25MHz 2.5V ±7ppm
531FC25M0000DGR Silicon振蕩器 Si531 25MHz 2.5V ±7ppm
531AC155M520DGR Silicon振蕩器 Si531 155.52MHz 3.3V ±7ppm
531AC156M250DGR Silicon振蕩器 Si531 156.25MHz 3.3V ±7ppm
531BC155M520DGR Silicon振蕩器 Si531 155.52MHz 3.3V ±7ppm
531BC156M250DGR Silicon振蕩器 Si531 156.25MHz 3.3V ±7ppm
531EC155M520DGR Silicon振蕩器 Si531 155.52MHz 2.5V ±7ppm
531EC156M250DGR Silicon振蕩器 Si531 156.25MHz 2.5V ±7ppm
531FC155M520DGR Silicon振蕩器 Si531 155.52MHz 2.5V ±7ppm
531FC156M250DGR Silicon振蕩器 Si531 156.25MHz 2.5V ±7ppm
531AC187M500DGR Silicon振蕩器 Si531 187.5MHz 3.3V ±7ppm
531BC187M500DGR Silicon振蕩器 Si531 187.5MHz 3.3V ±7ppm
531EC187M500DGR Silicon晶振 Si531 187.5MHz 2.5V ±7ppm
531FC187M500DGR Silicon振蕩器 Si531 187.5MHz 2.5V ±7ppm
531AC000110DGR Silicon振蕩器 Si531 148.35165MHz 3.3V ±7ppm
531AC148M500DGR Silicon振蕩器 Si531 148.5MHz 3.3V ±7ppm
531AC200M000DGR Silicon振蕩器 Si531 200MHz 3.3V ±7ppm
531BC000110DGR Silicon振蕩器 Si531 148.35165MHz 3.3V ±7ppm
531BC148M500DGR Silicon振蕩器 Si531 148.5MHz 3.3V ±7ppm
531BC200M000DGR Silicon振蕩器 Si531 200MHz 3.3V ±7ppm
531EC000110DGR Silicon振蕩器 Si531 148.35165MHz 2.5V ±7ppm
531EC148M500DGR Silicon振蕩器 Si531 148.5MHz 2.5V ±7ppm
531EC200M000DGR Silicon振蕩器 Si531 200MHz 2.5V ±7ppm
531FC000110DGR Silicon振蕩器 Si531 148.35165MHz 2.5V ±7ppm
531FC148M500DGR Silicon振蕩器 Si531 148.5MHz 2.5V ±7ppm
531FC200M000DGR Silicon振蕩器 Si531 200MHz 2.5V ±7ppm
531AC312M500DGR Silicon振蕩器 Si531 312.5MHz 3.3V ±7ppm
531BC312M500DGR Silicon振蕩器 Si531 312.5MHz 3.3V ±7ppm
531EC312M500DGR Silicon振蕩器 Si531 312.5MHz 2.5V ±7ppm
531FC312M500DGR Silicon振蕩器 Si531 312.5MHz 2.5V ±7ppm
531AC250M000DGR Silicon振蕩器 Si531 250MHz 3.3V ±7ppm
531AC311M040DGR Silicon振蕩器 Si531 311.04MHz 3.3V ±7ppm
531AC622M080DGR Silicon振蕩器 Si531 622.08MHz 3.3V ±7ppm
531BC250M000DGR Silicon振蕩器 Si531 250MHz 3.3V ±7ppm
531BC311M040DGR Silicon振蕩器 Si531 311.04MHz 3.3V ±7ppm
531BC622M080DGR Silicon振蕩器 Si531 622.08MHz 3.3V ±7ppm
531EC250M000DGR Silicon振蕩器 Si531 250MHz 2.5V ±7ppm
531EC311M040DGR Silicon振蕩器 Si531 311.04MHz 2.5V ±7ppm
531EC622M080DGR Silicon振蕩器 Si531 622.08MHz 2.5V ±7ppm
531FC250M000DGR Silicon振蕩器 Si531 250MHz 2.5V ±7ppm
531FC311M040DGR Silicon振蕩器 Si531 311.04MHz 2.5V ±7ppm
531FC622M080DGR Silicon振蕩器 Si531 622.08MHz 2.5V ±7ppm
531AA640M000BG Silicon振蕩器 Si531 640MHz 3.3V ±50ppm
