SX2CB,SX2CB-15K20E-52MHZ,2520mm,CMOS,FCD-Tech有源振蕩器,荷蘭進口晶振,四腳有源晶振,有源晶體振蕩器,SMD振蕩器,石英有源晶振,2520mm振蕩器,52MHZ有源晶振,CMOS輸出晶振,尺寸2.5x2.0mm,頻率52MHZ,輸出邏輯CMOS,低電壓晶振,超小型晶振,便攜式電子晶振,電信應用晶振,以太網晶振,多媒體設備晶振,導航定位晶振.
SX2CB,SX2CB-15K20E-52MHZ,2520mm,CMOS,FCD-Tech有源振蕩器特點:
超小型包裝,低電壓有源晶振
高沖擊和振動電阻率
應用：電信，便攜式電子等.
SX2CB,SX2CB-15K20E-52MHZ,2520mm,CMOS,FCD-Tech有源振蕩器 參數表
| Item | Specification | |||||||||
| Frequency Range | 52.0 MHz | |||||||||
| Output Logic | CMOS | |||||||||
| Overall Frequency Stability * | ± 20 ppm~± 100 ppm( see options ) | |||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | |||||||||
| -40 ~ +85°C industrial application (see options) | ||||||||||
| Supply VoltageVdd | +1.5V±5% | |||||||||
 Supply Current
|
5 mA max | |||||||||
| Output Level | VOH ≥ 0.9 Vdd | VOL ≤ 0.1 Vdd | ||||||||
| Output Load | 15 pF | |||||||||
| Symmetry | 40 / 55 % | |||||||||
 Rise Time / Fall
|
3~8 ns | |||||||||
| Tri-state function |
pin #1 = high or open pin #1 = low |
pin #3==>oscillation pin #3==>high impedance |
||||||||
| Start-up Time | 10 ms max. | |||||||||
|
RMS Jitter (12 kHz to 20 MHz band ) |
1 ps max. | |||||||||
 Packing Unit
|
||||||||||
 Soldering Condition
|
||||||||||

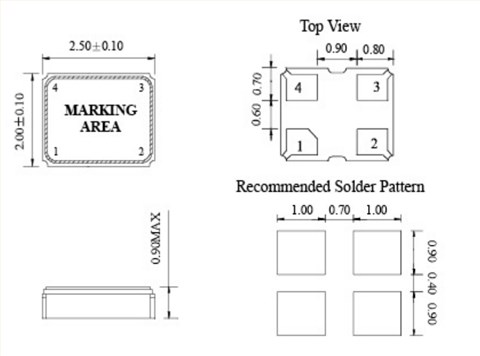

SX2CB,SX2CB-15K20E-52MHZ,2520mm,CMOS,FCD-Tech有源振蕩器尺寸圖
