CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ,荷蘭進口晶振,FCD-Tech有源晶振,有源晶體振蕩器,四腳有源晶振,石英有源晶振,OSC貼片晶振,52MHZ振蕩器,3225mm小體積晶振,尺寸3.2x2.5mm,頻率52MHZ,電壓1.8V,輸出CMOS,低電壓晶振,低相位晶振,低相噪晶振,無線局域網晶振,網絡晶振,移動通信晶振,智能家電晶振.
CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ特點:
超小型封裝SPXO晶振
提供工業級緊密溫度穩定性（+-10ppm-40/+85°C）
低相位噪聲
應用：無線局域網，家庭網絡，移動通信.
CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ 參數表
| Item | Specification | ||||||||||||||
| Frequency Range | 52.0 MHz | ||||||||||||||
| Output Logic | CMOS | ||||||||||||||
| Overall Frequency Stability * | ± 10 ppm~± 20 ppm (see options) | ||||||||||||||
| Operating Temperature Range | -40°C~+85°C | ||||||||||||||
| Supply Voltage Vdd | +1.8V±5%+2.5V±5%+2.8V±5% | +3.0V±5% | +3.3V±5% | ||||||||||||
| Supply Current Idd | 7 mA max. | ||||||||||||||
| Output Level | VOH ≥ 0.9 Vdd | VOL ≤ 0.1 Vdd | |||||||||||||
| Output Load | 15 pF | ||||||||||||||
| Symmetry | 45 / 55 % | ||||||||||||||
 Rise Time / Fall Time
|
3~8 ns | ||||||||||||||
| Tri-state function |
pin #1 = high or open pin #1 = low |
pin #3=oscillation pin #3=high impedance |
|||||||||||||
| Start-up Time | 10 ms max. | ||||||||||||||
|
RMS Jitter (12 kHz to 20 MHz band) |
1 ps max. | ||||||||||||||
 Phase Noise
|
|||||||||||||||
| Packing Unit | 3000pcs / reel | ||||||||||||||
| Soldering Condition | 260°C , 10 sec x2 max | ||||||||||||||

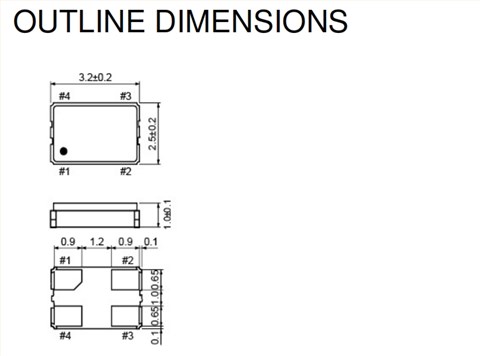

CMOS振蕩器,3225mm,SX3CG-18K10E-52MHz,FCD-Tech低相噪晶振,52MHZ尺寸圖
