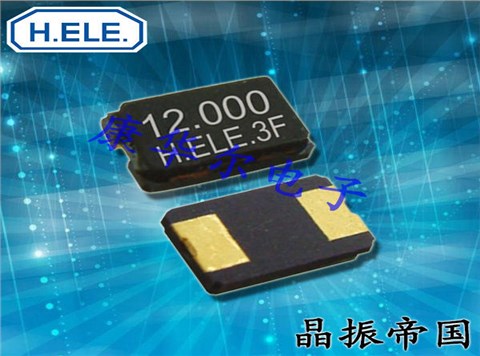

6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體，尺寸5.0x3.2mm，頻率25MHZ，HELE無源晶振，臺灣貼片晶振，5032mm貼片晶體，陶瓷諧振器，水晶振動子，兩腳貼片晶振，SMD無源晶振，綠色環保晶振，低功耗無源晶振，低損耗貼片晶振，高精度貼片晶振，高性能無源晶振，高品質貼片晶振，無線通信專用貼片晶振，智能手機專用晶振，可穿戴設備專用晶振，物聯網專用晶振，數碼相機專用晶振，視聽設備晶振，輕薄型晶振，產品具有高精度高品質的特點。
SMD晶振產品比較常用于無線通信應用，智能手機，可穿戴設備，物聯網，數碼相機，視聽設備等，還可以廣泛用于數字視頻，測試設備等領域.6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體.

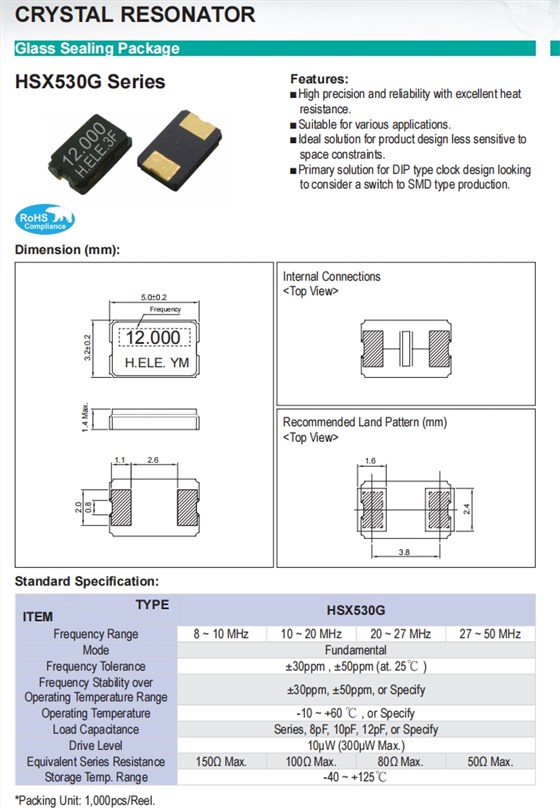

6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體參數表
|
TYPE ITEM |
HSX530G | |||||||||||||
| Frequency Range | 8 ~ 10 MHz | 10 ~ 20 MHz | 20 ~ 27 MHz | 27 ~ 50 MHz | ||||||||||
| Mode | Fundamental | |||||||||||||
| Frequency Tolerance | ±30ppm , ±50ppm (at. 25℃) | |||||||||||||
|
Frequency Stability over Operating Temperature Range |
±30ppm, ±50ppm, or Specify | |||||||||||||
| Operating Temperature | -10 ~ +60℃, or Specify | |||||||||||||
| Load Capacitance | Series, 8pF, 10pF, 12pF, or Specify | |||||||||||||
| Drive Level | 10μW (300μW Max.) | |||||||||||||
| Equivalent Series Resistance | 150Ω Max. | 100Ω Max. | 80Ω Max. | 50Ω Max. | ||||||||||
| Storage Temp. Range | -40 ~ +125℃ | |||||||||||||

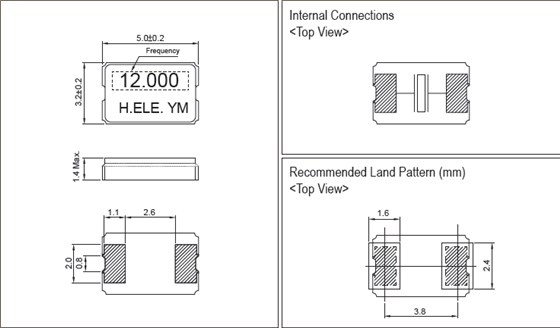

6G無線通信晶振,加高陶瓷晶振,XSHO25000FC1H-H,HSX530G無源晶體 尺寸圖
陶瓷晶體產品特性：
非常低的老化
優異的耐熱性和抗沖擊性
頻率范圍8MHz-50MHz（基本模式）
更多相關HELE加高晶振型號
| 編碼 | Series | 晶振廠家 | 描述 | 頻率 | 頻率穩定性 |
| X2C025000DZ1H-U | HSX211S | HELE加高晶振 | HSX211S/25MHZ/6PF/20PPM/20PPM@-3 | 25.000MHZ | ±20ppm |
| X2C032000BA1H-HZ | HSX211S | HELE加高晶振 | HSX211S/32MHZ/10PF/10PPM/15PPM@- | 32.000MHZ | ±15ppm |
| X2C024000DZ1H-HU | HSX211S | HELE加高晶振 | HSX211S/24MHZ/6PF/20PPM/20PPM@-3 | 24.000MHZ | ±20ppm |
| X2C016000B81H-R | HSX211S | HELE加高晶振 | HSX211S/16MHZ/8PF/10PPM/10PPM@-2 | 16.000MHZ | ±10ppm |
| X2C026000BC1H-Z | HSX211S | HELE加高晶振 | HSX211S/26MHZ/12PF/10PPM/10PPM@- | 26.000MHZ | ±10ppm |
| X2C048000L71HH-CEHZ | HSX211S | HELE加高晶振 | HSX211S/48MHZ/11.1PF/8PPM/14PPM/ | 48.000MHZ | ±14ppm |
| X12A040000BZ1H-HZ | HSX1210A | HELE加高晶振 | HSX1210A/40MHZ/6PF/10PPM/12PPM/- | 40.000MHZ | ±10ppm |
| X12A032000B81H-HZ | HSX1210A | HELE加高晶振 | HSX1210A/32MHZ/8PF/10PPM/10PPM/- | 32.000MHZ | ±10ppm |
| X2C048000L71HA-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS | 48.000MHZ | ±8ppm |
| X2C026000B91H-V | HSX211S | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS | 26.000MHZ | ±10ppm |
| X5H008000FC1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators 8MHz ±30ppm SMD-5032_2P RoHS | 8.000MHZ | ±30ppm |
| X5H027000DA1H-W | HSX530G | HELE加高晶振 | SMD Crystal Resonators 27MHz ±20ppm SMD-5032_2P RoHS | 27.000MHZ | ±20ppm |
| X5H01431AFK1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 14.31818MHZ | - |
| X5H025000FK1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 25.000MHZ | - |
| X5H008000FF1H | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD-5032-2P RoHS | 8.000MHZ | - |
| X5H012288FI1H | HSX530G | HELE加高晶振 | SMD Crystal Resonators 12.288MHz ±30ppm SMD-5032_2P RoHS | 12.288MHZ | ±30ppm |
| X5H008000IK1H-H | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 8.000MHZ | - |
| X2C024000BA1H | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 24.000MHZ | ±10ppm |
| X2C024000B71H-V | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | ±10ppm |
| X2C024000FA1H-X | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 30PPM |
| X2C016000B81H-HPU | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 16.000MHZ | 10PPM |
| X2C024000B91H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 10PPM |
| X2C037400BG1H-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 37.400MHZ | 10PPM |
| X2C027120FA1H-HV | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 27.120MHZ | ±30ppm |
| X2C040000B91HA-Z | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 40.000MHZ | 10PPM |
| X2C016000B91H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 16.000MHZ | 10PPM |
| X2C032000BA1HA-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2C048000L71H-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±8ppm |
| X2C032000BC1H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2C038400BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 38.400MHZ | 10PPM |
| X2C032000B81H-HS | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | ±10ppm |
| X1H008000DC1H-U | HSX531S | HELE加高晶振 | SMD Crystal Resonators 8MHz ±20ppm SMD_5032-4P RoHS | 8.000MHZ | ±20ppm |
| X2C026000B71H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS | 26.000MHZ | ±10ppm |
| X2C048000BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±10ppm |
| X2CO48000B71H-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO48000R71HA-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO40000BD1H-HZ | HSX211S-AU | HELE加高晶振 | 40.000MHZ | ||
| X2CO27120FC1H-HX | HSX211S-AU | HELE加高晶振 | 27.120MHZ | ||
| XSHO25000FC1H-H | HSX530G | HELE加高晶振 | 25.000MHZ | ||
| XSHO12000FG1H-X | HSX530G | HELE加高晶振 | 12.000MHZ | ||
| X5H024576FI1HA-X | HSX530G | HELE加高晶振 | 24.576MHZ | ||
| X1H01431AFK1H-HX | HSX531S | HELE加高晶振 | 14.31818MHZ | 30PPM | |
| X6S007600BI1H-X | HSX631S | HELE加高晶振 | 7.6.000MHZ | 10PPM | |
| X1H024576DK1H-X | HSX531S | HELE加高晶振 | 24.576MHZ | ||
| X1H012000BC1H-X | HSX531S | HELE加高晶振 | 12.000MHZ | ||
| X5H048000FQ1H-X | HSX530G | HELE加高晶振 | 48.000MHZ | ||
| X1H022118DW1H | HSX531S | HELE加高晶振 | 22.1184MHZ | ||
| X2C016000BC1H-Z | HSX211S | HELE加高晶振 | 16.000MHZ | ±10PPM | |
| X2C025000BC1H-U | HSX211S | HELE加高晶振 | 25.000MHZ | ±10ppm | |
| X2C037400BG1HA-U | HSX211S | HELE加高晶振 | 37.4.000MHZ | ±10ppm |
