ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振

產品簡介

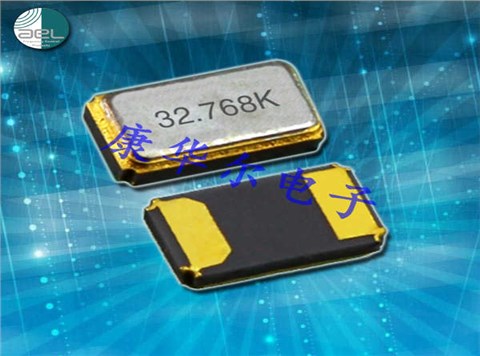

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振，英國進口晶振，AEL艾爾晶振，型號：ELS06系列，編碼為：ELS06-32.768kHz-9-T，頻率：32.768KHz，負載電容：9pF，工作溫度范圍：-40℃至+85℃，精度：±20ppm，小體積晶振尺寸：2.0x1.2x0.6mm，音叉表晶，兩腳貼片晶振，石英晶振，無源晶振，SMD晶振，石英晶體諧振器。具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點，應用于：移動通訊晶振，無線網絡晶振，智能儀表晶振，可穿戴設備晶振，鐘表電子晶振，數字顯示等應用。

產品詳情

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振，產品特點：

•SMD音叉石英晶體
•公差：±20ppm，±10ppm可用
•工作溫度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

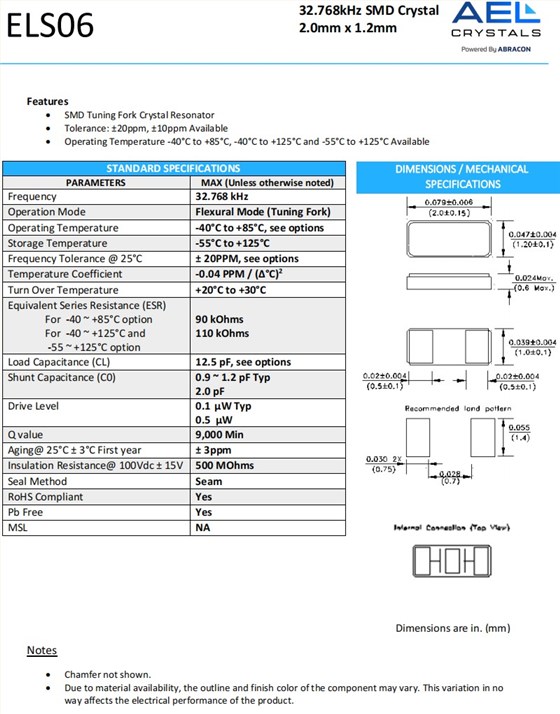

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振,參數表

PARAMETERS			MAX (Unless otherwise noted)
Frequency			32.768 kHz
Operation Mode			Flexural Mode (Tuning Fork)
Operating Temperature			-40°C to +85°C, see options
Storage Temperature			-55°C to +125°C
Frequency Tolerance @ 25°C			± 20PPM, see options
Temperature Coefficient			-0.04 PPM / (?°C)2
Turn Over Temperature			+20°C to +30°C
Equivalent Series Resistance (ESR) For -40 ~ +85°C option For -40 ~ +125°C and -55 ~ +125°C option			90 kOhms 110 kOhms
Load Capacitance (CL)			12.5 pF, see options
Shunt Capacitance (C0)			0.9 ~ 1.2 pF Typ 2.0 pF
Drive Level			0.1 μW Typ 0.5 μW
Q value			9,000 Min
Aging@ 25°C ± 3°C First year			± 3ppm
Insulation Resistance@ 100Vdc ± 15V			500 MOhms
Seal Method			Seam
RoHS Compliant			Yes
Pb Free			Yes
MSL			NA

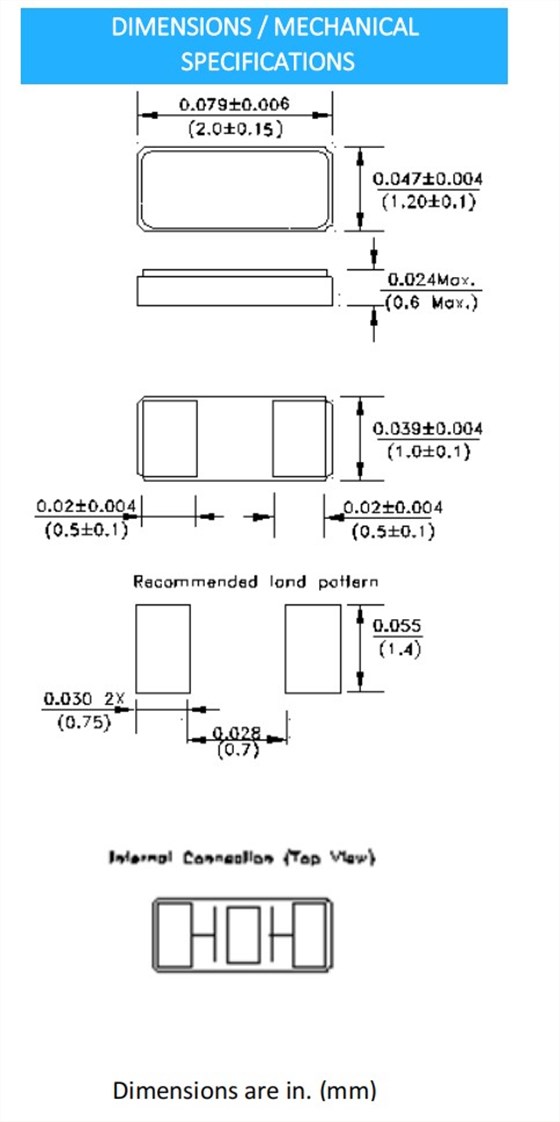

ELS06-32.768kHz-9-T,ELS06,32.768KHz,2012mm,AEL鐘表電子晶振,尺寸圖
