全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 TXC晶振

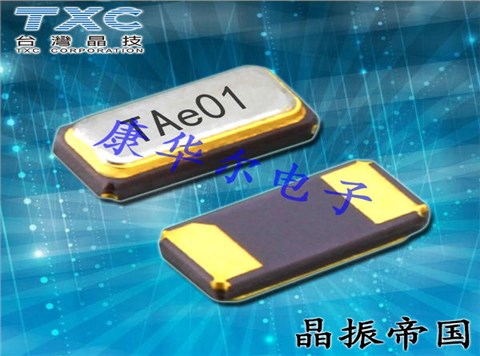

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體

產品簡介

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體，臺灣TXC晶振，晶技晶振，型號：9HT9系列，編碼為：9HT9-32.768KDZF-T，負載電容：12.5pF，精度：±20ppm，頻率為：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：4.1x1.5mm封裝，音叉表晶，兩腳貼片晶振，石英晶體，SMD晶振，手表晶體，無源晶振，4115mm晶振，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。被廣泛應用于：無線應用晶振、移動通信晶振，無線局域網，鐘表電子晶振，電腦主板晶振，智能家居晶振，數字顯示晶振，智能手機設備，電話機等應用。

產品詳情

1

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體，臺灣TXC晶振，晶技晶振，型號：9HT9系列，編碼為：9HT9-32.768KDZF-T，負載電容：12.5pF，精度：±20ppm，頻率為：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：4.1x1.5mm封裝，音叉表晶，兩腳貼片晶振，石英晶體，SMD晶振，手表晶體，無源晶振，4115mm晶振，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。被廣泛應用于：無線應用晶振、移動通信晶振，無線局域網，鐘表電子晶振，電腦主板晶振，智能家居晶振，數字顯示晶振，智能手機設備，電話機等應用。

2

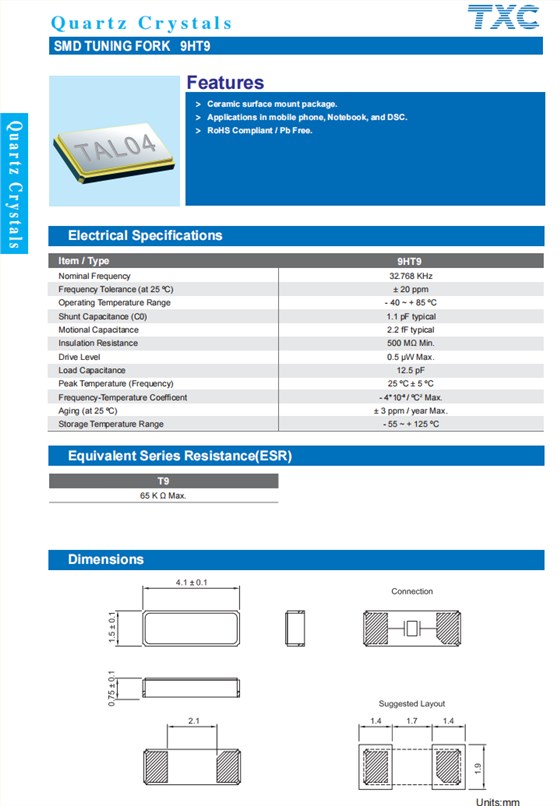

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體,參數表

Item / Type 9HT9
Nominal Frequency 32.768 KHz
Frequency Tolerance (at 25 ℃) ± 20 ppm
Operating Temperature Range - 40 ~ + 85 ℃
Shunt Capacitance (C0) 1.1 pF typical
Motional Capacitance 2.2 fF typical
Insulation Resistance 500 MΩ Min.
Drive Level 0.5 μW Max.
Load Capacitance 12.5 pF
Peak Temperature (Frequency) 25 ℃ ± 5 ℃
Frequency-Temperature Coefficent - 4*10-8 / ℃2Max.
Aging (at 25 ℃) ± 3 ppm / year Max.
Storage Temperature Range - 55 ~ + 125 ℃

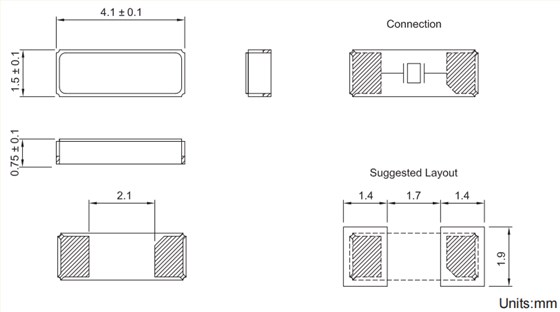

39HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體,尺寸圖

9HT9尺寸

9HT9規格

原廠編碼 晶振廠家 型號 頻率 工作溫度
9HT7-32.768KDZF-T TXC晶振 9HT7 32.768kHz -40°C ~ 85°C
9HT10-32.768KBZF-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KDZF-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KEZF-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT11-32.768KDZF-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KDZC-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KEZC-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT10-32.768KAZF-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
AH-32.768KDZF-T TXC晶振 AH 32.768kHz -40°C ~ 85°C
9HT7-32.768KBZF-T TXC晶振 9HT7 32.768kHz -40°C ~ 85°C
AH-32.768KDZB-T TXC晶振 AH 32.768kHz -40°C ~ 85°C
9HT10-32.768KBZB-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT7-32.768KAZY-T TXC晶振 9HT7 32.768kHz -40°C ~ 85°C
9HT10-32.768KBZC-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KBZY-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KAZB-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KAZC-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KAZY-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KDZB-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KDZY-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9HT10-32.768KDZC-T TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
AH-32.768KBZF-T TXC晶振 AH 32.768kHz -40°C ~ 85°C
9HT11-32.768KBZY-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KBZF-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KBZC-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KBZB-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KAZB-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KAZC-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KAZY-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
AH-32.768KDZY-T TXC晶振 AH 32.768kHz -40°C ~ 85°C
AH-32.768KDZC-T TXC晶振 AH 32.768kHz -40°C ~ 85°C
9HT11-32.768KDZB-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KDZY-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT12-32.768KBZF-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT12-32.768KBZY-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT12-32.768KBZC-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT12-32.768KAZF-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT12-32.768KAZY-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT12-32.768KAZC-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT12-32.768KDZF-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT12-32.768KDZY-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT12-32.768KDZC-T TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT7-32.768KBZY-T TXC晶振 9HT7 32.768kHz -40°C ~ 85°C
9HT7-32.768KDZY-T TXC晶振 9HT7 32.768kHz -40°C ~ 85°C
9HT7-32.768KAZF-T TXC晶振 9HT7 32.768kHz -40°C ~ 85°C
9H03200413 TXC晶振 9HT7 32.768kHz -40°C ~ 85°C
9H03270036 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03200019 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03200031 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03200042 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03220005 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03220008 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03220009 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03270011 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03270040 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03270052 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03270059 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03277003 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03277005 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03200036 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03200021 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03200034 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03200022 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03200033 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03270024 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
9H03270042 TXC晶振 9HT10 32.768kHz -40°C ~ 85°C
AH-32.768KAZF-T TXC晶振 AH 32.768kHz -40°C ~ 85°C
9HT11-32.768KAZF-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9HT11-32.768KEZF-T TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
AH03200003 TXC晶振 AH 32.768kHz -40°C ~ 85°C
AH03270003 TXC晶振 AH 32.768kHz -40°C ~ 85°C
AH03270004 TXC晶振 AH 32.768kHz -40°C ~ 125°C
9H03200012 TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9H03270022 TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9H03270030 TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9H03200010 TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9H03270033 TXC晶振 9HT11 32.768kHz -40°C ~ 85°C
9H03200030 TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9H03270047 TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9H03270049 TXC晶振 9HT12 32.768kHz -40°C ~ 85°C
9HT9-32.768KDZF-T TXC晶振 9HT9 32.768kHz -40°C ~ 85°C
9HT9-32.768KBZF-T TXC晶振 9HT9 32.768kHz -40°C ~ 85°C
9HT9-32.768KAZF-T TXC晶振 9HT9 32.768kHz -40°C ~ 85°C
