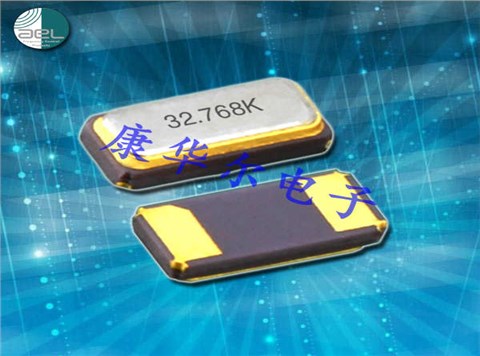

ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振

產品簡介

ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振，英國進口晶振，AEL艾爾晶振，型號：ELS07系列，編碼為：ELS07-32.768kHz-T，頻率：32.768KHz時鐘晶振，負載電容：12.5pF，精度：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.75mm，兩腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，SMD石英晶體。具有超小型晶振，輕薄型晶振，高品質晶振，耐熱及耐環境特點。應用于：移動通訊晶振，鐘表晶振，無線藍牙晶振，儀器設備晶振，數字顯示等應用。

產品詳情

ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振，產品特點：

•SMD音叉晶體諧振器，3215晶振
•公差：±20ppm，±10ppm可用
•工作溫度-40°C至+85°C、-40°C到+125°C和-55°C到+125°C可用

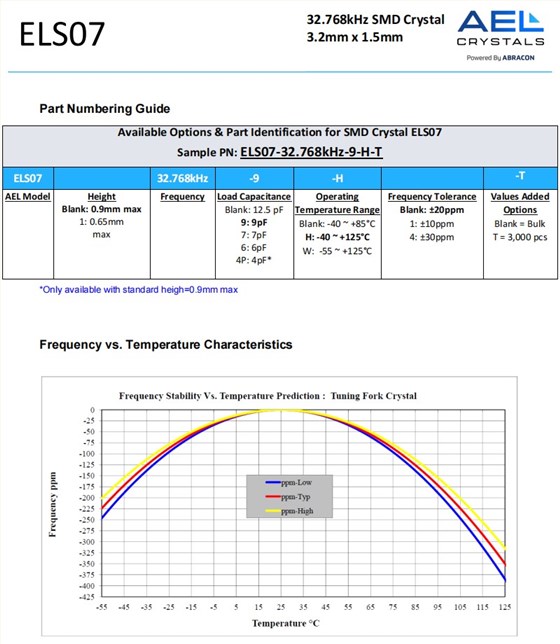

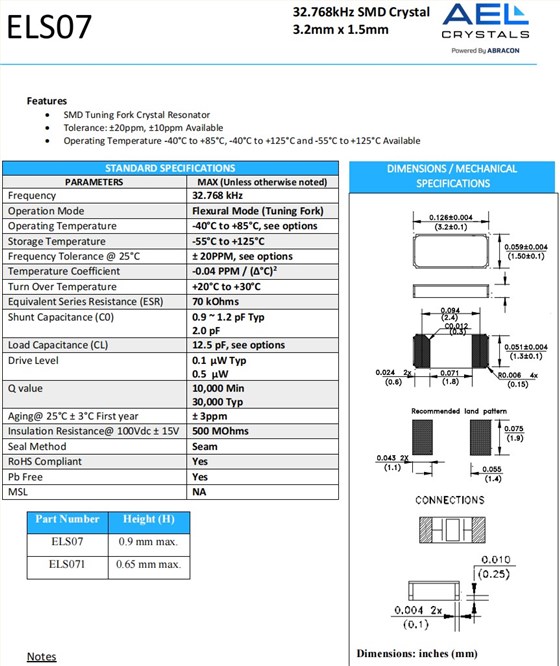

ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振,參數表

PARAMETERS						MAX (Unless otherwise noted)
Frequency						32.768 kHz
Operation Mode						Flexural Mode (Tuning Fork)
Operating Temperature						-40°C to +85°C, see options
Storage Temperature						-55°C to +125°C
Frequency Tolerance @ 25°C						± 20PPM, see options
Temperature Coefficient						-0.04 PPM / (△°C)2

Turn Over Temperature						+20°C to +30°C
Equivalent Series Resistance (ESR)						70 kOhms
Shunt Capacitance (C0)						0.9 ~ 1.2 pF Typ 2.0 pF
Load Capacitance (CL)						12.5 pF, see options
Drive Level						0.1 μW Typ 0.5 μW
Q value						10,000 Min 30,000 Typ
Aging@ 25°C ± 3°C First year						± 3ppm

Insulation Resistance@ 100Vdc ± 15V						500 MOhms
Seal Method						Seam
RoHS Compliant						Yes
Pb Free						Yes
MSL						NA

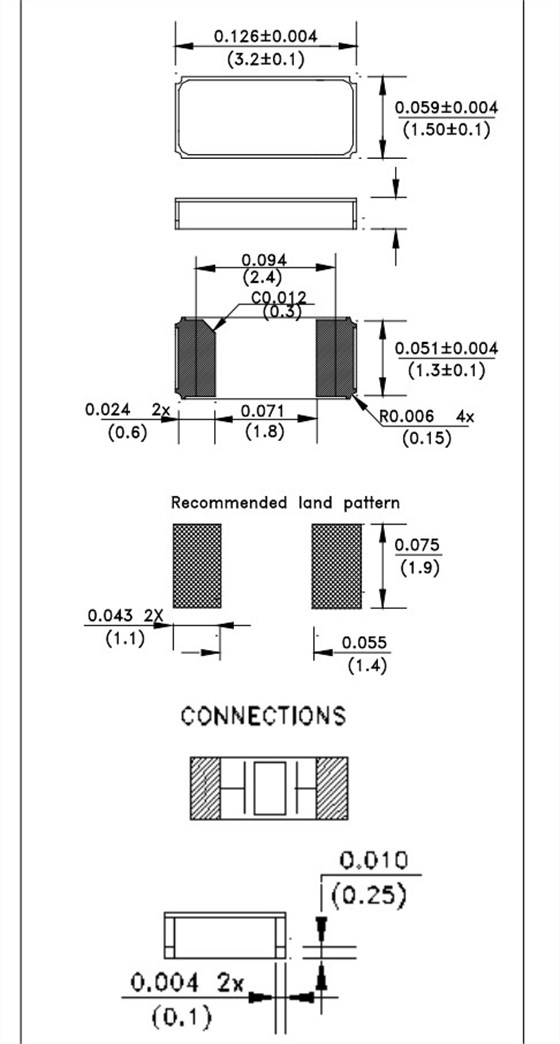

ELS07-32.768kHz-T,3215mm,ELS07,32.768KHz,AEL時鐘晶振,尺寸圖

產品編碼	晶振廠家	型號	頻率	負載電容	長度	寬度	高度
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	ELLS	10 MHz	20 pF	12.3mm	4.6mm	4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	ELLS	12 MHz	18 pF	12.3mm	4.6mm	4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	ELLS	13.56 MHz	10 pF	12.3mm	4.6mm	4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	ELLS	30 MHz	10 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-A4-F-T	AEL晶振	ELLS	4 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	ELLS	4 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	ELLS	4 MHz	30 pF	12.3mm	4.6mm	4.3mm
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	ELLS	8 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	ELM10	16 MHz	8 pF	2.5mm	2mm	0.5mm
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	ELM10	24 MHz	16 pF	2.5mm	2mm	0.5mm
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	ELM11	32 MHz	10 pF	2mm	1.6mm	0.5mm
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	24 MHz	6 pF	1.6mm	1.2mm	0.4mm
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	ELM3	12 MHz	30 pF	5mm	3.2mm	1mm
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	ELM3	14 MHz	30 pF	5mm	3.2mm	1mm
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	ELM3	24 MHz	18 pF	5mm	3.2mm	1mm
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	ELM3	8.057 MHz	18 pF	5mm	3.2mm	1mm
ELM8-12.000MHz-10-R50-D4Y-T	AEL晶振	ELM8	12 MHz	10 pF	3mm	2.5mm	0.6mm
ELM8-12.5829MHz-16-R60-1U-T	AEL晶振	ELM8	12.5829 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-14.000MHz-16-R150-B1U-T	AEL晶振	ELM8	14.8 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-18.432MHz-16-R80-DQ-T	AEL晶振	ELM8	18.432 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-10-R60-D1W-T	石英晶振	ELM8	24 MHz	10 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-18-R60-B1W-T	AEL晶振	ELM8	24 MHz	18 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-9-R40-N1U-T	AEL晶振	ELM8	24 MHz	9 pF	3mm	2.5mm	0.6mm
ELM8-26.000MHz-18-R60-B1U-T	AEL晶振	ELM8	26 MHz	18 pF	3mm	2.5mm	0.6mm
ELM8-32.000MHz-16-R40-B1U-T	AEL晶振	ELM8	32 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-32.000MHz-9-R40-D1G-T	AEL晶振	ELM8	32 MHz	9 pF	3mm	2.5mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	ELS05	32.768 kHz	9 pF	1.6mm	1mm	0.5mm
ELS06-32.768kHz-9-T	AEL晶振	ELS06	32.768 kHz	9 pF	2mm	1.2mm	0.6mm
ELS07-32.768kHz-6-T	AEL晶振	ELS07	32.768 kHz	6 pF	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	ELS07	32.768 kHz	12.5 pF	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	ELS13	32.768 kHz	7 pF	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	ELS13	32.768 kHz	9 pF	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	ELS13	32.768 kHz	12.5 pF	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	ELS25	32.768 kHz	6 pF	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	ELS25	32.768 kHz	12.5 pF	8mm	3.8mm	2.4mm
