當前位置：首頁 » 歐美晶振 » QuartzChnik晶振 » Quarztechnik手機晶振,QTC2045.0000FBT3I30R,車載控制器晶振

prevnext

Quarztechnik手機晶振,QTC2045.0000FBT3I30R,車載控制器晶振

頻率：45.000MHz

尺寸：2.0x1.6x0.5mm

Quarztechnik手機晶振,QTC2045.0000FBT3I30R,車載控制器晶振，德國進口晶振，Quarztechnik晶振，夸克晶振，型號：QTC20，編碼為：QTC2045.0000FBT3I30R，頻率為：45.000MHz，小體積晶振尺寸：2.0x1.6x0.5mm超小型封裝，無源晶振，四腳貼片晶振，石英晶振，2016晶振，石英晶體諧振器，SMD晶振，帶金屬蓋的接縫密封陶瓷包裝，確保高精度和可靠性。具有超小型，輕薄型，高精度，高性能，高品質，高質量，耐熱及耐環境特點。適用于：薄型設備，高密度應用，手機晶振，汽車電子晶振，調制解調器、通信和測試設備，MCIA，無線應用，汽車應用，通訊設備，無線網絡，智能家居等。

訂購熱線：86-0755-27838351

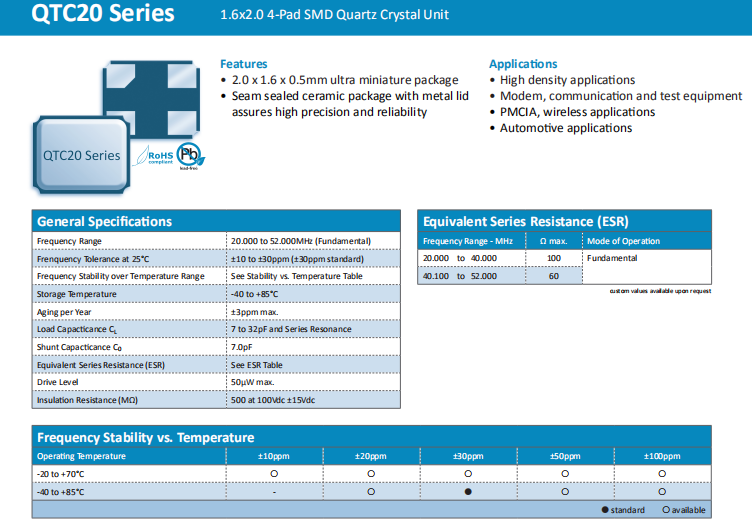

Quarztechnik手機晶振,QTC2045.0000FBT3I30R,車載控制器晶振,參數表

Frequency Range	45.000MHz
Frenquency Tolerance at 25°C	±10 to ±30ppm (±30ppm standard)
Frequency Stability over Temperature Range	See Stability vs. Temperature Table
Storage Temperature	-40 to +85°C
Aging per Year	±3ppm max.
Load Capacticance CL	7 to 32pF and Series Resonance
Shunt Capacticance C0	7.0pF
Equivalent Series Resistance (ESR)	See ESR Table
Drive Level	50μW max.
Insulation Resistance (MΩ)	500 at 100Vdc ±15Vdc

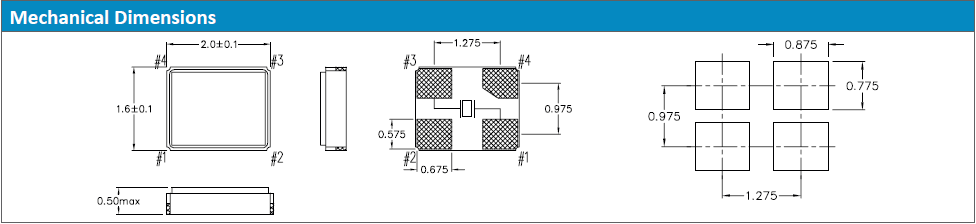

Quarztechnik手機晶振,QTC2045.0000FBT3I30R,車載控制器晶振,尺寸圖

Quarztechnik手機晶振,QTC2045.0000FBT3I30R,車載控制器晶振

產品特點：

尺寸：2.0x1.6x0.5mm超小型封裝

頻率范圍：20MHz~52MHz進口貼片晶振
帶金屬蓋的接縫密封陶瓷包裝
確保高精度和可靠性
應用程序
高密度應用
調制解調器、通信和測試設備
PMCIA，無線應用
汽車應用

石英晶振	頻率	負載電容	精度	穩定性	工作溫度范圍
QTC7A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A10.0000FDT1I20M	10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.31818FDT1I20M	14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A19.6608FDT1I20M	19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A24.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC7A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A11.0592FDT1I20M	11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A14.7456FDT1I20M	14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A20.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A24.0000FDT1I20M	24.0 MHz夸克晶振	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC6A32.0000FDT1I20M	32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A8.00000FDT1I20M	8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.0000FDT1I20M	12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A12.2880FDT1I20M	12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A15.3600FDT1I20M	15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A16.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A18.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A20.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A24.5760FDT1I20M	24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A25.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A27.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A30.0000FDT1I20M	30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A40.0000FDT1I20M	40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC5A48.0000FDT1I20M	48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3216.0000FDT1I20M	16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3218.4320FDT1I20M	18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3220.0000FDT1I20M	20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3224.0000FDT1I20M	24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3225.0000FDT1I20M	25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C
QTC3227.0000FDT1I20M	27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C

Quarztechnik手機晶振 QTC2045.0000FBT3I30R 車載控制器晶振
