ZM200,ZM200‐12.5‐32.768,8038mm,FCD-Tech水晶振動子，尺寸8.0x3.8mm，頻率32.768KHZ，8038mm高質量晶振，無源貼片晶振，無源晶振，環保型晶振，四腳貼片晶振，32.768KHZ時鐘晶振，音叉晶體，貼片諧振器，薄型晶振，高性能晶振，32.768K晶振，高質量晶振，低損耗晶振低功耗晶振，低老化晶振，消費電子專用晶振，微處理器晶振，時鐘應用晶振，無線設備晶振，數字電表晶振，數碼相機晶振，具有高質量高性能的特點。
SMD晶振產品超級適合用于消費電子專用晶振，微處理器，時鐘應用，無線設備，數字電表，數碼相機等應用。ZM200,ZM200‐12.5‐32.768,8038mm,FCD-Tech水晶振動子.

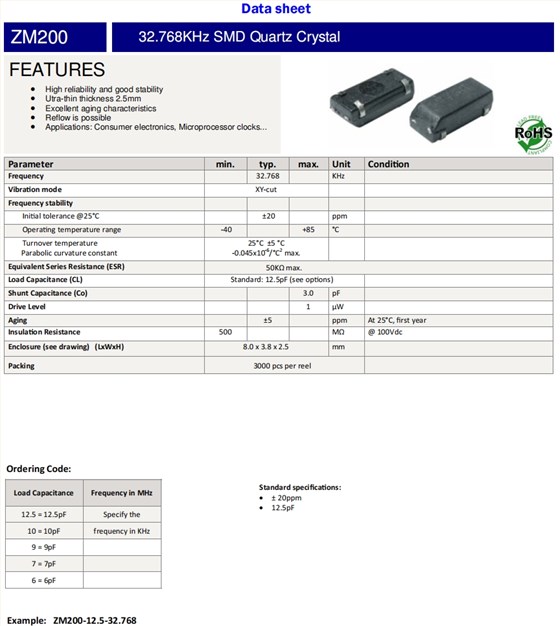

ZM200,ZM200‐12.5‐32.768,8038mm,FCD-Tech水晶振動子 參數表
| Parameter | min. | typ. | max. | Unit | Condi?on | ||||||||
| Frequency | 32.768 | KHz | |||||||||||
| Vibra?on mode | XY‐cut | ||||||||||||
| Frequency stability | |||||||||||||
| Ini?al tolerance @25°C | ±20 | ppm | |||||||||||
| Opera?ng temperature range | ‐40 | +85 | °C | ||||||||||
|
Turnover temperature Parabolic curvature constant |
25°C±5 °C ‐0.045x10‐6/°C2max. |
||||||||||||
| Equivalent Series Resistance (ESR) | 50K? max. | ||||||||||||
| Load Capacitance (CL) | Standard: 12.5pF (see op?ons) | ||||||||||||
| Shunt Capacitance (Co) | 3.0 | pF | |||||||||||
| Drive Level | 1 | µW | |||||||||||
| Aging | ±5 | ppm | At 25°C, ?rst year | ||||||||||
| Insula?on Resistance | 500 | M? | @ 100Vdc | ||||||||||
| Enclosure (see drawing)(LxWxH) | 8.0 x 3.8 x 2.5 | mm | |||||||||||
| Packing | 3000 pcs per reel | ||||||||||||

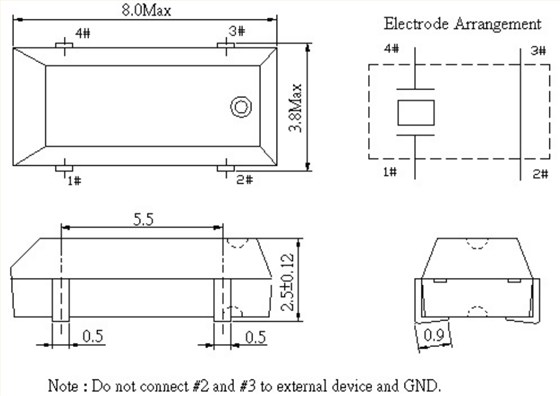

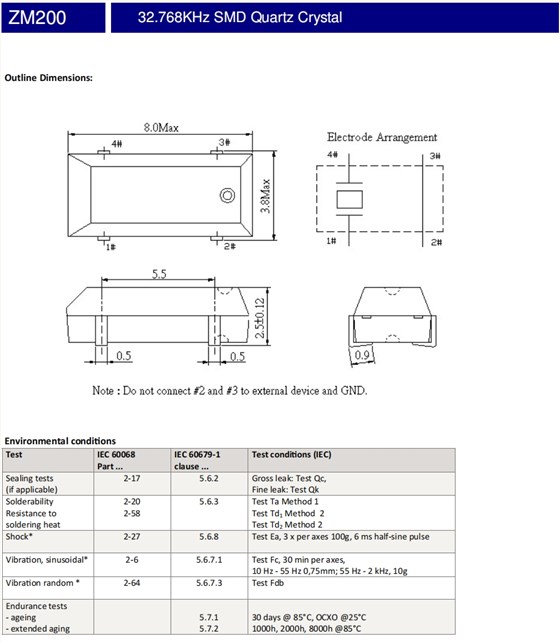

ZM200,ZM200‐12.5‐32.768,8038mm,FCD-Tech水晶振動子尺寸圖
ZM200,ZM200‐12.5‐32.768,8038mm,FCD-Tech水晶振動子
32.768K產品特點：
可靠性高，穩定性好
薄厚度2.5mm
優異的老化特性
回流是可能的
