EB2532JA12-12.288M TR,Ecliptek無源晶振,3225mm,汽車級石英晶體，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：EB2532系列，編碼為：EB2532JA12-12.288M TR，頻率：12.288MHz，頻率穩定性：±30ppm，頻率容差：±15ppm，負載電容：12pF，小體積貼片晶振尺寸：3.2x2.5mm封裝，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，汽車級石英晶體，3225晶振，SMD晶振，工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境等特點。應用于：汽車電子晶振，車載控制器晶振，無線藍牙，安防設備，智能手機，數碼電子等。

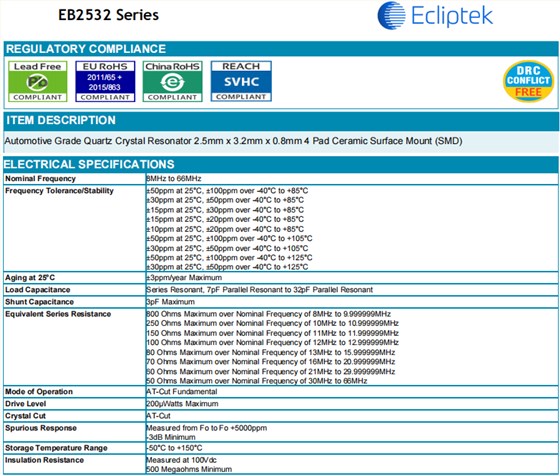

EB2532JA12-12.288M TR,Ecliptek無源晶振,3225mm,汽車級石英晶體,參數表
品牌
Ecliptek日蝕晶振
型號
EB2532
物料編碼
EB2532JA12-12.288M TR
頻率
12.288MHz
頻率穩定性
±30ppm
頻率容差
±15ppm
負載電容
12pF
工作溫度
-40°C ~ 85°C
尺寸
3.2x2.5mm

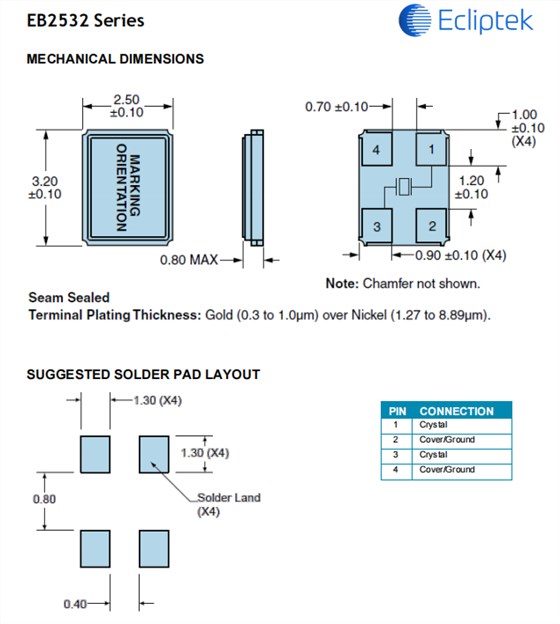

EB2532JA12-12.288M TR,Ecliptek無源晶振,3225mm,汽車級石英晶體,尺寸圖
| 產品編碼 | 品牌 | 描述 | 系列 |
| EB2532JA12-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-24.000M TR | Ecliptek晶振 | CRYSTAL 24.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-40.000M TR | Ecliptek晶振 | CRYSTAL 40.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-30.000M TR | Ecliptek晶振 | CRYSTAL 30.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-28.63636M TR | Ecliptek晶振 | CRYSTAL 28.63636MHZ 12PF SMD | EB2532 |
| EB2532YA12-12.000M TR | 3225晶振 | CRYSTAL 12.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-18.432M TR | Ecliptek晶振 | CRYSTAL 18.4320MHZ 12PF SMD | EB2532 |
| EB2532JA12-13.560M TR | Ecliptek晶振 | CRYSTAL 13.5600MHZ 12PF SMD | EB2532 |
| EB2532JA12-40.000M TR | Ecliptek晶振 | CRYSTAL 40.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-20.000M TR | Ecliptek晶振 | CRYSTAL 20.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-12.288M TR | Ecliptek晶振 | CRYSTAL 12.2880MHZ 12PF SMD | EB2532 |
| EB2532JA12-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-20.000M TR | Ecliptek晶振 | CRYSTAL 20.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-27.000M TR | Ecliptek晶振 | CRYSTAL 27.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-18.432M TR | Ecliptek晶振 | CRYSTAL 18.4320MHZ 12PF SMD | EB2532 |
| EB2532JA12-24.576M TR | Ecliptek晶振 | CRYSTAL 24.5760MHZ 12PF SMD | EB2532 |
| EB2532JA12-26.000M TR | Ecliptek晶振 | CRYSTAL 26.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-12.000M TR | Ecliptek晶振 | CRYSTAL 12.0000MHZ 12PF SMD | EB2532 |
| EB2532JA12-16.000M TR | Ecliptek晶振 | CRYSTAL 16.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-32.000M TR | Ecliptek晶振 | CRYSTAL 32.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-30.000M TR | Ecliptek晶振 | CRYSTAL 30.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-13.560M TR | Ecliptek晶振 | CRYSTAL 13.5600MHZ 12PF SMD | EB2532 |
| EB2532YA12-24.576M TR | Ecliptek晶振 | CRYSTAL 24.5760MHZ 12PF SMD | EB2532 |
| EB2532YA12-25.000M TR | Ecliptek晶振 | CRYSTAL 25.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-12.288M TR | Ecliptek晶振 | CRYSTAL 12.2880MHZ 12PF SMD | EB2532 |
| EB2532YA12-27.000M TR | Ecliptek晶振 | CRYSTAL 27.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-26.000M TR | Ecliptek晶振 | CRYSTAL 26.0000MHZ 12PF SMD | EB2532 |
| EB2532YA12-28.63636M TR | Ecliptek晶振 | CRYSTAL 28.63636MHZ 12PF SMD | EB2532 |
