全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 SUNTSU晶振

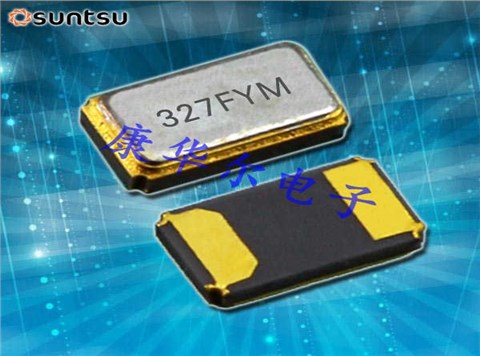

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ

產品簡介

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ，尺寸1.6x1.0mm，頻率32.768KHZ，Suntsu小封裝晶振，32.768KHZ音叉晶體，歐美無源晶體，1610mm高性能晶振，32.768K晶振，無源貼片晶振，無源晶振，石英SMD晶體，低功耗晶振，低耗能晶振，低損耗晶振，低老化晶振，高品質晶振，實時時鐘晶振，小家電晶振，智能手表晶振，藍牙耳機晶振，小型設備晶振，測試測量晶振，儀器儀表晶振，無線通信晶振，具備超高的耐壓性能，32.768K時鐘晶振產品被廣泛應用各個領域之中，特別適合用于實時時鐘，小家電，智能手表，藍牙耳機，小型設備，測試測量，儀器儀表，無線通信等應用。松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ.

產品詳情

1

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ，尺寸1.6x1.0mm，頻率32.768KHZ，Suntsu小封裝晶振，32.768KHZ音叉晶體，歐美無源晶體，1610mm高性能晶振，32.768K晶振，無源貼片晶振，無源晶振，石英SMD晶體，低功耗晶振，低耗能晶振，低損耗晶振，低老化晶振，高品質晶振，實時時鐘晶振，小家電晶振，智能手表晶振，藍牙耳機晶振，小型設備晶振，測試測量晶振，儀器儀表晶振，無線通信晶振，具備超高的耐壓性能，32.768K時鐘晶振產品被廣泛應用各個領域之中，特別適合用于實時時鐘，小家電，智能手表，藍牙耳機，小型設備，測試測量，儀器儀表，無線通信等應用。松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ.2

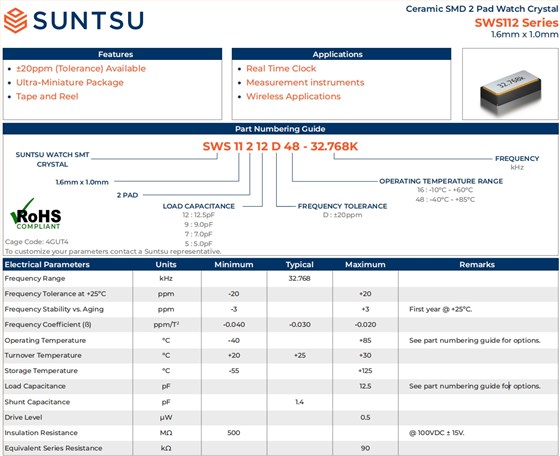

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ 參數表

Electrical Parameters Units Minimum Typical Maximum Remarks
Frequency Range kHz 32.768
Frequency Tolerance at +25ºC ppm -20 +20
Frequency Stability vs. Aging ppm -3 +3 First year @ +25ºC.
Frequency Coefficient (?) ppm/T2 -0.040 -0.030 -0.020
Operating Temperature °C -40 +85 See part numbering guide for options.
Turnover Temperature °C +20 +25 +30
Storage Temperature °C -55 +125
Load Capacitance pF 12.5 See part numbering guide for options.
Shunt Capacitance pF 1.4
Drive Level µW 0.5
Insulation Resistance M? 500 @ 100VDC ± 15V.
Equivalent Series Resistance k? 90
3

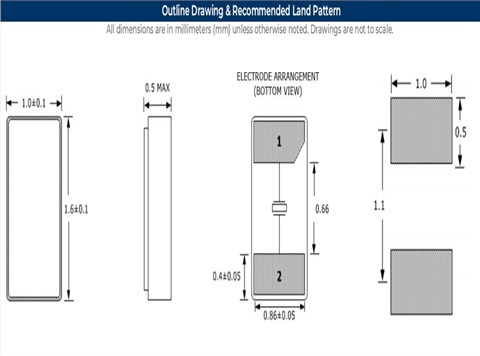

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ尺寸圖

SWS112

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ

32.768K晶振產品特點：

±20ppm（公差）可用

超小型封裝

磁帶和卷軸


SWS112 1SWS112

Part Number Package Size Load Cap. Freq. Tolerance Operating Temp. Frequency
SWS11212D16-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS11212D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS1127D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS1129D16-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS1129D48-32.768K 1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS14412D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS14412D48B-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS1446D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS1446D48B-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS1449D48A-32.768K 10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS21212D48-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS2129F48-32.768K 2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±10ppm -40℃ - +85℃ 32.768K
SWS31212D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS31212D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS3126D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 6pF ±20ppm -10℃ - +60℃ 32.768K
SWS3126D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS3127D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS3127D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS3129D16-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS3129D48-32.768K 3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
SWS41212D16-32.768K 4.1X1.5 CERAMIC SMD晶振 (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS41212D48-32.768K 4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS51212D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS5127D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS5129D16-32.768K 4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS61412D48-32.768K 6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS83412D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -10℃ - +60℃ 32.768K
SWS83412D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 12.5pF ±20ppm -40℃ - +85℃ 32.768K
SWS8346D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -10℃ - +60℃ 32.768K
SWS8346D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 6pF ±20ppm -40℃ - +85℃ 32.768K
SWS8347D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 7pF ±20ppm -10℃ - +60℃ 32.768K
SWS8347D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 7pF ±20ppm -40℃ - +85℃ 32.768K
SWS8349D16-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -10℃ - +60℃ 32.768K
SWS8349D48-32.768K 8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal 9pF ±20ppm -40℃ - +85℃ 32.768K
5
