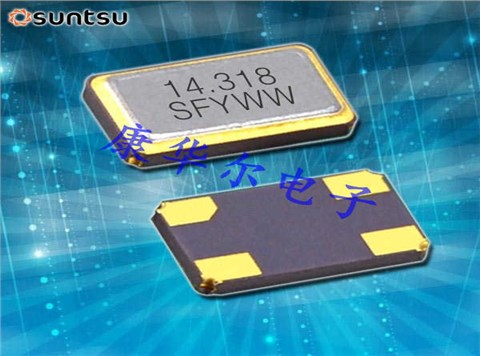

SXT53410AB17-25.000M,SUNTSU無線應用晶振,5032mm無源晶振

產品簡介

SXT53410AB17-25.000M,SUNTSU無線應用晶振,5032mm無源晶振，美國進口晶振，Suntsu晶振，松圖晶振，型號：SXT534諧振器，編碼為：SXT53410AB17-25.000M貼片晶振，頻率為：25.000MHz，負載電容：10pF，頻率穩定性：±50ppm，頻率容差：±30ppm，工作溫度范圍：-10℃至+70℃，小體積晶振尺寸：5.0x3.2mm，四腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，SMD石英晶體，5032晶振。具有超小型晶振，輕薄型晶振，高性能晶振，高品質等特點。應用于：通信和測試設備，PCMCIA，無線應用程序，高密度應用。

產品詳情

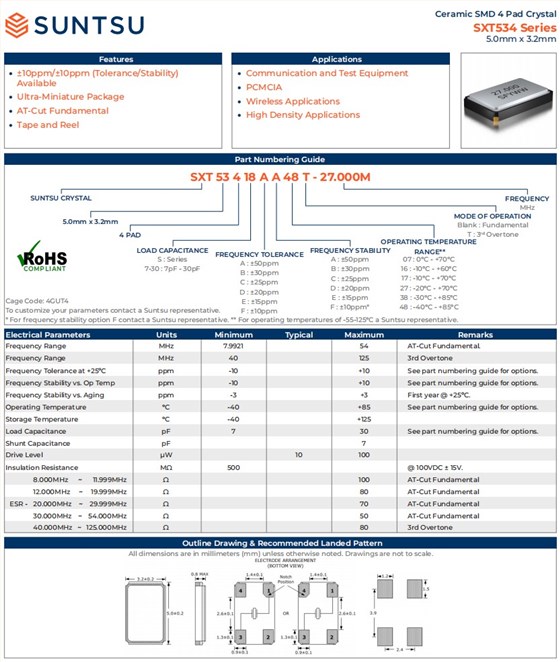

SXT53410AB17-25.000M,SUNTSU無線應用晶振,5032mm無源晶振,參數表

Electrical Parameters	Units	Minimum	Typical	Maximum	Remarks
Frequency Range	MHz	25			AT-Cut Fundamental.
Frequency Range	MHz	40		125	3rd Overtone
Frequency Tolerance at +25ºC	ppm	-10		+10	See part numbering guide for options.
Frequency Stability vs. Op Temp	ppm	-10		+10	See part numbering guide for options.
Frequency Stability vs. Aging	ppm	-3		+3	First year @ +25ºC.
Operating Temperature	°C	-40		+85	See part numbering guide for options.
Storage Temperature	°C	-40		+125
Load Capacitance	pF	7		30	See part numbering guide for options.
Shunt Capacitance	pF			7
Drive Level	µW		10	100
Insulation Resistance	MΩ	500			@ 100VDC ± 15V.
8.000MHz~11.999MHz	Ω			100	AT-Cut Fundamental
12.000MHz~19.999MHz	Ω			80	AT-Cut Fundamental
ESR- 20.000MHz~29.999MHz	Ω			70	AT-Cut Fundamental
30.000MHz ~54.000MHz	Ω			50	AT-Cut Fundamental
40.000MHz~125.000MHz	Ω			80	3rd Overtone

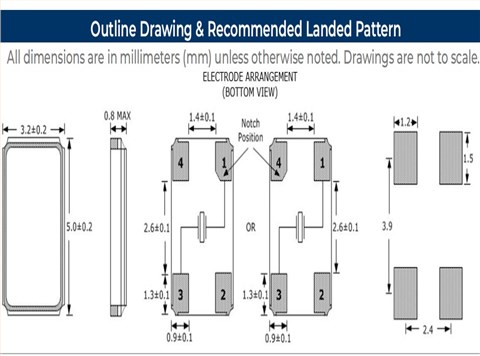

SXT53410AB17-25.000M,SUNTSU無線應用晶振,5032mm無源晶振,尺寸圖

產品編碼	石英晶振	頻率	負載	工作溫度
SXT53410AA07-25.000M	SXT534	25.000M	10pF	0°C - +70°C
SXT53410AA16-25.000M	SXT534	25.000M	10pF	-10°C - +60°C
SXT53410AA17-25.000M	SXT534	25.000M	10pF	-10°C - +70°C
SXT53410AA27-25.000M	SXT534	25.000M	10pF	-20°C - +70°C
SXT53410AB07-25.000M	SXT534	25.000M	10pF	0°C - +70°C
SXT53410AB16-25.000M	SXT534	25.000M	10pF	-10°C - +60°C
SXT53410AB17-25.000M	SXT534	25.000M	10pF	-10°C - +70°C
SXT53410AB27-25.000M	SXT534	25.000M	10pF	-20°C - +70°C
SXT53410AC07-25.000M	SXT534	25.000M	10pF	0°C - +70°C
SXT53410AC16-25.000M	SXT534	25.000M	10pF	-10°C - +60°C
SXT53410AC17-25.000M	SXT534	25.000M	10pF	-10°C - +70°C
SXT53410AC27-25.000M	SXT534	25.000M	10pF	-20°C - +70°C
SXT53410AD07-25.000M	SXT534	25.000M	10pF	0°C - +70°C
SXT53410AD16-25.000M	SXT534	25.000M	10pF	-10°C - +60°C
SXT53410AD17-25.000M	SXT534	25.000M	10pF	-10°C - +70°C
SXT53410AD27-25.000M	SXT534	25.000M	10pF	-20°C - +70°C
SXT53410AE07-25.000M	SXT534	25.000M	10pF	0°C - +70°C
SXT53410AE16-25.000M	SXT534	25.000M	10pF	-10°C - +60°C
SXT53410AE17-25.000M	SXT534	25.000M	10pF	-10°C - +70°C
SXT53410AE27-25.000M	SXT534	25.000M	10pF	-20°C - +70°C
SXT53410BB07-25.000M	SXT534	25.000M	10pF	0°C - +70°C
SXT53410BB16-25.000M	SXT534	25.000M	10pF	-10°C - +60°C
SXT53410BB17-25.000M	SXT534	25.000M	10pF	-10°C - +70°C
SXT53410BB27-25.000M	SXT534	25.000M	10pF	-20°C - +70°C
SXT53410BC07-25.000M	SXT534	25.000M	10pF	0°C - +70°C
SXT53410BC16-25.000M	SXT534	25.000M	10pF	-10°C - +60°C
SXT53410BC17-25.000M	SXT534	25.000M	10pF	-10°C - +70°C
SXT53410BC27-25.000M	SXT534	25.000M	10pF	-20°C - +70°C
SXT53410BD07-25.000M	SXT534	25.000M	10pF	0°C - +70°C
SXT53410BD16-25.000M	SXT534	25.000M	10pF	-10°C - +60°C
SXT53410BD17-25.000M	SXT534	25.000M	10pF	-10°C - +70°C
SXT53410BD27-25.000M	SXT534	25.000M	10pF	-20°C - +70°C
