6G無線藍牙晶振|HEC陶瓷諧振器|HE-MCC-125A-44.000F-E，尺寸7.0×5.0mm，頻率44MHZ，HEC美國晶振，進口無源晶振，陶瓷諧振器，兩腳貼片晶振，無源晶體，SMD晶振，無源貼片晶振，輕薄型晶振，無鉛環保晶振，7050mm貼片晶體，高品質晶振，高性能晶振，低損耗無源晶體，智能手機晶振，儀器設備晶振，6G無線藍牙晶振，便攜式設備晶振，消費電子專用晶振，具有超高可靠性能以及穩定性能.

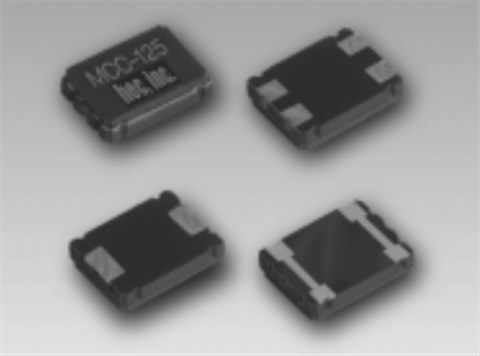

HE-MCC-125和HE-MCC-170系列是HEC的縮影陶瓷基表面貼裝貼片晶振，封裝高度為 只有1.25毫米/ 1.70毫米。這些晶體是玻璃密封在一個 陶瓷外殼，提供經濟的成本和高可靠性。HEC提供三(3)種不同的真正SMD封裝模式，擴展的溫度范圍是可選的。6G無線藍牙晶振|HEC陶瓷諧振器|HE-MCC-125A-44.000F-E.

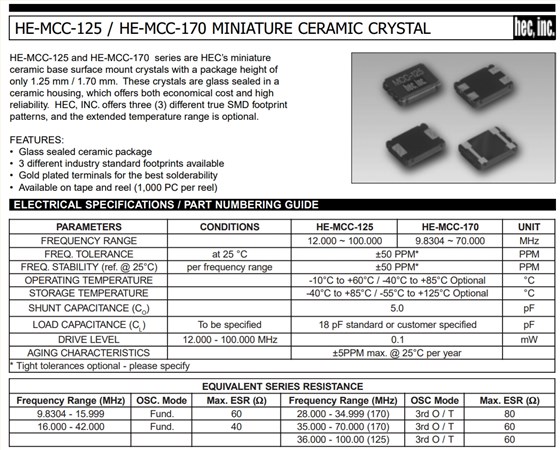

6G無線藍牙晶振|HEC陶瓷諧振器|HE-MCC-125A-44.000F-E參數表
| ELECTRICAL SPECIFICATIONS / PART NUMBERING GUIDE | |||||||||||||||||||||||||||
| PARAMETERS | CONDITIONS | HE-MCC-125 | HE-MCC-170 | UNIT | |||||||||||||||||||||||
| FREQUENCY RANGE | 44.000 | 9.8304 ~ 70.000 | MHz | ||||||||||||||||||||||||
| FREQ. TOLERANCE | at 25 °C | ±50 PPM* | PPM | ||||||||||||||||||||||||
| FREQ. STABILITY (ref. @ 25°C) | per frequency range | ±50 PPM* | PPM | ||||||||||||||||||||||||
| OPERATING TEMPERATURE | -10°C to +60°C / -40°C to +85°C Optional | °C | |||||||||||||||||||||||||
| STORAGE TEMPERATURE | -40°C to +85°C / -55°C to +125°C Optional | °C | |||||||||||||||||||||||||
| SHUNT CAPACITANCE (CO) | 5.0 | pF | |||||||||||||||||||||||||
| LOAD CAPACITANCE (CL) | To be specified | 18 pF standard or customer specified | pF | ||||||||||||||||||||||||
| DRIVE LEVEL | 12.000 - 100.000 MHz | 0.1 | mW | ||||||||||||||||||||||||
| AGING CHARACTERISTICS | ±5PPM max. @ 25°C per year | ||||||||||||||||||||||||||
| * Tight tolerances optional - please specify | |||||||||||||||||||||||||||

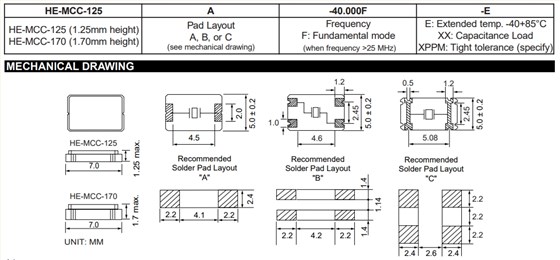

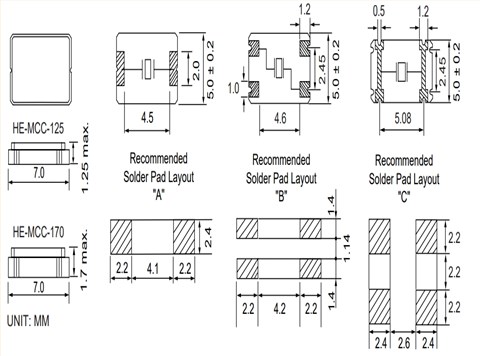

6G無線藍牙晶振|HEC陶瓷諧振器|HE-MCC-125A-44.000F-E 尺寸圖
陶瓷晶體產品特性：
玻璃密封陶瓷封裝
提供3種不同的行業標準尺寸
鍍金端子具有最佳的可焊性
提供磁帶和卷軸(每卷1，000件)
更多相關HEC CRYSTAL型號,請咨詢我們！
