ABM7-25.000MHZ-B4-T數據手冊 6035mm 25MHZ SMD ABM7

產品簡介

ABM7-25.000MHZ-B4-T數據手冊 6035mm 25MHZ SMD ABM7,尺寸為6035mm,頻率為25MHZ，美國艾博康晶振，進口無源晶體，貼片晶振，陶瓷諧振器，音叉晶體，水晶振動子，6035mm無源諧振器，低損耗晶振，高質量晶振，電腦專用晶振，調制解調器晶振，通訊設備晶振，輕薄型設備晶振，工業應用晶振。

SMD晶振產品主要應用范圍：電腦，調制解調器，通訊設備，輕薄型設備，工業廣泛的溫度應用等領域。ABM7-25.000MHZ-B4-T數據手冊 6035mm 25MHZ SMD ABM7.

產品詳情

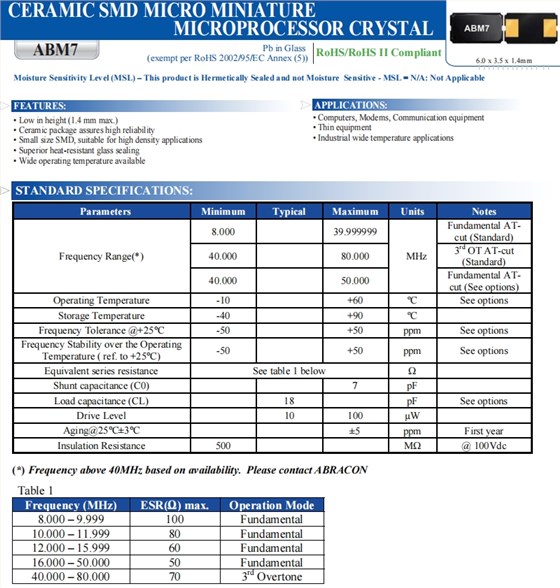

Parameters	Minimum	Typical	Maximum	Units	Notes
	8		39.999999		FundamentalAT-cut(Standard)
	40		80		3rdOTAT-cut(Standard)
FrequencyRange(*)	40		50	MHz	FundamentalAT-cut(Seeoptions)
OperatingTemperature	-10		60	ºC	See options
Storage Temperature	-40		90	ºC
FrequencyTolerance@+25°C	-50		50	ppm	See options
FrequencyStabilityovertheOperating	-50		50	ppm	See options
Temperature(ref.to+25°C)	-50		50	ppm	See options
Equivalentseries resistance	See table 1 below			Ω
Shuntcapacitance(C0)			7	pF
Loadcapacitance(CL)		18		pF	Seeoptions
DriveLevel		10	100	µW
Aging@25°C±3°C			±5	ppm	First year
InsulationResistance	500			MΩ	@100Vdc

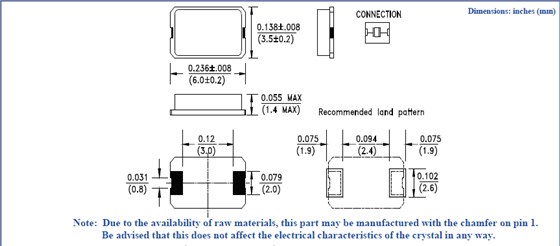

ABM7-25.000MHZ-B4-T數據手冊 6035mm 25MHZ SMD ABM7尺寸圖

特點

高度低(最大1.4毫米)

•陶瓷封裝確保高可靠性
•小尺寸貼片，適合高密度應用
•優越的耐熱玻璃密封
•工作溫度范圍廣
