FX135A,FX135A-327,3215mm,FOX福克斯晶振,32.768KHz

頻率：32.768KHz

尺寸：3.2x1.5x0.9mm

FX135A,FX135A-327,3215mm,FOX?？怂咕д?32.768KHz，美國進口晶振，FOX晶振，?？怂咕д?，型號：FX135A，編碼為：FX135A-327，頻率：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.9mm，兩腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，3215晶振，無鉛晶振，具有超小型晶振，輕薄型晶振，高品質晶振，高可靠性晶振，耐熱及耐環境特點。應用于：移動通訊晶振，時計產品晶振，時鐘晶振，儀器儀表設備晶振，可穿戴設備晶振，無線藍牙晶振，智能家居等應用。

訂購熱線：86-0755-27838351

FX135A,FX135A-327,3215mm,FOX?？怂咕д?32.768KHz,參數表

PARAMETERS	MAX (unless otherwise noted)
Frequency	32.768 kHz
Frequency Tolerance @ 25ºC	±20 PPM
Frequency Stability Temperature Coefficient	-0.045 PPM / (△ºC)2
Temperature Range Turnover （TO） Operating （TOPR） Storage （TSTG)	+20ºC ~ +30ºC -40ºC ~ +85ºC -55ºC ~ +125ºC
	+20ºC ~ +30ºC -40ºC ~ +85ºC -55ºC ~ +125ºC
Equivalent Series Resistance (RS)	70 kΩ
Load Capacitance (Cl)	12.5 pF(Standard) (Fox P/N: FX135A-327) 9pF (Optional) (Fox P/N: FX135B-327)
Insulation Resistance @ 100VDC	500MΩ Min
Drive Level	1.0 μW 0.1 μW Typ
Aging per year	±3 PPM
Maximum Soldering Temp / Time	260ºC / 10 Seconds
Moisture Sensitivity Level (MSL)	1
Termination Finish	Au over Ni

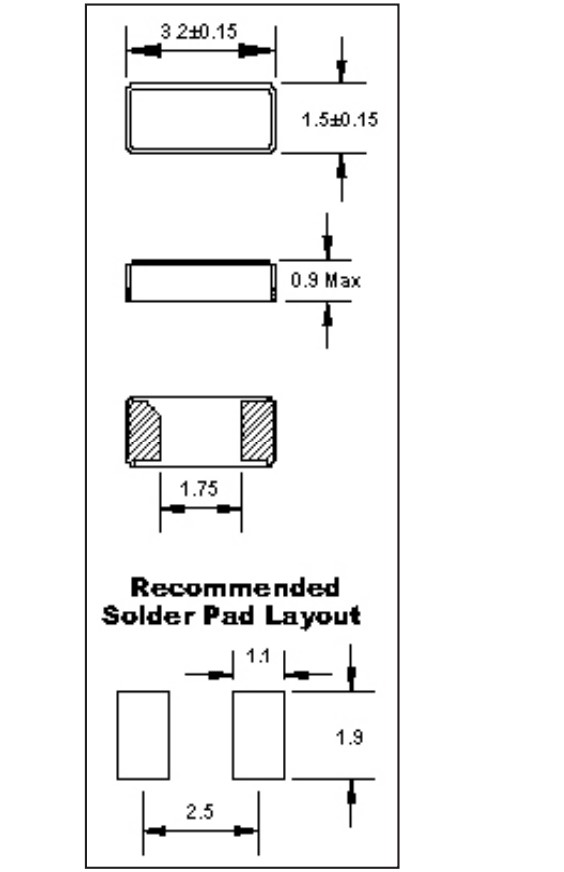

FX135A,FX135A-327,3215mm,FOX?？怂咕д?32.768KHz,尺寸圖

原廠編碼	晶振廠家	型號	頻率	包裝/封裝	頻率穩定度
FOXSDLF/120-20	Fox晶振	HC49SDLF	12MHz	HC49/US	±50ppm
FX135A-327	Fox晶振	FX135A	32.768kHz	2-SMD, No Lead	-
FSRLF327	Fox晶振	FSRLF	32.768kHz	4-SOJ, 5.50mm pitch	-
FSXLF327	Fox晶振	FSXLF	32.768kHz	4-SMD, Flat Lead, 3 Leads	-
FQ5032B-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±30ppm
FSMLF327	Fox晶振	FSMLF	32.768kHz	4-SOJ, 2.29mm pitch	-
FOXSDLF/160-20	Fox晶振	HC49SDLF	16MHz	HC49/US	±50ppm
FOXSDLF/200-20	Fox晶振	HC49SDLF	20MHz	HC49/US	±50ppm
FQ3225B-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FOXSLF/200-20	Fox晶振	HC49SLF	20MHz	HC49/US	±50ppm
FOXSLF/120-20	Fox晶振	HC49SLF	12MHz	HC49/US	±50ppm
FX252BS-16.000	Fox晶振	FX252B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±30ppm
FOXLF200-20	Fox晶振	HC49ULF	20MHz	HC49/U	±50ppm
NC38LF-327	Fox晶振	NC38LF	32.768kHz	Cylindrical Can, Radial	-
NC26LF-327	Fox晶振	NC26LF	32.768kHz	Cylindrical Can, Radial	-
FOXSDLF/120R-20/TR	Fox晶振	HC49SDLF	12MHz	HC49/US	±50ppm
FSRLF327-6	Fox晶振	FSRLF	32.768kHz	4-SOJ, 5.50mm pitch	-
FX425B-12.000	Fox晶振	FX425B	12MHz	4-SMD, No Lead	±50ppm
FX122-327	Fox晶振	FX122	32.768kHz	2-SMD, No Lead	-
FOXSLF/160-20	Fox晶振	HC49SLF	16MHz	HC49/US	±50ppm
FOXSLF/160	Fox晶振	HC49SLF	16MHz	HC49/US	±50ppm
FOXSLF/128-20	Fox晶振	HC49SLF	12.288MHz	HC49/US	±50ppm
FOXSLF/245F-20	Fox晶振	HC49SLF	24.576MHz	HC49/US	±50ppm
FOXSLF/120	Fox晶振	HC49SLF	12MHz	HC49/US	±50ppm
FOXLF120-20	Fox晶振	HC49ULF	12MHz	HC49/U	±50ppm
FOXLF160	Fox晶振	HC49ULF	16MHz	HC49/U	±50ppm
FOXLF160-20	Fox晶振	HC49ULF	16MHz	HC49/U	±50ppm
FOXSDLF/245F-20	Fox晶振	HC49SDLF	24.576MHz	HC49/US	±50ppm
FOXSDLF/160R-20/TR	Fox晶振	HC49SDLF	16MHz	HC49/US	±50ppm
FOXSDLF/200R-20/TR	Fox晶振	HC49SDLF	20MHz	HC49/US	±50ppm
FOXSDLF/245FR-20/TR	Fox晶振	HC49SDLF	24.576MHz	HC49/US	±50ppm
FQ5032B-24.576	Fox晶振	C5BQ	24.576MHz	4-SMD, No Lead	±30ppm
FQ5032B-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±30ppm
FQ5032BR-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±50ppm
FQ5032BR-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±50ppm
FQ3225B-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225BR-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FOXLF120	Fox晶振	HC49ULF	12MHz	HC49/U	±50ppm
FOXSDLF/128-20	Fox晶振	HC49SDLF	12.288MHz	HC49/US	±50ppm
FOXSLF/200	Fox晶振	HC49SLF	20MHz	HC49/US	±50ppm
FX252BS-20.000	Fox晶振	FX252B	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±50ppm
FX425B-16.000	Fox晶振	FX425B	16MHz	4-SMD, No Lead	±50ppm
FQ3225B-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
FQ3225BR-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225BR-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
603-12-67	Fox晶振	FX325BS	12MHz	4-SMD, No Lead	±50ppm
FX532B-12.000	Fox晶振	FX532B	12MHz	4-SMD, No Lead	±50ppm
FX532B-16.000	Fox晶振	FX532B	16MHz	4-SMD, No Lead	±50ppm
FX532B-20.000	Fox晶振	FX532B	20MHz	4-SMD, No Lead	±50ppm
FX532B-24.576	Fox晶振	FX532B	24.576MHz	4-SMD, No Lead	±50ppm
FX425B-20.000	Fox晶振	FX425B	20MHz	4-SMD, No Lead	±50ppm
FX425B-24.576	Fox晶振	FX425B	24.576MHz	4-SMD, No Lead	±50ppm
FPXLF120-20	Fox晶振	FPXLF	12MHz	4-SMD, No Lead	±50ppm
FPXLF160	Fox晶振	FPXLF	16MHz	4-SMD, No Lead	±50ppm
FPXLF160-20	Fox晶振	FPXLF	16MHz	4-SMD, No Lead	±50ppm
FPXLF200-20	Fox晶振	FPXLF	20MHz	4-SMD, No Lead	±50ppm
