微型泛音的石英貼片晶振是愛普生不變的經典X1E000021016816，當我們開始感知電子產業快速發展時，最常出現在我們視野當中的電子產品是手機，游戲機，無線通信，藍牙等產品，隨著產品不斷推陳出新，晶振產品在晶體行業不斷進行更新與迭代，在我們?nèi)粘Ｖ兴姷拿總€(gè)單片機系統里都有晶振，全程是叫晶體震蕩器，在單片機系統里石英晶體的作用非常大，他結合單片機內部的電路，產生單片機所必須的時鐘頻率，單片機的一切指令的執行都是建立在這個基礎上的，晶振的提供的時鐘頻率越高，那單片機的運行速度也就越快。
                                                                                                                                                               Product Number16
|
 LxWxH
|
 Model
|
 Frequency
|
 CL Value
|
 Freq.tol. @+25°C
|
 Freq.tol./Temp.range
|
 Temperature range
|
| X1E000021015816 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 10 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021015916 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 12 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021016116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021016216 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021016316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021016416 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021016516 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 16 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021016616 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 8 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021016716 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 9 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021016816 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 10 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021016916 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 32.000000 MHz | 12 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021017016 | 3.2 x 2.5 x 0.6mm | TSX-3225晶振 | 32.000000 MHz | 16 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021017116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 8 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021017216 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021017316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021017416 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021017516 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 16 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021017616 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 8 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021017716 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 9 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021017816 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 10 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021017916 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 12 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021018116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 20 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021018316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 16 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
|
Product Number16
|
LxWxH
|
Model
|
Frequency
|
CL Value
|
Freq.tol. @+25°C
|
Freq.tol./Temp.range
|
Temperature range
|
| X1E000021019316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 16.000000 MHz | 16 pF | +/-10 ppm | +/-18 ppm | -40 to +85 °C |
| X1E000021021816 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 38.400000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021023916 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021024116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 15 pF | +/-10 ppm | +/-10 ppm | 0 to +70 °C |
| X1E000021024616 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021025316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 30.000000 MHz | 16 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021025516 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 9 pF | +/-10 ppm | +/-15 ppm | -30 to +85 °C |
| X1E000021025616 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 9 pF | +/-10 ppm | +/-15 ppm | -30 to +85 °C |
| X1E000021026016 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 18 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021026316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 18 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021026416 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.000000 MHz | 18 pF | +/-10 ppm | +/-18 ppm | -40 to +85 °C |
| X1E000021026516 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 48.000000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021026616 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 18 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021028516 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 19.200000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021029516 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 30.000000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021030116 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 24.576000 MHz | 12 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021031216 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 7 pF | +/-10 ppm | +/-20 ppm | -40 to +85 °C |
| X1E000021031516 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 18 pF | +/-10 ppm | +/-10 ppm | -20 to +75 °C |
| X1E000021035016 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 26.000000 MHz | 9 pF | +/-10 ppm | +/-10 ppm | -20 to +85 °C |
| X1E000021035216 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 25.000000 MHz | 20 pF | +/-10 ppm | +/-18 ppm | -40 to +85 °C |
| X1E000021035616 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 20.000000 MHz | 10 pF | +/-10 ppm | +/-10 ppm | -20 to +70 °C |
| X1E000021036316 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 27.000000 MHz | 18 pF | +/-10 ppm | +/-10 ppm | -20 to +85 °C |
| X1E000021036716 | 3.2 x 2.5 x 0.6mm | TSX-3225 | 40.000000 MHz | 10 pF | +/-10 ppm | +/-15 ppm | -30 to +85 °C |

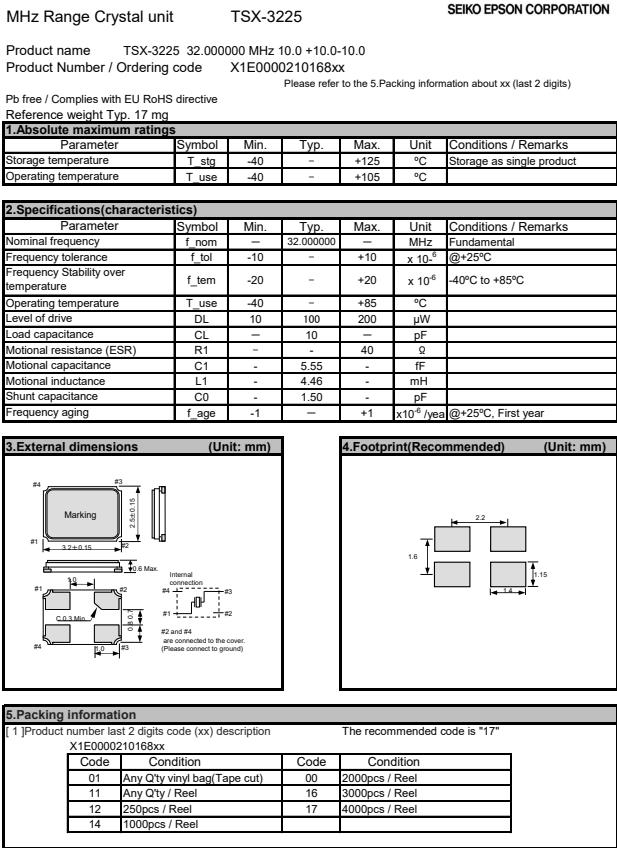

愛普生公司推出了高精密，小尺寸的TSX-3225晶振，石英貼片晶振，編碼X1E000021016816，頻率32.000000兆赫，尺寸(長×寬×高)3.2 × 2.5 × 0.6 mm，負載電容10pf，頻率公差+ / -10 ppm，特征公差+ / -20 ppm，溫度范圍-40到+85°C，泛音順序:基本音，應用領域:手機，藍牙，無線局域網，ISM波段收音機，MPU時鐘.
