頻率：32.768KHz
尺寸：4.1x1.5mm
9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體，臺灣TXC晶振，晶技晶振，型號：9HT9系列，編碼為：9HT9-32.768KDZF-T，負載電容：12.5pF，精度：±20ppm，頻率為：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：4.1x1.5mm封裝，音叉表晶，兩腳貼片晶振，石英晶體，SMD晶振，手表晶體，無源晶振，4115mm晶振，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。被廣泛應用于：無線應用晶振、移動通信晶振，無線局域網，鐘表電子晶振，電腦主板晶振，智能家居晶振，數字顯示晶振，智能手機設備，電話機等應用。

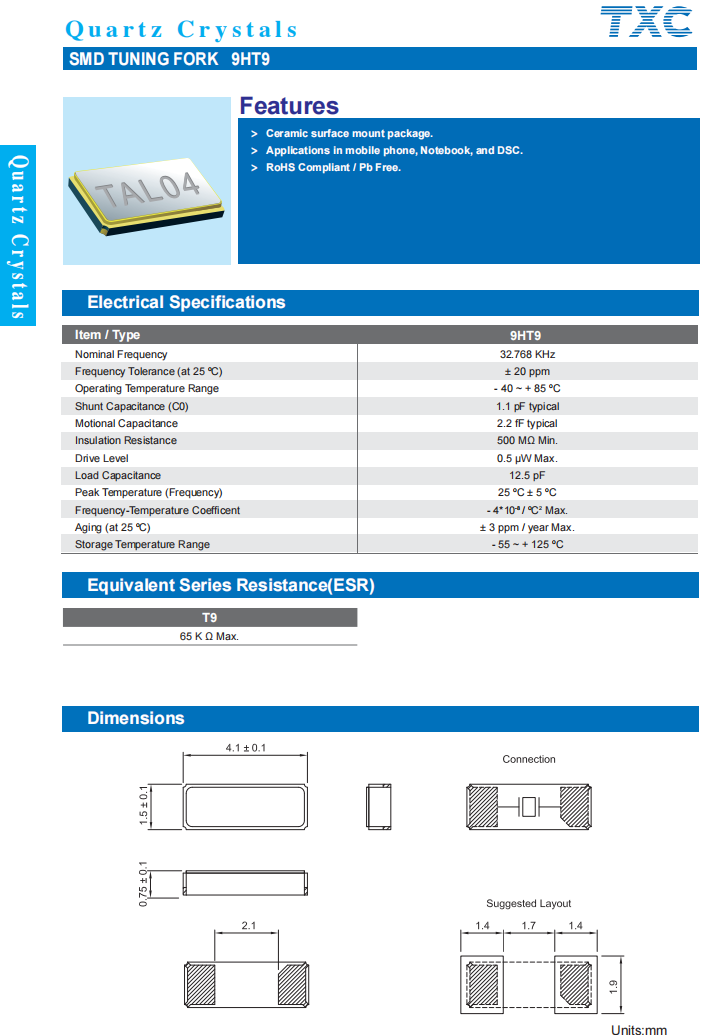

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體,參數表
Item / Type
9HT9
Nominal Frequency
32.768 KHz
Frequency Tolerance (at 25 ℃)
± 20 ppm
Operating Temperature Range
- 40 ~ + 85 ℃
Shunt Capacitance (C0)
1.1 pF typical
Motional Capacitance
2.2 fF typical
Insulation Resistance
500 MΩ Min.
Drive Level
0.5 μW Max.
Load Capacitance
12.5 pF
Peak Temperature (Frequency)
25 ℃ ± 5 ℃
Frequency-Temperature Coefficent
- 4*10-8 / ℃2 Max.
Aging (at 25 ℃)
± 3 ppm / year Max.
Storage Temperature Range
- 55 ~ + 125 ℃

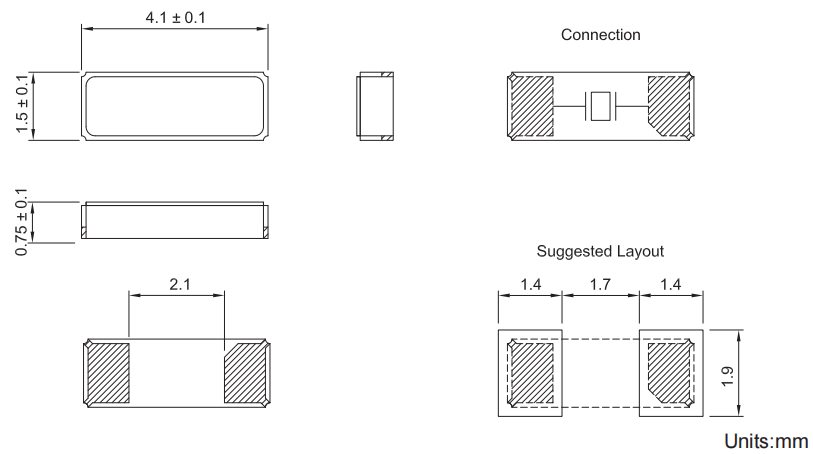

9HT9-32.768KDZF-T,9HT9,32.768kHz,4115mm,TXC晶技晶體,尺寸圖
| 原廠編碼 | 晶振廠家 | 型號 | 頻率 | 工作溫度 |
| 9HT7-32.768KDZF-T | TXC晶振 | 9HT7 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KBZF-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZF-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KEZF-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZF-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZC-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KEZC-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZF-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| AH-32.768KDZF-T | TXC晶振 | AH | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KBZF-T | TXC晶振 | 9HT7 | 32.768kHz | -40°C ~ 85°C |
| AH-32.768KDZB-T | TXC晶振 | AH | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KBZB-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KAZY-T | TXC晶振 | 9HT7 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KBZC-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KBZY-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZB-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZC-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KAZY-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZB-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZY-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9HT10-32.768KDZC-T | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| AH-32.768KBZF-T | TXC晶振 | AH | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZY-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZF-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZC-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KBZB-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KAZB-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KAZC-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KAZY-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| AH-32.768KDZY-T | TXC晶振 | AH | 32.768kHz | -40°C ~ 85°C |
| AH-32.768KDZC-T | TXC晶振 | AH | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZB-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KDZY-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KBZF-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KBZY-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KBZC-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KAZF-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KAZY-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KAZC-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KDZF-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KDZY-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT12-32.768KDZC-T | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KBZY-T | TXC晶振 | 9HT7 | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KDZY-T | TXC晶振 | 9HT7 | 32.768kHz | -40°C ~ 85°C |
| 9HT7-32.768KAZF-T | TXC晶振 | 9HT7 | 32.768kHz | -40°C ~ 85°C |
| 9H03200413 | TXC晶振 | 9HT7 | 32.768kHz | -40°C ~ 85°C |
| 9H03270036 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03200019 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03200031 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03200042 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03220005 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03220008 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03220009 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03270011 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03270040 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03270052 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03270059 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03277003 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03277005 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03200036 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03200021 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03200034 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03200022 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03200033 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03270024 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| 9H03270042 | TXC晶振 | 9HT10 | 32.768kHz | -40°C ~ 85°C |
| AH-32.768KAZF-T | TXC晶振 | AH | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KAZF-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9HT11-32.768KEZF-T | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| AH03200003 | TXC晶振 | AH | 32.768kHz | -40°C ~ 85°C |
| AH03270003 | TXC晶振 | AH | 32.768kHz | -40°C ~ 85°C |
| AH03270004 | TXC晶振 | AH | 32.768kHz | -40°C ~ 125°C |
| 9H03200012 | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9H03270022 | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9H03270030 | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9H03200010 | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9H03270033 | TXC晶振 | 9HT11 | 32.768kHz | -40°C ~ 85°C |
| 9H03200030 | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9H03270047 | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9H03270049 | TXC晶振 | 9HT12 | 32.768kHz | -40°C ~ 85°C |
| 9HT9-32.768KDZF-T | TXC晶振 | 9HT9 | 32.768kHz | -40°C ~ 85°C |
| 9HT9-32.768KBZF-T | TXC晶振 | 9HT9 | 32.768kHz | -40°C ~ 85°C |
| 9HT9-32.768KAZF-T | TXC晶振 | 9HT9 | 32.768kHz | -40°C ~ 85°C |
