501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振

頻率：24.000MHz

尺寸：3.2x2.5x0.9mm

501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振，美國進口晶振，Silicon晶振，型號：Si501，編碼為：501JCA24M0000CAF，電壓：3.3V，精度：±20ppm，頻率：24.000MHz，小體積晶振尺寸：3.2x2.5x0.9mm封裝，工作溫度范圍：-20℃至+70℃，四腳貼片晶振，有源晶振，石英晶振，石英晶體振蕩器。具有超小型，輕薄型，高精度，高性能，高品質等特點。應用程序：存儲（SATA/SAS/PCIe），通用處理器，工業控制器，嵌入式控制器，機控制，流量控制，辦公室/家庭自動化，IP攝像頭/監控，顯示和控制面板，戶外電子設備，多功能打印機等。
訂購熱線：86-0755-27838351
QQ咨詢 點擊這里給我發消息

1

501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振，美國進口晶振，Silicon晶振，型號：Si501，編碼為：501JCA24M0000CAF，電壓：3.3V，精度：±20ppm，頻率：24.000MHz，小體積晶振尺寸：3.2x2.5x0.9mm封裝，工作溫度范圍：-20℃至+70℃，四腳貼片晶振，有源晶振，石英晶振，石英晶體振蕩器。具有超小型，輕薄型，高精度，高性能，高品質等特點。應用程序：存儲（SATA/SAS/PCIe），通用處理器，工業控制器，嵌入式控制器，機控制，流量控制，辦公室/家庭自動化，IP攝像頭/監控，顯示和控制面板，戶外電子設備，多功能打印機等。

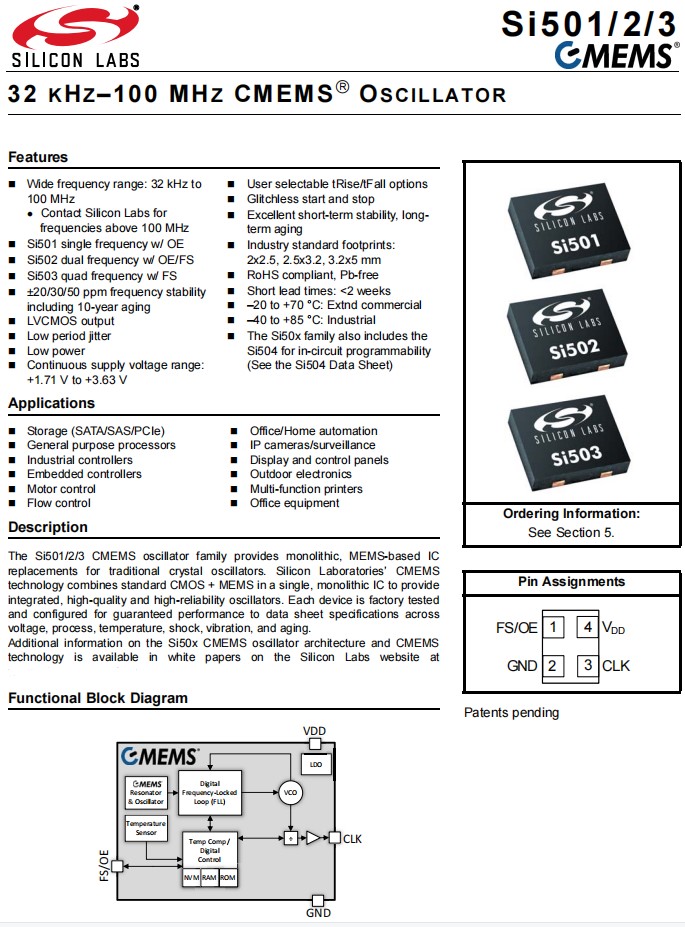

Si501 CMEMS振蕩器系列為傳統的石英晶體振蕩器提供了單片的，基于mems的IC替代品。硅實驗室的CMEMS技術將標準CMOS+MEMS結合在一個單片IC集成電路中，提供集成、高質量和高可靠性的振蕩器。每個設備都經過工廠測試和配置，以保證其在電壓、工藝、溫度、沖擊、振動和老化等方面的性能。

501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振,產品特點：

寬頻率范圍：32kHz到100MHz
Si501單頻w/OE
Si502雙頻w/OE/FS
Si503四頻w/FS
±20/30/50 ppm頻率穩定性，包括10年老化
LVCMOS輸出，低周期抖動，低功率
連續供電電壓范圍：+1.71V至+3.63V
用戶可選擇的上升/下降選項
無故障啟動和停止，優異的短期穩定性，長期老化
行業標準占地面積：2x2.5mm、2.5x3.2mm、3.2x5mm有源晶振
符合RoHS，不含鉛，交付周期短：<2周
–20至+70°C：外部商用，-40至+85°C：工業

2

501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振,參數表

Parameter Symbol Test Condition Min Typ Max Unit
Frequency
Range 		FCLK 24.000

MHz
Clock Period TCLK 1/FCLK 31,250  — 10 ns
Total Stability1 F STAB –20 — +20 ppm
–30 — +30 ppm
–50 — +50 ppm
Initial
Accuracy 		FI Measured at 25 。C at the time of
shipping 		— ±2 — ppm
Startup Time2 TSU From V DD crossing 1.71 V to first
clock output 		— 2.5 4 ms
Resume
Time3,4 		T RUN From Sleep mode — 2.5 5 ms
From Doze mode — 1.7 2.55 ms
From Stop mode5 — — 1.5 x TCLK +
35 		ns
Output Disable
Time3,4 		TD To Sleep/Doze mode, from output
running 		— — 225 µs
To Stop, from output running — — 1.5 x TCLK +
35 		ns
Frequency
Update
Time4,6 		T NEW_FREQ — — 5 ms

3

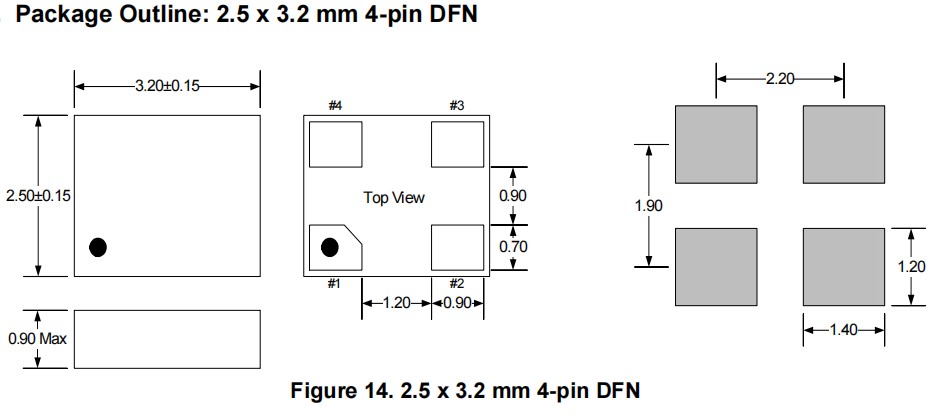

501JCA24M0000CAF,Si501,3225mm,24MHz,Silicon晶振,尺寸圖

Si501，Si502,Si503尺寸3225

Si501，Si502,Si503

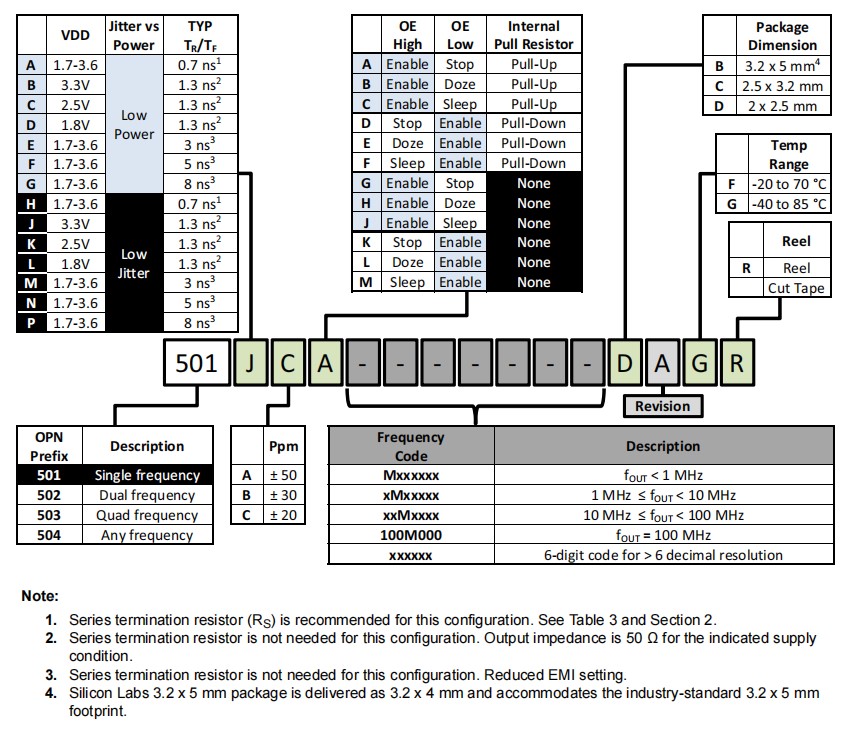

Si501編碼

原廠代碼 晶振廠家 型號 頻率 電壓 頻率穩定度 包裝/封裝
501JCA100M000CAG Silicon晶振 Si501 100MHz 3.3V ±20ppm 4-SMD, No Lead
501JAA24M0000CAF Silicon晶振 Si501 24MHz 3.3V ±50ppm 4-SMD, No Lead
501AAA27M0000CAF Silicon晶振 Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501JAA40M0000CAF Silicon晶振 Si501 40MHz 3.3V ±50ppm 4-SMD, No Lead
501EAA48M0000CAF Silicon晶振 Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501AAA50M0000CAF Silicon晶振 Si501 50MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501JCA24M0000CAF Silicon晶振 Si501 24MHz 3.3V ±20ppm 4-SMD, No Lead
501BCA16M0000CAF Silicon晶振 Si501 16MHz 3.3V ±20ppm 4-SMD, No Lead
501EAA48M0000CAG Silicon晶振 Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501BAA16M0000CAG Silicon晶振 Si501 16MHz 3.3V ±50ppm 4-SMD, No Lead
501ACA10M0000CAF Silicon晶振 Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501JCA25M0000CAF Silicon晶振 Si501 25MHz 3.3V ±20ppm 4-SMD, No Lead
501ABA8M00000CAG Silicon晶振 Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 4-SMD, No Lead
501JCA20M0000CAG Silicon晶振 Si501 20MHz 3.3V ±20ppm 4-SMD, No Lead
501BCA16M0000CAG Silicon晶振 Si501 16MHz 3.3V ±20ppm 4-SMD, No Lead
501JCA100M000CAF Silicon晶振 Si501 100MHz 3.3V ±20ppm 4-SMD, No Lead
501JCAM032768CAF Silicon晶振 Si501 32.768kHz 3.3V ±20ppm 4-SMD, No Lead
501BCAM032768CAF Silicon晶振 Si501 32.768kHz 3.3V ±20ppm 4-SMD, No Lead
501BCAM032768CAG Silicon晶振 Si501 32.768kHz 3.3V ±20ppm 4-SMD, No Lead
501JCAM032768CAG Silicon晶振 Si501 32.768kHz 3.3V ±20ppm 4-SMD, No Lead
501HCAM032768CAF Silicon晶振 Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501HCAM032768CAG Silicon晶振 Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501ABA8M00000CAF Silicon晶振 Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 4-SMD, No Lead
501ACA10M0000CAG Silicon晶振 Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501JCA10M0000CAF Silicon晶振 Si501 10MHz 3.3V ±20ppm 4-SMD, No Lead
501JCA10M0000CAG Silicon晶振 Si501 10MHz 3.3V ±20ppm 4-SMD, No Lead
501HCA12M0000CAF Silicon晶振 Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501HCA12M0000CAG 石英晶振 Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501BAA16M0000CAF Silicon晶振 Si501 16MHz 3.3V ±50ppm 4-SMD, No Lead
501JCA20M0000CAF Silicon晶振 Si501 20MHz 3.3V ±20ppm 4-SMD, No Lead
501AAA24M0000CAF Silicon晶振 Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501AAA24M0000CAG Silicon晶振 Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501JAA24M0000CAG Silicon晶振 Si501 24MHz 3.3V ±50ppm 4-SMD, No Lead
501JCA24M0000CAG Silicon晶振 Si501 24MHz 3.3V ±20ppm 4-SMD, No Lead
501AAA25M0000CAF Silicon晶振 Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501AAA25M0000CAG Silicon晶振 Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501JAA25M0000CAF Silicon晶振 Si501 25MHz 3.3V ±50ppm 4-SMD, No Lead
501JAA25M0000CAG Silicon晶振 Si501 25MHz 3.3V ±50ppm 4-SMD, No Lead
501JCA25M0000CAG Silicon晶振 Si501 25MHz 3.3V ±20ppm 4-SMD, No Lead
501HCA26M0000CAF Silicon晶振 Si501 26MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501HCA26M0000CAG Silicon晶振 Si501 26MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501AAA27M0000CAG Silicon晶振 Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501HCA27M0000CAF Silicon晶振 Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501HCA27M0000CAG Silicon晶振 Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501JAA40M0000CAG Silicon晶振 Si501 40MHz 3.3V ±50ppm 4-SMD, No Lead
501AAA50M0000CAG Silicon晶振 Si501 50MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501BAA50M0000CAF Silicon晶振 Si501 50MHz 3.3V ±50ppm 4-SMD, No Lead
501BAA50M0000CAG Silicon晶振 Si501 50MHz 3.3V ±50ppm 4-SMD, No Lead
501ACA100M000CAF Silicon晶振 Si501 100MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501ACA100M000CAG Silicon晶振 Si501 100MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501BCAM032768CAFR Silicon晶振 Si501 32.768kHz 3.3V ±20ppm 4-SMD, No Lead
501BCAM032768CAGR Silicon晶振 Si501 32.768kHz 3.3V ±20ppm 4-SMD, No Lead
501JCAM032768CAFR Silicon晶振 Si501 32.768kHz 3.3V ±20ppm 4-SMD, No Lead
501JCAM032768CAGR Silicon晶振 Si501 32.768kHz 3.3V ±20ppm 4-SMD, No Lead
501HCAM032768CAFR Silicon晶振 Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501HCAM032768CAGR Silicon晶振 Si501 32.768kHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501ABA8M00000CAFR Silicon晶振 Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 4-SMD, No Lead
501ABA8M00000CAGR Silicon晶振 Si501 8MHz 1.7 V ~ 3.6 V ±30ppm 4-SMD, No Lead
501ACA10M0000CAFR Silicon晶振 Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501ACA10M0000CAGR Silicon晶振 Si501 10MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501JCA10M0000CAFR Silicon晶振 Si501 10MHz 3.3V ±20ppm 4-SMD, No Lead
501JCA10M0000CAGR Silicon晶振 Si501 10MHz 3.3V ±20ppm 4-SMD, No Lead
501HCA12M0000CAFR Silicon晶振 Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501HCA12M0000CAGR Silicon晶振 Si501 12MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501BCA16M0000CAFR Silicon晶振 Si501 16MHz 3.3V ±20ppm 4-SMD, No Lead
501BCA16M0000CAGR Silicon晶振 Si501 16MHz 3.3V ±20ppm 4-SMD, No Lead
501BAA16M0000CAFR Silicon晶振 Si501 16MHz 3.3V ±50ppm 4-SMD, No Lead
501BAA16M0000CAGR Silicon晶振 Si501 16MHz 3.3V ±50ppm 4-SMD, No Lead
501JCA20M0000CAFR Silicon晶振 Si501 20MHz 3.3V ±20ppm 4-SMD, No Lead
501JCA20M0000CAGR Silicon晶振 Si501 20MHz 3.3V ±20ppm 4-SMD, No Lead
501AAA24M0000CAFR Silicon晶振 Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501AAA24M0000CAGR Silicon晶振 Si501 24MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501JAA24M0000CAFR Silicon晶振 Si501 24MHz 3.3V ±50ppm 4-SMD, No Lead
501JAA24M0000CAGR Silicon晶振 Si501 24MHz 3.3V ±50ppm 4-SMD, No Lead
501JCA24M0000CAFR Silicon晶振 Si501 24MHz 3.3V ±20ppm 4-SMD, No Lead
501JCA24M0000CAGR Silicon晶振 Si501 24MHz 3.3V ±20ppm 4-SMD, No Lead
501AAA25M0000CAFR Silicon晶振 Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501AAA25M0000CAGR Silicon晶振 Si501 25MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501JAA25M0000CAFR Silicon晶振 Si501 25MHz 3.3V ±50ppm 4-SMD, No Lead
501JAA25M0000CAGR Silicon晶振 Si501 25MHz 3.3V ±50ppm 4-SMD, No Lead
501JCA25M0000CAFR Silicon晶振 Si501 25MHz 3.3V ±20ppm 4-SMD, No Lead
501JCA25M0000CAGR Silicon晶振 Si501 25MHz 3.3V ±20ppm 4-SMD, No Lead
501HCA26M0000CAFR Silicon晶振 Si501 26MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501HCA26M0000CAGR Silicon晶振 Si501 26MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501AAA27M0000CAFR Silicon晶振 Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501AAA27M0000CAGR Silicon晶振 Si501 27MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501HCA27M0000CAFR Silicon晶振 Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501HCA27M0000CAGR Silicon晶振 Si501 27MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501JAA40M0000CAFR Silicon晶振 Si501 40MHz 3.3V ±50ppm 4-SMD, No Lead
501JAA40M0000CAGR Silicon晶振 Si501 40MHz 3.3V ±50ppm 4-SMD, No Lead
501EAA48M0000CAFR Silicon晶振 Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501EAA48M0000CAGR Silicon晶振 Si501 48MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501AAA50M0000CAFR Silicon晶振 Si501 50MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501AAA50M0000CAGR Silicon晶振 Si501 50MHz 1.7 V ~ 3.6 V ±50ppm 4-SMD, No Lead
501BAA50M0000CAFR Silicon晶振 Si501 50MHz 3.3V ±50ppm 4-SMD, No Lead
501BAA50M0000CAGR Silicon晶振 Si501 50MHz 3.3V ±50ppm 4-SMD, No Lead
501ACA100M000CAFR Silicon晶振 Si501 100MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501ACA100M000CAGR Silicon晶振 Si501 100MHz 1.7 V ~ 3.6 V ±20ppm 4-SMD, No Lead
501JCA100M000CAFR Silicon晶振 Si501 100MHz 3.3V ±20ppm 4-SMD, No Lead
501JCA100M000CAGR Silicon晶振 Si501 100MHz 3.3V ±20ppm 4-SMD, No Lead
