當前位置：首頁 » 歐美晶振 » SUNTSU晶振 » SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312

prevnext

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312

頻率：32.768KHZ

尺寸：3.2x1.5mm

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312，尺寸3.2x1.5mm，頻率32.768KHZ，松圖32.768K晶振，3215mm音叉晶體，兩腳無源晶振，歐美進口晶振，32.768K時鐘晶振，無源晶振，SMD石英晶體，輕薄型晶振，小體積晶振，低損耗晶振，低功耗晶振，低耗能晶振，高性能晶振，高品質晶振，智能手表晶振，數字電表晶振，無線應用晶振，測試測量晶振，智能手環晶振，電話機晶振，具有高品質高性能的特點。

產品超級適合用于智能手表，時計產品晶振，數字電表，無線應用，測試測量，智能手環，電話機等應用。SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312.

訂購熱線：86-0755-27838351

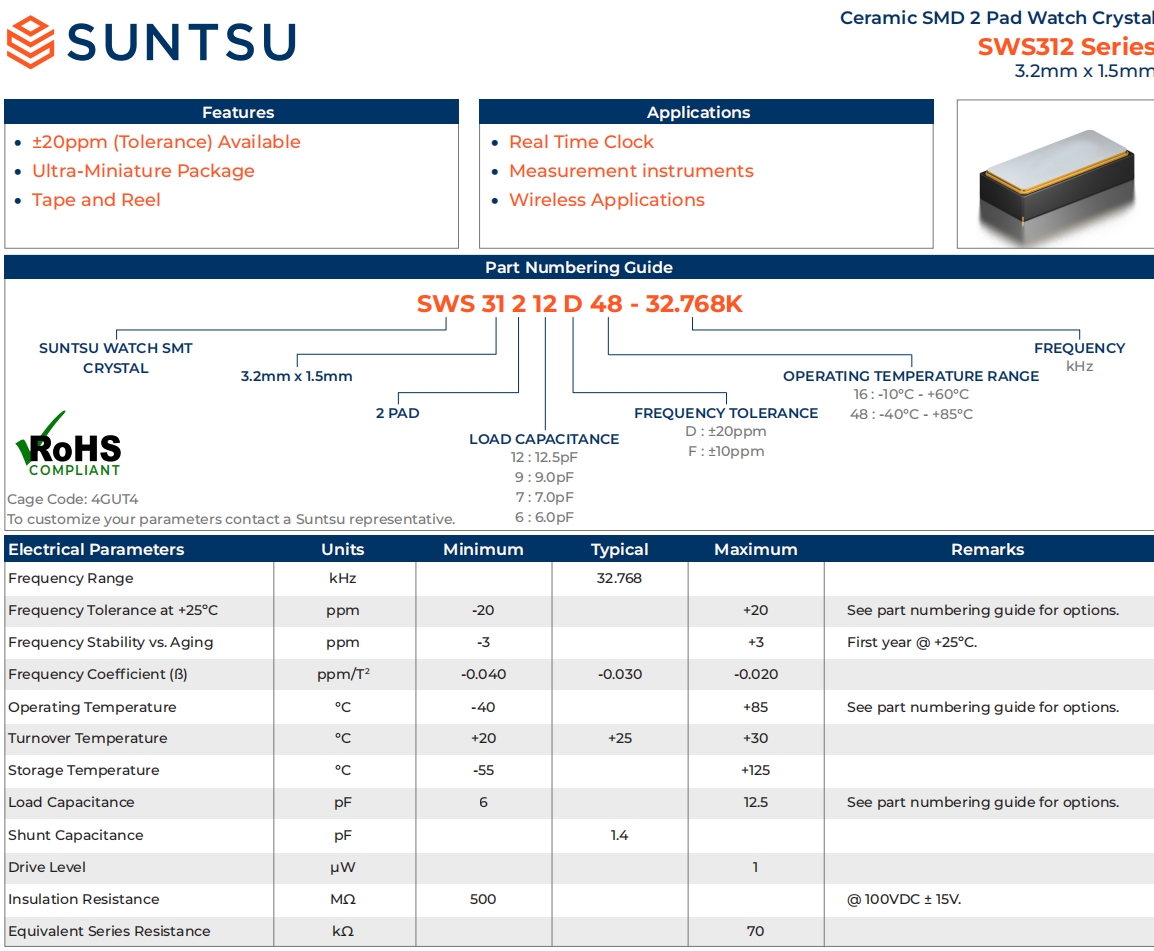

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312 參數表

Electrical Parameters Units Minimum Typical Maximum Remarks

Frequency Range

kHz

32.768

Frequency Tolerance at +25ºC

ppm

-20

+20

See part numbering guide for options.

Frequency Stability vs. Aging

ppm

-3

First year @ +25ºC.

Frequency Coefficient (?)

ppm/T2

-0.040

-0.030

-0.020

Operating Temperature

°C

-40

+85

See part numbering guide for options.

Turnover Temperature

°C

+20

+25

+30

Storage Temperature

°C

-55

+125

Load Capacitance

12.5

See part numbering guide for options.

Shunt Capacitance

1.4

Drive Level

µW

Insulation Resistance

500

@ 100VDC ± 15V.

Equivalent Series Resistance

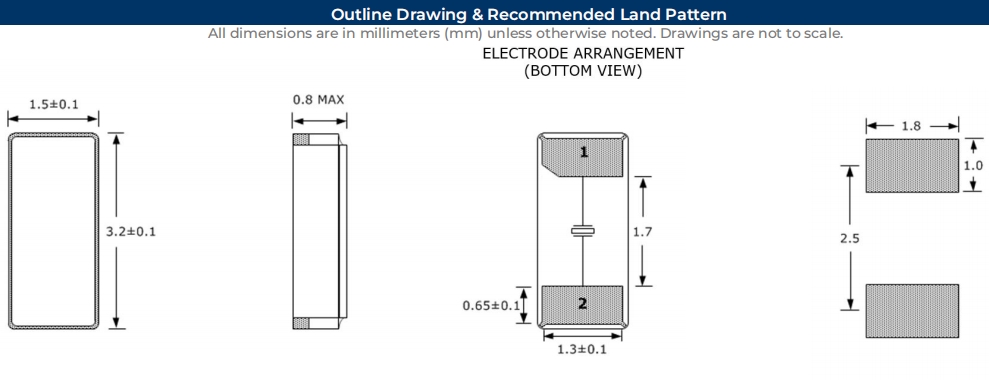

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312 尺寸圖

SWS3127D16-32.768K,3215mm,Suntsu手表晶振,SWS312

貼片晶振產品特點：

±20ppm（公差）可用

超小型封裝

磁帶和卷軸

SUNTSU Crystal編碼	Package Size	Load Cap.	Freq. Tolerance	Operating Temp.	Frequency
SWS11212D16-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS11212D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS1127D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS1129D16-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS1129D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS14412D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS14412D48B-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS1446D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS1446D48B-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS1449D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS21212D48-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS2129F48-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±10ppm	-40℃ - +85℃	32.768K
SWS31212D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS31212D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS3126D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS3126D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS3127D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS3127D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS3129D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS3129D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS41212D16-32.768K	4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS41212D48-32.768K	4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS51212D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS5127D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS5129D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS61412D48-32.768K	6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS83412D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS83412D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS8346D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS8346D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS8347D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS8347D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS8349D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS8349D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
