Suntsu手表晶體,SAW21212D4A-32.768K,鐘表電子晶振

頻率：32.768KHz

尺寸：2.0x1.2mm

Suntsu手表晶體,SAW21212D4A-32.768K,鐘表電子晶振，美國進口晶振，Suntsu松圖晶振，型號：SAW212，編碼為：SAW21212D4A-32.768K，頻率為：32.768KHz，小體積晶振尺寸：2.0x1.2mm封裝，兩腳貼片晶振，無源晶振，石英晶體諧振器，手表晶體，石英貼片晶振，SMD晶振，無鉛環保晶振，±10ppm公差可用的超小型包裝，高可靠性的汽車，可用的溫度范圍較寬，符合AEC-Q200標準，具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境特點。32.768K晶振應用于：汽車電子信息，車載控制器，娛樂系統，汽車電子，ECU子時鐘，實時時鐘，儀器儀表設備，鐘表電子晶振，時鐘晶振，智能手機，智能手表，智能門鎖，數碼電子等應用。

訂購熱線：86-0755-27838351

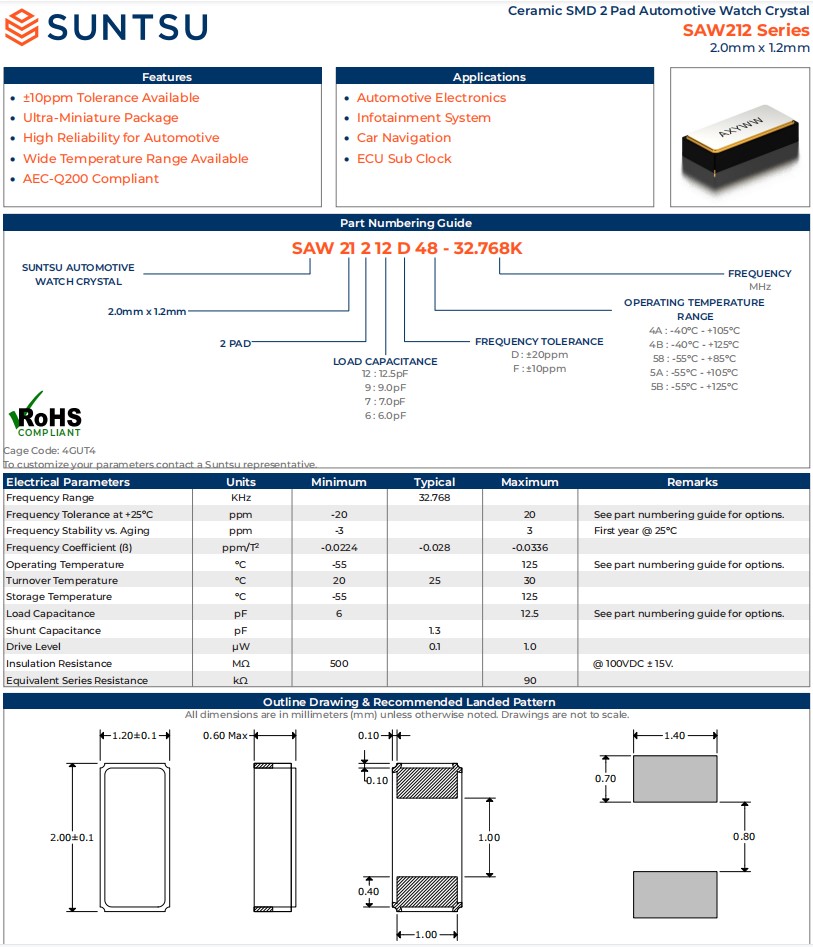

Suntsu手表晶體,SAW21212D4A-32.768K,鐘表電子晶振,參數表

Electrical Parameters	Units	Minimum	Typical	Maximum	Remarks
Frequency Range	kHz		32.768
Frequency Tolerance at +25ºC	ppm	-20		+20
Frequency Stability vs. Aging	ppm	-3		+3	First year @ +25ºC.
Frequency Coefficient (β)	ppm/T2	-0.0224	-0.028	-0.0336
Operating Temperature	°C	-55		+125	See part numbering guide for options.
Turnover Temperature	°C	+20	+25	+30
Storage Temperature	°C	-55		+125
Load Capacitance	pF	6	1.3	12.5	See part numbering guide for options.
Shunt Capacitance	pF		0.1
Drive Level	µW			1.0
Insulation Resistance	MΩ	500			@ 100VDC ± 15V.
Equivalent Series Resistance	kΩ			90

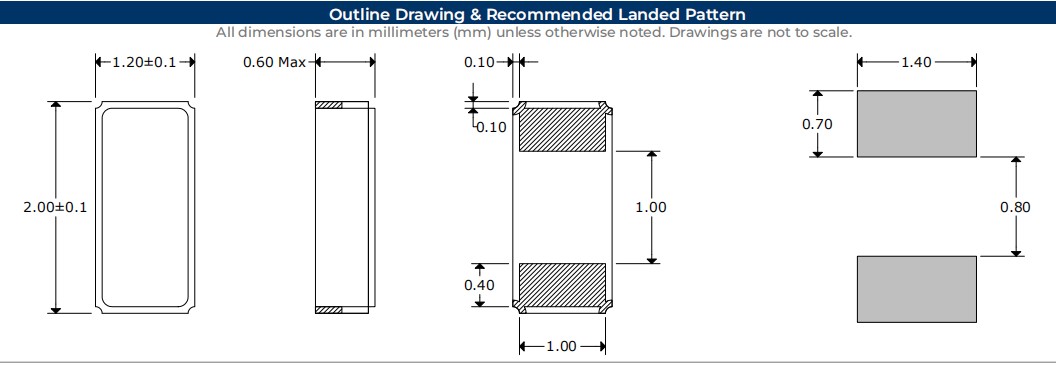

Suntsu手表晶體,SAW21212D4A-32.768K,鐘表電子晶振,尺寸圖

Suntsu手表晶體,SAW21212D4A-32.768K,鐘表電子晶振

產品特點：

小體積尺寸：2.0x1.2mm

頻率：32.768KHz石英晶振

可提供±10ppm公差
超小型封裝
汽車的高可靠性
可提供寬溫度范圍
符合AEC-Q200

應用于：汽車電子，信息娛樂系統，汽車導航，ECU子時鐘

石英晶體諧振器	包裝尺寸	負載	頻率容差	工作溫度	頻率
SWS10212D48-32.768K	1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS10209D16-32.768K	1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS10207D48-32.768K	1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS10206D16-32.768K	1.2X1.0 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS11212D16-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS11212D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS1127D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS1129D16-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS1129D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS14412D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS14412D48B-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS1446D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS1446D48B-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS1449D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS21212D48-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS2129F48-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±10ppm	-40℃ - +85℃	32.768K
SAW21212D4B-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +125℃	32.768K
SAW21209F4A-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±10ppm	-40℃ - +105℃	32.768K
SAW21207D58-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-55℃ - +85℃	32.768K
SAW21206F5B-32.768K	2.0X1.2mm 計時產品晶振	6pF	±10ppm	-55℃ - +125℃	32.768K
SWS31212D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS31212D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS3126D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS3126D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS3127D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS3127D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS3129D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS3129D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS41212D16-32.768K	4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS41212D48-32.768K	4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS51212D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS5127D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS5129D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS61412D48-32.768K	6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS83412D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS83412D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS8346D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS8346D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS8347D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS8347D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS8349D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS8349D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
