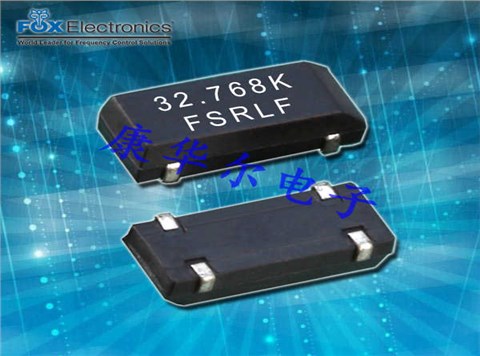

FSRLF327-6,FSRLF,32.768kHz,8038mm,FOX晶振,智能家居晶振，美國進口晶振，F(xiàn)OX晶振，?？怂咕д?，型號：FSRLF，編碼為：FSRLF327-6，頻率：32.768KHz，負載：6pF，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：8.7x3.8mm，陶瓷晶振，四腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，無鉛晶振，具有超小型晶振，輕薄型晶振，高品質晶振，高可靠性晶振，耐熱及耐環境特點。應用于：移動通訊晶振，智能家居晶振，時鐘晶振，儀器儀表設備晶振，車載晶振，無線藍牙晶振，數碼電子等應用。

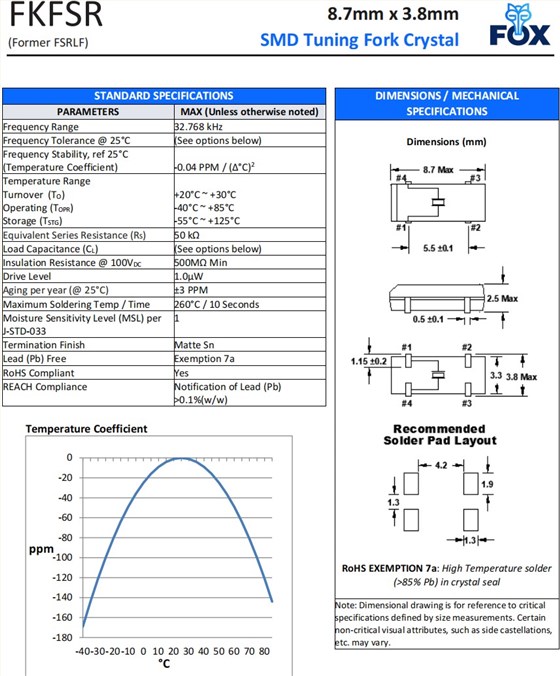

FSRLF327-6,FSRLF,32.768kHz,8038mm,FOX晶振,智能家居晶振,參數表
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||
| Frequency Range | 32.768 kHz | ||||||||||
| Frequency Tolerance @ 25°C | (See options below) | ||||||||||
|
Frequency Stability, ref 25°C (Temperature Coefficient) |
-0.04 PPM / (△°C)2 | ||||||||||
|
Temperature Range Turnover(TO) Operating (TOPR) Storage (TSTG) |
+20°C ~ +30°C -40°C ~ +85°C -55°C ~ +125°C |
||||||||||
| Equivalent Series Resistance (RS) | 50 kΩ | ||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||
| Insulation Resistance @ 100VDC | 500MΩMin | ||||||||||
| Drive Level | 1.0µW | ||||||||||
| Aging per year (@ 25°C) | ±3 PPM | ||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds | ||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
1 | ||||||||||
| Termination Finish | Matte Sn | ||||||||||
| Lead (Pb) Free | Exemption 7a | ||||||||||
| RoHS Compliant | Yes | ||||||||||
| REACH Compliance |
Notification of Lead (Pb) >0.1%(w/w) |

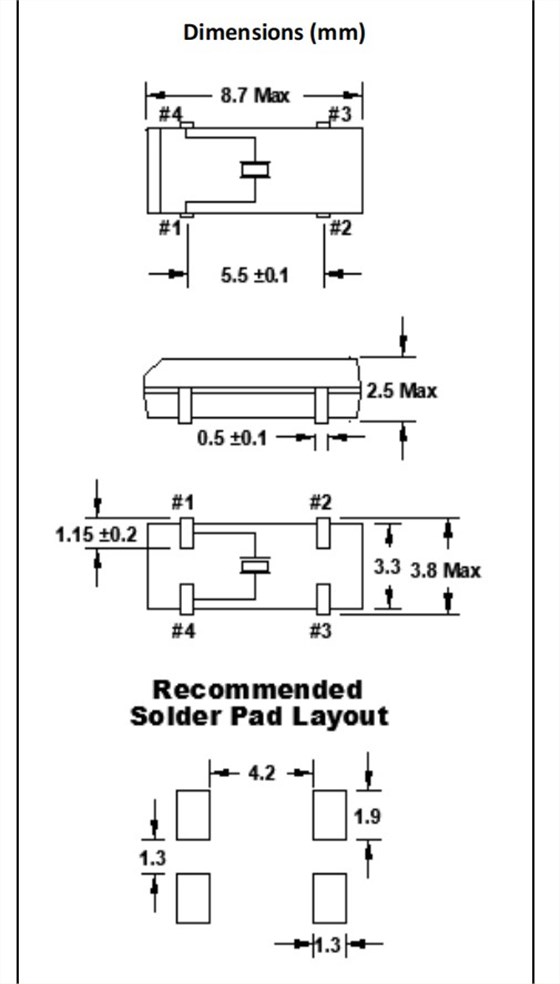

FSRLF327-6,FSRLF,32.768kHz,8038mm,FOX晶振,智能家居晶振,尺寸圖
