愛普生有源晶振X1G005591030700和無源晶振振動頻率區別
當外加交變電壓的頻率與晶片的固有頻率由晶片的尺寸和形狀決定相等時,機械振動的幅度將急劇增加,這種現象稱為壓電諧振.壓電諧振狀態的建立和維持都必須借助于振蕩器電路才能實現.愛普生貼片晶振是一個串聯型振蕩器,晶體管T1和T2構成的兩級放大器,石英晶體XT與電容C2構成LC電路.在這個電路中石英晶體相當于一個電感,C2為可變電容器,調節其容量即可使電路進入諧振狀態.

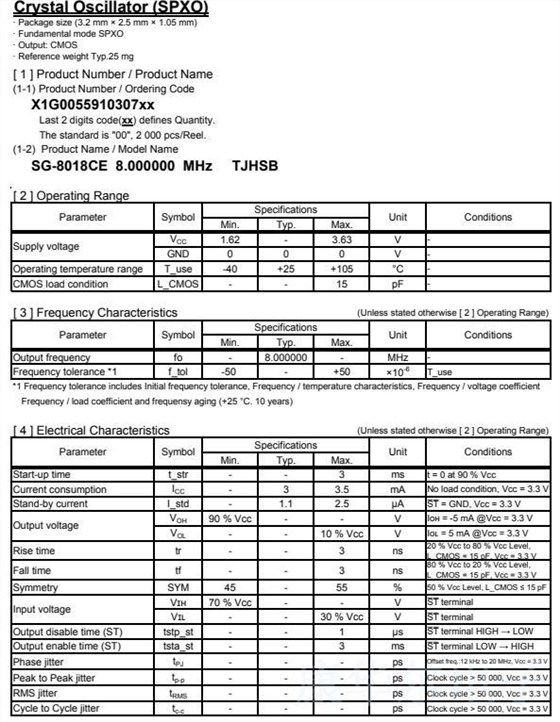

愛普生OSC晶振,X1G005591030700有源XO晶振
愛普生有源晶振編碼
型號
頻率
長X寬X高
輸出波
電源電壓
工作溫度
頻差
最大值
X1G005591029100
SG-8018CE
20.160000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029200
SG-8018CE
47.500000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029300
SG-8018CE
11.400000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029400
SG-8018CE
52.500000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591029500
SG-8018CE
12.600000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029600
SG-8018CE
66.666600MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591029700
SG-8018CE
25.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591029800
SG-8018CE
10.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591029900
SG-8018CE
50.193300MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591030000
SG-8018CE
13.330000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591030100
SG-8018CE
27.600000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591030200
SG-8018CE
68.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591030300
SG-8018CE
63.200000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤5.2mA
X1G005591030400
SG-8018CE
3.840000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591030500
SG-8018CE
20.971520MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591030600
SG-8018CE
4.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591030700
SG-8018CE
8.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591030800
SG-8018CE
7.159090MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591030900
SG-8018CE
2.048000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591031000
SG-8018CE
25.600000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591031100
SG-8018CE
30.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591031200
SG-8018CE
32.500000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591031300
SG-8018CE
22.000000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591031400
SG-8018CE
4.915200MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591031500
SG-8018CE
3.579546MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
X1G005591031600
SG-8018CE
21.250000MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤4.4mA
X1G005591031700
SG-8018CE
3.612700MHz
3.20x2.50x1.20mm
CMOS
1.620to3.630V
-40to105°C
+/-50ppm
≤3.5mA
有源晶振電路原理及與無源晶振的聯系與區別有源晶振電路及工作原理簡述有源晶振是由石英晶體組成的,石英晶片之所以能當為振蕩器使用,是基于它的壓電效應：日產晶振在晶片的兩個極上加一電場,會使晶體產生機械變形;在石英晶片上加上交變電壓,晶體就會產生機械振動,同時機械變形振動又會產生交變電場,雖然這種交變電場的電壓極其微弱,但其振動頻率是十分穩定的.
