支持輸出LVDS的OSC晶振SQG32L3D481N-212.500M非常適合基站應用，Suntsu是一家有著非凡影響力的知名晶振品牌供應商，致力于為用戶提供具有選擇空間的優良產品，并且用心打磨的每一款有源貼片晶振產品，具備非常凸出的可靠性能，使得松圖公司贏得無數的好評聲，不驕傲的松圖晶振更是想法設法為行業開創創意性十足的振蕩器，產品深受導航定位系統，無線模塊等領域的歡迎。

支持輸出LVDS的OSC晶振SQG32L3D481N-212.500M非常適合基站應用，Suntsu晶體振蕩器提供通孔或表面貼裝封裝，SPXO晶體振蕩器是一種電子電路，它利用壓電材料振動晶體的機械共振來產生頻率非常精確的電信號。該頻率通常用于記錄時間，為數字集成電路提供穩定的時鐘信號，以及穩定無線電發射機和接收機的頻率。

歐美晶振編碼	Manufacturer	Package	Logic	Jitter	Voltage	Stability	Operating Temp.
SQG32C3A071-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	0°C - +70°C
SQG32C3A16-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-10°C - +60°C
SQG32C3A161-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-10°C - +60°C
SQG32C3A17-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-10°C - +70°C
SQG32C3A171-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-10°C - +70°C
SQG32C3A27-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-20°C - +70°C
SQG32C3A271-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-20°C - +70°C
SQG32C3A38-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-30°C - +85°C
SQG32C3A381-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-30°C - +85°C
SQG32C3A48-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-40°C - +85°C
SQG32C3A481-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±50ppm	-40°C - +85°C
SQG32C3B07-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	0°C - +70°C
SQG32C3B071-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	0°C - +70°C
SQG32C3B16-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-10°C - +60°C
SQG32C3B161-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-10°C - +60°C
SQG32C3B17-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-10°C - +70°C
SQG32C3B171-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-10°C - +70°C
SQG32C3B27-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-20°C - +70°C
SQG32C3B271-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-20°C - +70°C
SQG32C3B38-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-30°C - +85°C
SQG32C3B381-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-30°C - +85°C
SQG32C3B48-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-40°C - +85°C
SQG32C3B481-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±30ppm	-40°C - +85°C
SQG32C3C07-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±25ppm	0°C - +70°C
SQG32C3C16-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±25ppm	-10°C - +60°C
SQG32C3C17-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±25ppm	-10°C - +70°C
SQG32C3C27-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±25ppm	-20°C - +70°C
SQG32C3C38-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±25ppm	-30°C - +85°C
SQG32C3C48-8.000M-250.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	CMOS	1.5ps	3.3V±5%	±25ppm	-40°C - +85°C
SQG32L2A071-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	0°C - +70°C
SQG32L2A072-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	0°C - +70°C
SQG32L2A161-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-10°C - +60°C
SQG32L2A162-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-10°C - +60°C
SQG32L2A171-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-10°C - +70°C
SQG32L2A172-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-10°C - +70°C
SQG32L2A271-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-20°C - +70°C
SQG32L2A272-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-20°C - +70°C
SQG32L2A381-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-30°C - +85°C
SQG32L2A382-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-30°C - +85°C
SQG32L2A481-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-40°C - +85°C
SQG32L2A482-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±50ppm	-40°C - +85°C
SQG32L2B071-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	0°C - +70°C
SQG32L2B072-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	0°C - +70°C
SQG32L2B161-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-10°C - +60°C
SQG32L2B162-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-10°C - +60°C
SQG32L2B171-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-10°C - +70°C
SQG32L2B172-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-10°C - +70°C
SQG32L2B271-8.000M-1500.000M	美國松圖晶振	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-20°C - +70°C
SQG32L2B272-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-20°C - +70°C
SQG32L2B381-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-30°C - +85°C
SQG32L2B382-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-30°C - +85°C
SQG32L2B481-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-40°C - +85°C
SQG32L2B482-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±30ppm	-40°C - +85°C
SQG32L2C071-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	0°C - +70°C
SQG32L2C072-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	0°C - +70°C
SQG32L2C161-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-10°C - +60°C
SQG32L2C162-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-10°C - +60°C
SQG32L2C171-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-10°C - +70°C
SQG32L2C172-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-10°C - +70°C
SQG32L2C271-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-20°C - +70°C
SQG32L2C272-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-20°C - +70°C
SQG32L2C381-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-30°C - +85°C
SQG32L2C382-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-30°C - +85°C
SQG32L2C481-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-40°C - +85°C
SQG32L2C482-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	2.5V±5%	±25ppm	-40°C - +85°C
SQG32L3A071-8.000M-1500.000M	Suntsu振蕩器	3.2X2.5 CERAMIC SMD (6 PAD) OSCILLATOR	LVDS	1.5ps	3.3V±5%	±50ppm	0°C - +70°C

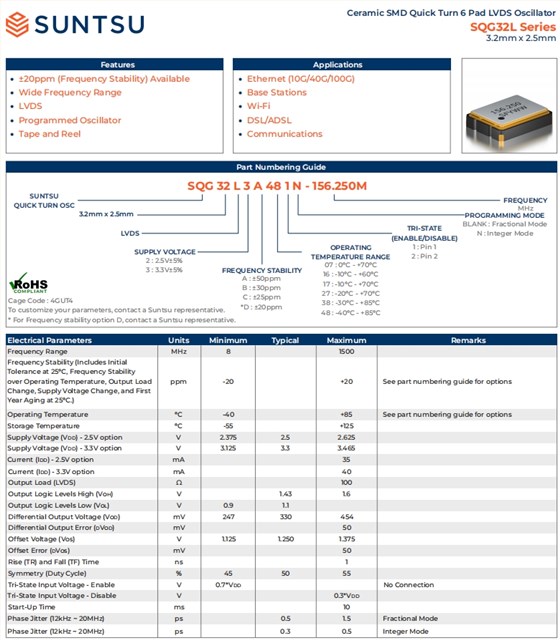

松圖發布編碼SQG32L3D481N-212.500M，型號SQG32L，尺寸為3.2X2.5，CERAMIC SMD (6 PAD) OSCILLATOR，，OSC晶振，頻率為212.500M，支持輸出LVDS，電壓為3.3V±5%，頻率穩定性為±20ppm，工作溫度-40°C - +85°C，產品特點：±20ppm(頻率穩定性)可選，寬頻率范圍，LVDS，可編程控振蕩器，磁帶和卷軸，產品主要應用范圍：以太網(10 g / 40克/100克)，基站，wi - fi，DSL / ADSL，通訊模塊等領域。
