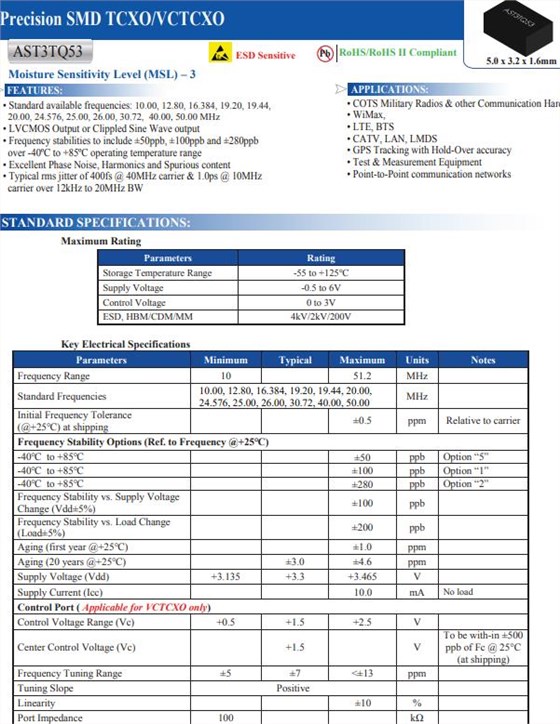

AST3TQ53-T-26.000MHZ-1-SW-T2是一款5G基礎設施應用專用的TCXO晶體振蕩器，Abracon晶振的新型溫控振蕩器 (TCXO) 系列在精確計時性能和小尺寸之間提供了理想的平衡，編碼AST3TQ53-T-26.000MHZ-1-SW-T2，以滿足新興的5G設計要求。VC/TCXO設備非常適合5G基礎設施應用，例如宏基站（AAU、DU/CU）、小型蜂窩（Micro、Pico、Femto）和 Wifi-6/6E。

Manufacturer Part Number	Manufacturer品牌	5032貼片晶振	Type 類型	Frequency 頻率	Voltage - Supply電壓	Operating Temperature 工作溫度
AST3TQ53-T-20.000MHZ-1-C-T2	Abracon晶振	AST3TQ53	TCXO	20MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-20.000MHZ-1-SW-T2	Abracon晶振	AST3TQ53	TCXO	20MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-24.576MHZ-1-C-T2	Abracon晶振	AST3TQ53	TCXO	24.576MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-24.576MHZ-1-SW-T2	Abracon晶振	AST3TQ53	TCXO	24.576MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-25.000MHZ-1-C-T2	Abracon晶振	AST3TQ53	TCXO	25MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-25.000MHZ-1-SW-T2	Abracon晶振	AST3TQ53	TCXO	25MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-26.000MHZ-1-C-T2	Abracon晶振	AST3TQ53	TCXO	26MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-26.000MHZ-1-SW-T2	Abracon晶振	AST3TQ53	TCXO	26MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-30.720MHZ-1-C-T2	Abracon晶振	AST3TQ53	TCXO	30.72MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-30.720MHZ-1-SW-T2	Abracon晶振	AST3TQ53	TCXO	30.72MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-40.000MHZ-1-C-T2	Abracon晶振	AST3TQ53	TCXO	40MHz	3.3V	-40°C ~ 85°C
AST3TQ53-T-40.000MHZ-1-SW-T2	Abracon晶振	AST3TQ53	TCXO	40MHz	3.3V	-40°C ~ 85°C
ASGTX-C-10.000MHZ-1-T2	Abracon晶振	ASGTX	VCTCXO	10MHz	3.135 V ~ 3.465 V	-30°C ~ 70°C
ASGTX-C-10.000MHZ-2-T2	Abracon晶振	ASGTX	VCTCXO	10MHz	3.135 V ~ 3.465 V	-40°C ~ 85°C
ASGTX-D-10.000MHZ-1-T2	Abracon晶振	ASGTX	VCTCXO	10MHz	3.135 V ~ 3.465 V	-30°C ~ 70°C

AST3TQ53-T-26.000MHZ-1-SW-T2是一款5G基礎設施應用專用的TCXO晶體振蕩器，網絡的云化和密集化繼續推動對5G電信技術的需求，增加了從智能設備和邊緣計算到電動汽車和汽車ADAS等應用的性能和電路板空間壓力。

超高性能TCXO晶體振蕩器以最流行的工業封裝尺寸提供高精度保持精度和溫度穩定性能。例如，7.0 x 5.0 mm AST3TDA系列可以在高達 105ºC 的高工作溫度下支持嚴格的 ±50ppb 頻率穩定性。

特征：溫度范圍內的嚴格頻率穩定性，寬 -40ºC 至 +105ºC OTR，頻率范圍：10MHz – 50MHz，可用輸出：CMOS或削波正弦波的有源晶振，提供電壓控制 (VCTCXO) 選項

應用：第 3 層，網絡路由器和交換機，COTS軍用無線電和通信硬件，無線通信，具有保持精度的GPS跟蹤，測試和測量設備，自主技術。

Abracon’s new temperature-controlled oscillator (TCXO) series provide the ideal tradeoff between precision timing performance and small size to meet emerging 5G design requirements. The VC/TCXO devices are ideal for 5G infrastructure applications such as macro base stations (AAU, DU/CU), small cells (Micro, Pico, Femto), and Wifi-6/6E.

The cloudification and densification of networks continues to propel demand for 5G telecommunication technology, increasing the performance and board space pressures placed on applications from smart devices and edge computing to electric vehicles and automotive ADAS.

The ultra-performance TCXOs deliver high precision holdover accuracy and stability over temperature performances in the most popular industry package sizes. For example, the 7.0 x 5.0 mm AST3TDA series can support a tight ±50ppb frequency stability up to a high 105ºC operating temperature.

Features

Tight Frequency Stability Over Temperature

Wide -40ºC to +105ºC OTR

Frequency Range: 10 MHz – 50 MHz

Available Outputs: CMOS or Clipped Sine Wave

Voltage-Control (VCTCXO) Option Available

Applications

Stratum 3

Network Routers and Switches

COTS Military Radios & Communication Hardware

Wireless Communication

GPS Tracking with Hold-Over Accuracy

Test & Measurement Equipment

Autonomous Technologies
