Austin, Texas– Abracon, LLC (Abracon), The Heartbeat of the IoT®, a leading global manufacturer of frequency control, timing, synchronization, RF, connectivity and power solutions, expanded its offering of SMD oven-controlled crystal oscillators (OCXO), with theAOC2012,AOC1409andAOC2522A/AOC2522B.

德克薩斯州奧斯汀– Abracon, LLC (Abracon), The Heartbeat of the IoT® 是全球領先的頻率控制、定時、同步、射頻、連接和電源解決方案制造商，擴大了其 SMD 恒溫控制晶體振蕩器 (OCXO) 的供應，搭配AOC2012、AOC1409和AOC2522A/AOC2522B。AOC1409VAUC-20.0000C高頻率的OCXO恒溫振蕩器,適用于航空航天

These OCXO solutions employ a precision SC-cut high “Q” quartz crystal resonator design, coupled with precision temperature monitoring and control circuitry. This combination enables Abracon to meet Stratum 3 and 3E requirements with this family of OCXOs.

這些 OCXO晶體振蕩器解決方案采用精密SC 切割高“Q”石英晶體諧振器設計，以及精密溫度監測和控制電路。這種組合使 Abracon 能夠通過該OCXO系列滿足Stratum 3和3E要求。

This family of OCXOs works ideally for 5G or GPS applications requiring high frequency stability with low phase noise and precision holdover performances, such as base stations, small cell platforms, internet data centers, and satellite and aerospace communications.

該OCXO系列非常適用于需要高頻率穩定性、低相位噪聲和精確保持性能的5G或GPS應用，例如基站、小型蜂窩平臺、互聯網數據中心以及衛星和航空航天通信。AOC1409VAUC-20.0000C高頻率的OCXO恒溫振蕩器,適用于航空航天

AOCJY2A-26.000MHZ-F-SW	Abracon晶振	AOCJY2	OCXO	26MHz	5V	-40°C ~ 75°C
AOCJY2A-38.880MHZ-F	Abracon晶振	AOCJY2	OCXO	38.88MHz	5V	-40°C ~ 75°C
AOCJY2A-38.880MHZ-F-SW	Abracon晶振	AOCJY2	OCXO	38.88MHz	5V	-40°C ~ 75°C
AOCJY2A-40.000MHZ-F	Abracon晶振	AOCJY2	OCXO	40MHz	5V	-40°C ~ 75°C
AOCJY2A-40.000MHZ-F-SW	Abracon晶振	AOCJY2	OCXO	40MHz	5V	-40°C ~ 75°C
AOCJY3-10.000MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	10MHz	3.3V	-40°C ~ 75°C
AOCJY3-100.000MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	100MHz	3.3V	-40°C ~ 75°C
AOCJY3-12.800MHZ-F	Abracon晶振	AOCJY3	OCXO	12.8MHz	3.3V	-40°C ~ 75°C
AOCJY3-12.800MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	12.8MHz	3.3V	-40°C ~ 75°C
AOCJY3-13.000MHZ-F	Abracon晶振	AOCJY3	OCXO	13MHz	3.3V	-40°C ~ 75°C
AOCJY3-13.000MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	13MHz	3.3V	-40°C ~ 75°C
AOCJY3-26.000MHZ-F	Abracon晶振	AOCJY3	OCXO	26MHz	3.3V	-40°C ~ 75°C
AOCJY3-26.000MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	26MHz	3.3V	-40°C ~ 75°C
AOCJY3-38.880MHZ-F	Abracon晶振	AOCJY3	OCXO	38.88MHz	3.3V	-40°C ~ 75°C
AOCJY3-38.880MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	38.88MHz	3.3V	-40°C ~ 75°C
AOCJY3-40.000MHZ-F	Abracon晶振	AOCJY3	OCXO	40MHz	3.3V	-40°C ~ 75°C
AOCJY3-40.000MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	40MHz	3.3V	-40°C ~ 75°C
AOCJY3A-10.000MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	10MHz	5V	-40°C ~ 75°C
AOCJY3A-100.000MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	100MHz	5V	-40°C ~ 75°C
AOCJY3A-12.800MHZ-F	Abracon晶振	AOCJY3	OCXO	12.8MHz	5V	-40°C ~ 75°C
AOCJY3A-12.800MHZ-F-SW	Abracon晶振	AOCJY3	OCXO	12.8MHz	5V	-40°C ~ 75°C
AOCJY3A-13.000MHZ-F	Abracon晶振	AOCJY3	OCXO	13MHz	5V	-40°C ~ 75°C

Precision stability over temperature combined with an ultra-low ±1ppb daily aging enables a ±15ppb, 24-hour holdover accuracy, depending on system conditions. Holdover extends a system’s useful operating period in the event it loses its reference clock, which is an important consideration when designing RF, networking, telecommunications, GPS and reference-timing applications. Additionally, tight short-term stability improves acquisition time in low-bandwidth phase-locked loops and overall accuracy in GPS applications.

溫度范圍內的精確穩定性與超低的 ±1ppb 每日老化相結合，可實現 ±15ppb 的 24 小時保持精度，具體取決于系統條件。如果系統丟失參考時鐘，保持時間會延長系統的有效運行期，這是歐美晶振設計射頻、網絡、電信、GPS 和參考定時應用時的一個重要考慮因素。此外，嚴格的短期穩定性提高了低帶寬鎖相環的采集時間和 GPS 應用的整體精度。

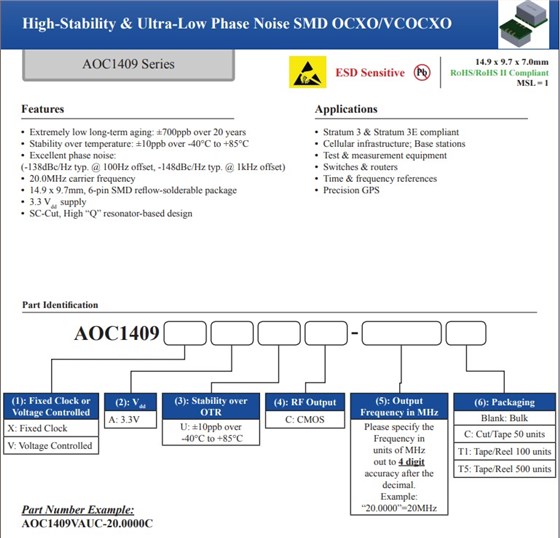

TheAOC1409supports the 20MHz frequency in a small 14.9 x 9.7 x 7.0 (6-pin) package. TheAOC2012has a 20.32 x 12.70 x 11.00mm SMD (4-pin) package and a -20°C to +70°C operating temperature range. The AOC2522 series features ±750ppb long-term aging and is available in a 25.4 x 22 x 12.7mm (5-pad) package size. The AOC1409 and AOC2522 offer a -40°C to +85°C operating temperature range.

Abracon有源晶振AOC1409在小型 14.9 x 9.7 x 7.0（6 引腳）封裝中支持 20MHz 頻率。AOC2012采用20.32 x 12.70 x 11.00mm SMD（4 引腳）封裝，工作溫度范圍為 -20°C 至 +70°C。AOC2522 系列具有 ±750ppb 的長期老化特性，采用 25.4 x 22 x 12.7mm（5 焊盤）封裝尺寸。AOC1409 和 AOC2522 提供 -40°C 至 +85°C 的工作溫度范圍。

20.8 x 13.2 x 8.2 mm引入RoHS合規可再焊封裝

AT-Cut，高“Q”諧振器基于設計

正波或CMOS射頻輸出
