當前位置：首頁 » 歐美晶振 » Microchip晶振 » Microchip貼片振蕩器|6G移動應用晶振|DSC1001CI1-048.0000

prevnext

Microchip貼片振蕩器|6G移動應用晶振|DSC1001CI1-048.0000

頻率：48MHZ

尺寸：3.20mmx2.50mm

Microchip貼片振蕩器|6G移動應用晶振|DSC1001CI1-048.0000，尺寸3.20mmx2.50mm，頻率48MHZ，輸出邏輯 CMOS，電壓1.8V ~ 3.3V，腳位4-SMD，XO時鐘振蕩器（標準），Microchip振蕩器，歐美進口晶振，有源貼片晶振，有源晶體振蕩器，MEMS晶振，OSC晶振，CMOS輸出晶振，低電壓有源晶振，低功耗有源晶振，低相位有源晶振，高性能有源晶振，小體積有源晶振，移動應用有源晶振，消費電子專用有源晶振，便攜式電子產品晶振，工業應用有源晶振，監控?cái)z像頭晶振，具有超高的穩定性能以及耐壓性能，很適合用于移動應用程序，消費類電子產品，便攜式電子設備，DVR、CCTV、監控?cái)z像頭，低姿態應用，工業應用等領域。

DSC1001/3/4是一種基于硅MEMS的CMOS系列SPXO晶體振蕩器，在大范圍的電源電壓和溫度范圍內提供優異的抖動和穩定性能。該設備的工作范圍為1 MHz至150 MHz，電源電壓在1.8至3.3伏之間，溫度范圍高達-40°C至105°C。DSC1001/3/4包含了一個全硅諧振器，它非常堅固，幾乎不受應力相關裂縫的影響，這是晶體振蕩器常見的。在不犧牲當今系統所需的性能和穩定性的情況下，無晶體設計允許更高水平的可靠性，使DSC1001/3/4非常適合堅固、工業和便攜式的應用，其中應力、沖擊和振動可能會損壞基于石英晶體的系統。DSC1001/3/4有工業標準軟件包，可以“插入”到與標準有源晶體振蕩器相同的PCB足跡。DSC1003和DSC1004具有與DSC1001相同的功能和性能，但分別具有更高的輸出驅動器，分別為25pF和40pF.Microchip貼片振蕩器|6G移動應用晶振|DSC1001CI1-048.0000.

訂購熱線：86-0755-27838351

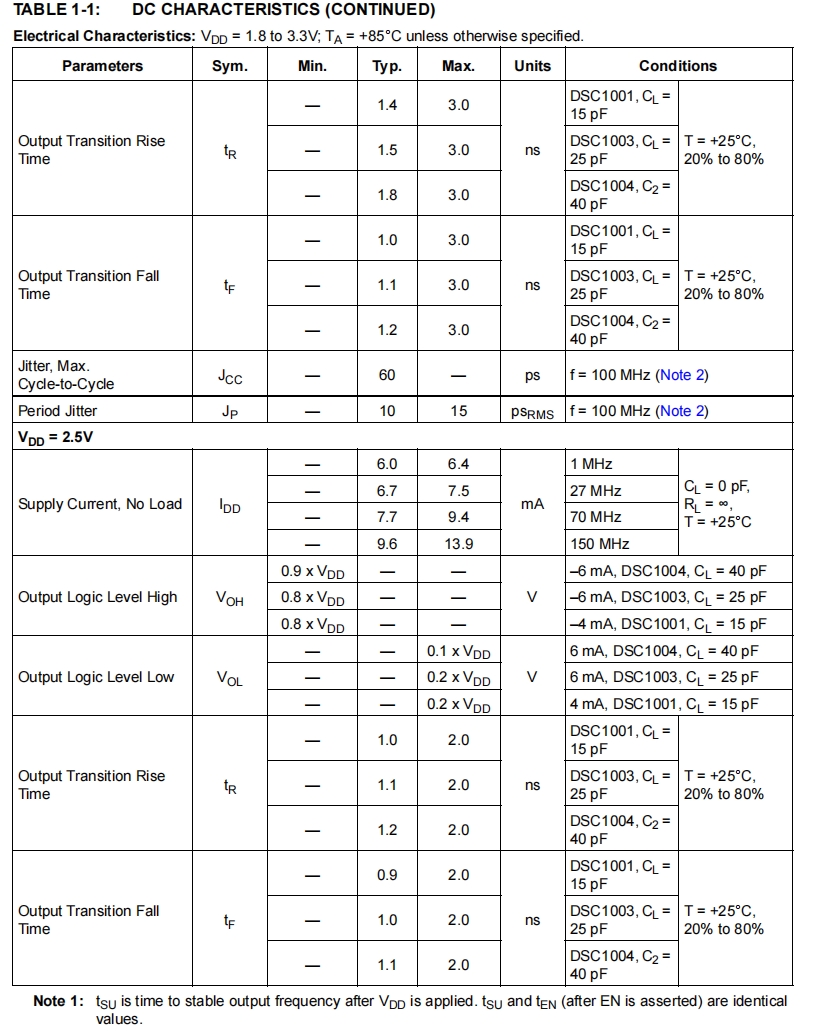

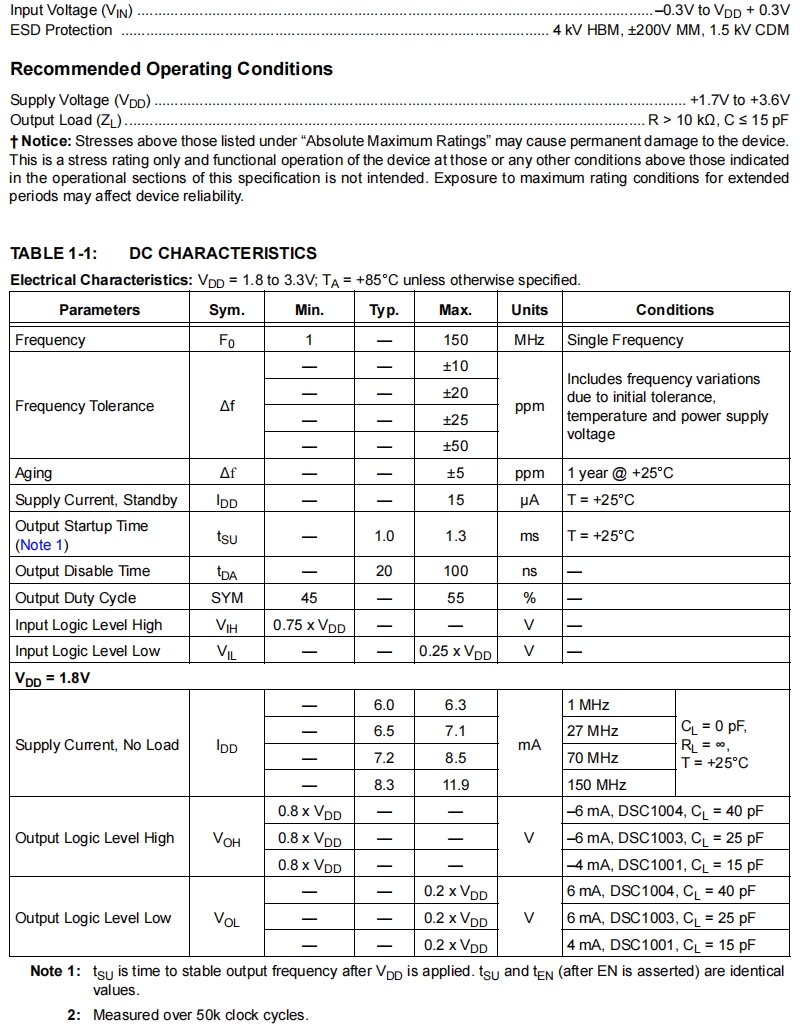

Microchip貼片振蕩器|6G移動應用晶振|DSC1001CI1-048.0000 參數表

Parameters

Sym.

Min.

Typ.

Max.

Units

Conditions

Frequency

MHz

Single Frequency

Frequency Tolerance

Δf

±10

ppm

Includes frequency variations
due to initial tolerance,
temperature and power supply
voltage

±20

—

±25

±50

Aging

Δf

±5

ppm

1 year @ +25°C

Supply Current, Standby

IDD

—

µA

T = +25°C

Output Startup Time
(Note 1)

tSU

—

1.0

1.3

T = +25°C

Output Disable Time

tDA

100

Output Duty Cycle

SYM

Input Logic Level High

VIH

0.75 x V DD

—

Input Logic Level Low

VIL

0.25 x V DD

V DD = 1.8V

Supply Current, No Load

IDD

—

6.0

6.3

1 MHz

  CL = 0 pF,
  RL = ∞ ,
  T = +25°C

6.5

7.1

27 MHz

7.2

8.5

70 MHz

—

8.3

11.9

150 MHz

Output Logic Level High

V OH

0.8 x V DD

–6 mA, DSC1004, CL = 40 pF

0.8 x V DD

–6 mA, DSC1003, CL = 25 pF

0.8 x V DD

—

–4 mA, DSC1001, CL = 15 pF

Output Logic Level Low

VOL

—

0.2 x V DD

6 mA, DSC1004, CL = 40 pF

0.2 x V DD

6 mA, DSC1003, CL = 25 pF

—

0.2 x V DD

4 mA, DSC1001, CL = 15 pF

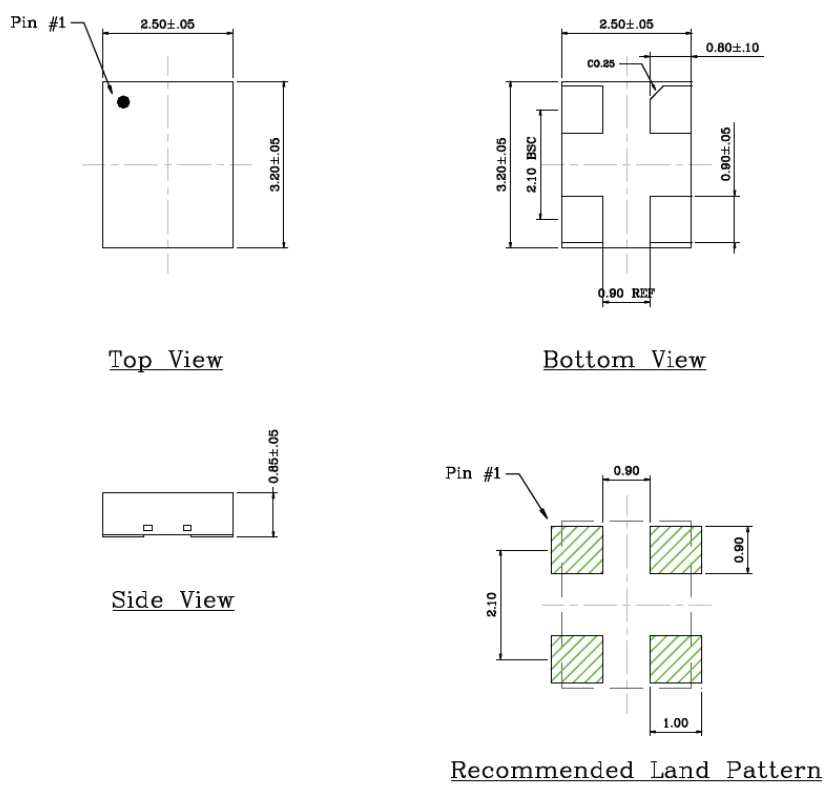

Microchip貼片振蕩器|6G移動應用晶振|DSC1001CI1-048.0000 尺寸圖 DSC1001 DSC1003 DSC1004

有源晶振產品特性：

頻率范圍： 1MHz至150MHz在溫度下的異常

穩定性- ±10 ppm，±20 ppm，±25 ppm，±50 ppm

工作電壓- 1.7至3.6V工作溫度范圍- Ext

工業-40°至105°-工業-40°至85°-商用-20°至70°

低運行和備用電流-6 mA運行（1MHz）

15µA備用（最大）

超微型足跡- 2.5毫米x 2.0毫米x 0.85毫米- 3.2毫米x 2.5毫米x 0.85毫米

- 5.0毫米x 3.2毫米x 0.85毫米- 7.0毫米x 5.0毫米x 0.85毫米

MIL-STD 883無沖擊和抗振動Pb，RoHS，

達到SVHC符合AEC-Q100可靠性合格

更多相關Microchip晶振型號

Manufacturer Part Number原廠代碼	晶振廠家	Series型號	Type 類型	Frequency 頻率	Voltage - Supply電壓
DSC1001DL5-025.0000	Microchip Technology	DSC1001	MEMS (Silicon)	25MHz	1.8 V ~ 3.3 V
DSC1001CE2-006.0000	Microchip Technology	DSC1001	MEMS (Silicon)	6MHz	1.8 V ~ 3.3 V
DSC1001CI1-050.0000	Microchip Technology	DSC1001	MEMS (Silicon)	50MHz	1.8 V ~ 3.3 V
DSC1001CI2-012.0000	Microchip Technology	DSC1001	MEMS (Silicon)	12MHz	1.8 V ~ 3.3 V
DSC1001CI2-033.3333	Microchip Technology	DSC1001	MEMS (Silicon)	33.3333MHz	1.8 V ~ 3.3 V
DSC1001CI5-004.9152	Microchip Technology	DSC1001	MEMS (Silicon)	4.9152MHz	1.8 V ~ 3.3 V
DSC1122CI5-200.0000	Microchip Technology	DSC1122	MEMS (Silicon)	200MHz	2.25 V ~ 3.6 V
DSC1001CI1-048.0000	Microchip Technology	DSC1001	MEMS (Silicon)	48MHz	1.8 V ~ 3.3 V
DSC1001CI1-026.0000	Microchip Technology	DSC1001	MEMS (Silicon)	26MHz	1.8 V ~ 3.3 V
DSC1001AI2-050.0000	Microchip Technology	DSC1001	MEMS (Silicon)	50MHz	1.8 V ~ 3.3 V
DSC1001AL2-027.0000	Microchip Technology	DSC1001	MEMS (Silicon)	27MHz	1.8 V ~ 3.3 V
DSC6083HE1A-032K800T	Microchip Technology	DSC60XX	MEMS (Silicon)	32.8kHz	1.71 V ~ 3.63 V
DSC6011HI1A-002.5000T	Microchip Technology	DSC60XX	MEMS (Silicon)	2.5MHz	1.71 V ~ 3.63 V
DSC6013HI1A-002.5000T	Microchip Technology	DSC60XX	MEMS (Silicon)	2.5MHz	1.71 V ~ 3.63 V
DSC6083HI2A-002K000T	Microchip Technology	DSC60XX	MEMS (Silicon)	2kHz	1.71 V ~ 3.63 V
DSC6083CI2A-032K768	Microchip Technology	DSC60XX	MEMS (Silicon)	32.768kHz	1.71 V ~ 3.63 V
DSC6001CI2A-016.0000	Microchip Technology	DSC60XX	MEMS (Silicon)	16MHz	1.71 V ~ 3.63 V
DSC6003CI2A-012.0000	Microchip Technology	DSC60XX	MEMS (Silicon)	12MHz	1.8 V ~ 3.3 V
DSC6003CI2A-024.0000	Microchip Technology	DSC60XX	MEMS (Silicon)	24MHz	1.8 V ~ 3.3 V
DSC6003CI2A-016.0000	Microchip Technology	DSC60XX	MEMS (Silicon)	16MHz	1.8 V ~ 3.3 V
DSC6101CI2A-027.0000	Microchip Technology	DSC6100	MEMS (Silicon)	27MHz	1.71 V ~ 3.63 V
DSC6111CI2A-012.0000	Microchip Technology	DSC6100	MEMS (Silicon)	12MHz	1.71 V ~ 3.63 V
DSC6102CI2A-100.0000	Microchip Technology	DSC6100	MEMS (Silicon)	100MHz	1.71 V ~ 3.63 V
DSC6101CI2A-050.0000	Microchip Technology	DSC6100	MEMS (Silicon)	50MHz	1.71 V ~ 3.63 V
DSC6101CI2A-025.0000	Microchip Technology	DSC6100	MEMS (Silicon)	25MHz	1.71 V ~ 3.63 V
DSC6003JI2A-048.0000	Microchip Technology	DSC60XX	MEMS (Silicon)	48MHz	1.71 V ~ 3.63 V
DSC6101JI2A-026.0000	Microchip Technology	DSC6100	MEMS (Silicon)	26MHz	1.71 V ~ 3.63 V
DSC6101JI2A-048.0000	Microchip Technology	DSC6100	MEMS (Silicon)	48MHz	1.71 V ~ 3.63 V
DSC6003JI2A-016.0000	Microchip Technology	DSC60XX	MEMS (Silicon)	16MHz	1.8 V ~ 3.3 V
DSC6101JI2A-012.2880	Microchip Technology	DSC6100	MEMS (Silicon)	12.288MHz	1.71 V ~ 3.63 V
DSC6101JI2A-050.0000	Microchip Technology	DSC6100	MEMS (Silicon)	50MHz	1.71 V ~ 3.63 V
DSC6102JI2A-100.0000	Microchip Technology	DSC6100	MEMS (Silicon)	100MHz	1.71 V ~ 3.63 V
DSC6111JI2A-024.0000	Microchip Technology	DSC6100	MEMS (Silicon)	24MHz	1.71 V ~ 3.63 V
DSC6101JI2A-012.0000	Microchip Technology	DSC6100	MEMS (Silicon)	12MHz	1.71 V ~ 3.63 V
DSC6101JI2A-027.0000	Microchip Technology	DSC6100	MEMS (Silicon)	27MHz	1.71 V ~ 3.63 V
DSC1121CI2-050.0000	Microchip Technology	DSC1121	MEMS (Silicon)	50MHz	2.25 V ~ 3.6 V
DSC1121CI2-025.0000	Microchip Technology	DSC1121	MEMS (Silicon)	25MHz	2.25 V ~ 3.6 V
DSC1121BI2-025.0007	Microchip Technology	DSC1121	MEMS (Silicon)	25.0007MHz	2.25 V ~ 3.6 V
DSC1121AE2-025.0000	Microchip晶振	DSC1121	MEMS (Silicon)	25MHz	2.25 V ~ 3.6 V
DSC1101CI1-025.0000	Microchip Technology	DSC1101	MEMS (Silicon)	25MHz	2.25 V ~ 3.6 V
DSC1001CC1-008.0000	Microchip Technology	DSC1001	MEMS (Silicon)	8MHz	1.8 V ~ 3.3 V
DSC1101DL1-027.0000	Microchip Technology	DSC1101	MEMS (Silicon)	27MHz	2.25 V ~ 3.6 V
DSC1001CE1-066.6666	Microchip Technology	DSC1001	MEMS (Silicon)	66.6666MHz	1.8 V ~ 3.3 V
DSC1001CE1-019.2000	Microchip Technology	DSC1001	MEMS (Silicon)	19.2MHz	1.8 V ~ 3.3 V
DSC1033CE2-022.5792	Microchip Technology	DSC1033	MEMS (Silicon)	22.5792MHz	3.3V
DSC1001DI1-004.9152	Microchip Technology	DSC1001	MEMS (Silicon)	4.9152MHz	1.8 V ~ 3.3 V
DSC1033AE1-024.0000	Microchip Technology	DSC1033	MEMS (Silicon)	24MHz	3.3V
DSC1001AC1-027.0000	Microchip Technology	DSC1001	MEMS (Silicon)	27MHz	1.8 V ~ 3.3 V
DSC1033CE2-074.2500	Microchip Technology	DSC1033	MEMS (Silicon)	74.25MHz	3.3V
DSC1033BE1-050.0000	Microchip Technology	DSC1033	MEMS (Silicon)	50MHz	3.3V
DSC1001AC1-008.0000	Microchip Technology	DSC1001	MEMS (Silicon)	8MHz	1.7 V ~ 3.6 V
DSC1033DI1-048.0000	Microchip Technology	DSC1033	MEMS (Silicon)	48MHz	3.3V
