當前位置：首頁 » 歐美晶振 » MMDCOMP晶振 » WC315蠟燭燈晶振,麥迪康時鐘晶體,WC315-32.768KHZ-T

prevnext

WC315蠟燭燈晶振,麥迪康時鐘晶體,WC315-32.768KHZ-T

頻率：32.768KHZ

尺寸：3.2x1.5mm

WC315蠟燭燈晶振,麥迪康時鐘晶體,WC315-32.768KHZ-T，尺寸3.2x1.5mm，頻率32.768KHZ，Mmdcomp無源晶振，歐美進口晶振，無源晶振，32.768K時鐘晶振，SMD晶振，無源貼片晶體，3215mm超小型晶振，32.768KHZ音叉晶振，無源諧振器，陶瓷晶振，SMD諧振器，進口陶瓷諧振器，蠟燭燈專用晶振，計時器晶振，收音機晶振，無線藍牙晶振，移動通信晶振，網絡設備晶振，數碼電子晶振，數字游戲機晶振，數字水電晶振，低損耗晶振，低功耗晶振，高品質晶振，具有高品質低損耗的特點。

陶瓷晶振產品特別適合用于蠟燭燈，還可以廣泛應用于蠟燭燈，計時器，收音機，無線藍牙，移動通信，網絡設備，數碼電子，數字游戲機，數字水電等應用。WC315蠟燭燈晶振,麥迪康時鐘晶體,WC315-32.768KHZ-T.

訂購熱線：86-0755-27838351

WC315蠟燭燈晶振,麥迪康時鐘晶體,WC315-32.768KHZ-T 參數表

Frequency

32.768KHZ

Frequency Tolerance at +25°C

±20 ppm

Load Capacitance

12.5pF

Operating Temperature

-40。C to +85。C

Storage Temperature

-55。C to +125。C

Turnover Temperature

+25。C ±5。C

Stability

-0.035 ppm / (change in 。C)2 max parabolic curve

Equivalent Series Resistance

70k Ohms Max

Drive Level

1uW max

Aging

±3 ppm first year

Quality Factor

30000 typ

Shunt Capacitance

1.05pF Max

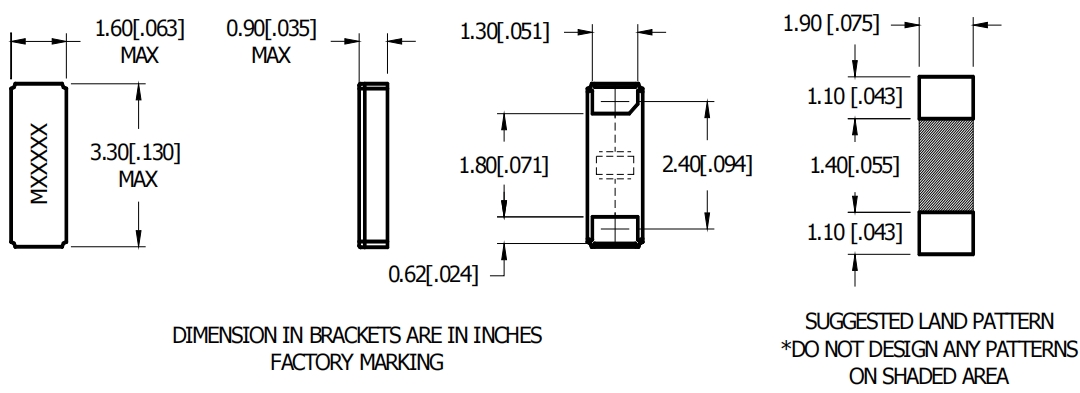

WC315蠟燭燈晶振,麥迪康時鐘晶體,WC315-32.768KHZ-T 尺寸圖

WC315蠟燭燈晶振,麥迪康時鐘晶體,WC315-32.768KHZ-T

產品特點：

陶瓷SMD音叉表晶

32.768KHZ

符合RoHS

提供帶卷包裝

Mfr Part #	Mfr	Description	Series	Frequency	Frequency Stability
WC146SMF-32.768KHZ-T	麥迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	WC146SM	32.768 kHz	-
DF18CC1-4.000MHZ-T	麥迪康晶振	CRYSTAL 4.0000MHZ 18PF SMD	D	4 MHz	±30ppm
DF18CC1-16.384MHZ-T	麥迪康晶振	CRYSTAL 16.3840MHZ 18PF SMD	D	16.384 MHz	±30ppm
MMC-463F-32.768KHZ-T	麥迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	MMC	32.768 kHz	-
WC315-32.768KHZ-T	麥迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	WC315	32.768 kHz	-
DF18CC1-9.8304MHZ-T	麥迪康晶振	CRYSTAL 9.8304MHZ 18PF SMD	D	9.8304 MHz	±30ppm
DF18CC1-16.000MHZ-T	麥迪康晶振	CRYSTAL 16.0000MHZ 18PF SMD	D	16 MHz	±30ppm
DF18CC1-10.000MHZ-T	麥迪康晶振	CRYSTAL 10.0000MHZ 18PF SMD	D	10 MHz	±30ppm
DF18CC1-10.240MHZ-T	麥迪康晶振	CRYSTAL 10.2400MHZ 18PF SMD	D	10.24 MHz	±30ppm
DF18CC1-3.6864MHZ-T	麥迪康晶振	CRYSTAL 3.6864MHZ 18PF SMD	D	3.6864 MHz	±30ppm
DF18CC1-4.500MHZ-T	麥迪康晶振	CRYSTAL 4.5000MHZ 18PF SMD	D	4.5 MHz	±30ppm
DF18CC1-15.000MHZ-T	麥迪康晶振	CRYSTAL 15.0000MHZ 18PF SMD	D	15 MHz	±30ppm
DF18CC1-3.579545MHZ-T	麥迪康晶振	CRYSTAL 3.579545MHZ 18PF SMD	D	3.579545 MHz	±30ppm
DF18CC1-13.000MHZ-T	麥迪康晶振	CRYSTAL 13.0000MHZ 18PF SMD	D	13 MHz	±30ppm
DF18CC1-14.31818MHZ-T	麥迪康晶振	CRYSTAL 14.31818MHZ 18PF SMD	D	14.31818 MHz	±30ppm
T10GC1-20.000MHZ-T	麥迪康晶振	CRYSTAL 20.0000MHZ 10PF SMD	T	20 MHz	±30ppm
X10CB1-40.000MHZ-T	麥迪康晶振	CRYSTAL 40.0000MHZ 10PF SMD	X	40 MHz	±30ppm
X10CB1-30.000MHZ-T	麥迪康晶振	CRYSTAL 30.0000MHZ 10PF SMD	X	30 MHz	±30ppm
X10CB1-24.576MHZ-T	麥迪康晶振	CRYSTAL 24.5760MHZ 10PF SMD	X	24.576 MHz	±30ppm
X10CB1-22.1184MHZ-T	麥迪康晶振	CRYSTAL 22.1184MHZ 10PF SMD	X	22.1184 MHz	±30ppm
X10CB1-27.000MHZ-T	麥迪康晶振	CRYSTAL 27.0000MHZ 10PF SMD	X	27 MHz	±30ppm
X10CB1-32.000MHZ-T	麥迪康晶振	CRYSTAL 32.0000MHZ 10PF SMD	X	32 MHz	±30ppm
X10CB1-25.000MHZ-T	麥迪康晶振	CRYSTAL 25.0000MHZ 10PF SMD	X	25 MHz	±30ppm
DF18CC1-20.000MHZ-T	麥迪康晶振	CRYSTAL 20.0000MHZ 18PF SMD	D	20 MHz	±30ppm
DF18CC1-24.576MHZ-T	麥迪康晶振	CRYSTAL 24.5760MHZ 18PF SMD	D	24.576 MHz	±30ppm
DF18CC1-4.433619MHZ-T	MMDCOMP Crystal	CRYSTAL 4.433619MHZ 18PF SMD	D	4.433619 MHz	±30ppm
DF18CC1-19.6608MHZ-T	麥迪康晶振	CRYSTAL 19.6608MHZ 18PF SMD	D	19.6608 MHz	±30ppm
DF18CC1-14.7456MHZ-T	麥迪康晶振	CRYSTAL 14.7456MHZ 18PF SMD	D	14.7456 MHz	±30ppm
DF18CC1-30.000MHZ-T	麥迪康晶振	CRYSTAL 30.0000MHZ 18PF SMD	D	30 MHz	±30ppm
DF18CC1-16.9344MHZ-T	麥迪康晶振	CRYSTAL 16.9344MHZ 18PF SMD	D	16.9344 MHz	±30ppm
DF18CC1-6.144MHZ-T	麥迪康晶振	CRYSTAL 6.1440MHZ 18PF SMD	D	6.144 MHz	±30ppm
DF18CC1-7.3728MHZ-T	麥迪康晶振	CRYSTAL 7.3728MHZ 18PF SMD	D	7.3728 MHz	±30ppm
DF18CC1-4.194304MHZ-T	麥迪康晶振	CRYSTAL 4.194304MHZ 18PF SMD	D	4.194304 MHz	±30ppm
DF18CC1-18.432MHZ-T	麥迪康晶振	CRYSTAL 18.4320MHZ 18PF SMD	D	18.432 MHz	±30ppm
DF18CC1-15.360MHZ-T	麥迪康晶振	CRYSTAL 15.3600MHZ 18PF SMD	D	15.36 MHz	±30ppm
DF18CC1-6.7458MHZ-T	麥迪康晶振	CRYSTAL 6.7458MHZ 18PF SMD	D	6.7458 MHz	±30ppm
DF18CC1-18.000MHZ-T	麥迪康晶振	CRYSTAL 18.0000MHZ 18PF SMD	D	18 MHz	±30ppm
DF18CC1-12.000MHZ-T	麥迪康晶振	CRYSTAL 12.0000MHZ 18PF SMD	D	12 MHz	±30ppm
DF18CC1-4.9152MHZ-T	麥迪康晶振	CRYSTAL 4.9152MHZ 18PF SMD	D	4.9152 MHz	±30ppm
DF18CC1-28.63636MHZ-T	麥迪康晶振	CRYSTAL 28.63636MHZ 18PF SMD	D	28.63636 MHz	±30ppm
DF18CC1-6.000MHZ-T	麥迪康晶振	CRYSTAL 6.0000MHZ 18PF SMD	D	6 MHz	±30ppm
DF18CC1-5.000MHZ-T	麥迪康晶振	CRYSTAL 5.0000MHZ 18PF SMD	D	5 MHz	±30ppm
DF18CC1-13.500MHZ-T	麥迪康晶振	CRYSTAL 13.5000MHZ 18PF SMD	D	13.5 MHz	±30ppm
DF18CC1-24.000MHZ-T	麥迪康晶振	CRYSTAL 24.0000MHZ 18PF SMD	D	24 MHz	±30ppm
DF18CC1-11.0592MHZ-T	麥迪康晶振	CRYSTAL 11.0592MHZ 18PF SMD	D	11.0592 MHz	±30ppm
DF18CC1-9.216MHZ-T	麥迪康晶振	CRYSTAL 9.2160MHZ 18PF SMD	D	9.216 MHz	±30ppm
DF18CC1-12.288MHZ-T	麥迪康晶振	CRYSTAL 12.2880MHZ 18PF SMD	D	12.288 MHz	±30ppm
T10GC1-22.1184MHZ-T	麥迪康晶振	CRYSTAL 22.1184MHZ 10PF SMD	T	22.1184 MHz	±30ppm
T10GC1-24.000MHZ-T	麥迪康晶振	CRYSTAL 24.0000MHZ 10PF SMD	T	24 MHz	±30ppm
T10GC1-19.200MHZ-T	麥迪康晶振	CRYSTAL 19.2000MHZ 10PF SMD	T	19.2 MHz	±30ppm
T10GC1-24.576MHZ-T	麥迪康晶振	CRYSTAL 24.5760MHZ 10PF SMD	T	24.576 MHz	±30ppm
T10GC1-16.000MHZ-T	麥迪康晶振	CRYSTAL 16.0000MHZ 10PF SMD	T	16 MHz	±30ppm
T10GC1-16.384MHZ-T	麥迪康晶振	CRYSTAL 16.3840MHZ 10PF SMD	T	16.384 MHz	±30ppm
T10GC1-48.000MHZ-T	麥迪康晶振	CRYSTAL 48.0000MHZ 10PF SMD	T	48 MHz	±30ppm
X10CB1-16.000MHZ-T	麥迪康晶振	CRYSTAL 16.0000MHZ 10PF SMD	X	16 MHz	±30ppm
X10CB1-16.3676MHZ-T	麥迪康晶振	CRYSTAL 16.3676MHZ 10PF SMD	X	16.3676 MHz	±30ppm
X10CB1-26.000MHZ-T	麥迪康晶振	CRYSTAL 26.0000MHZ 10PF SMD	X	26 MHz	±30ppm
X10CB1-24.000MHZ-T	麥迪康晶振	CRYSTAL 24.0000MHZ 10PF SMD	X	24 MHz	±30ppm
X10CB1-16.384MHZ-T	麥迪康晶振	CRYSTAL 16.3840MHZ 10PF SMD	X	16.384 MHz	±30ppm
WC26SMFD-32.768KHZ-T	麥迪康晶振	CRYSTAL 32.7680KHZ 12.5PF SMD	WC26SM	32.768 kHz	-
DF18CC1-8.000MHZ-T	麥迪康晶振	CRYSTAL 8.0000MHZ 18PF SMD	D	8 MHz	±30ppm
WC38F-32.768KHZ	麥迪康晶振	2 PIN THROUGH HOLE METAL PACKAGE	WC	32.768 kHz	-
WC26F-32.768KHZ	麥迪康晶振	2 PIN THROUGH HOLE METAL PACKAGE	WC	32.768 kHz	-
X10CB1-48.000MHZ-T	麥迪康晶振	CRYSTAL 48.0000MHZ 10PF SMD	X	48 MHz	±30ppm
X10CB1-20.000MHZ-T	麥迪康晶振	CRYSTAL 20.0000MHZ 10PF SMD	X	20 MHz	±30ppm
DF18CC1-25.000MHZ-T	麥迪康晶振	CRYSTAL 25.0000MHZ 18PF SMD	D	25 MHz	±30ppm
