CX2520DB19200H0FLJC1,CX2520DB,2520mm,移動通信,19.2MHZ

頻率：19.2MHZ

尺寸：2.5*2.0mm

CX2520DB19200H0FLJC1,CX2520DB,2520mm,移動通信,19.2MHZ，尺寸為2520mm,頻率為19.2MHZ，日本進口晶振，日本京瓷晶振，Kyocera晶振，石英貼片晶振，SMD無源晶體，SMD晶體，貼片石英晶振，無源諧振器，石英晶體諧振器，水晶振動子，高質量晶振，輕薄型晶振，2520mm無源晶體，數字家電晶振，普通民用設備晶振，移動通信晶振，藍牙晶振。

石英晶體產品主要應用范圍：數字家電，普通民用設備，移動通信、藍牙®、無線局域網，以及儀器儀表等領域。CX2520DB19200H0FLJC1,CX2520DB,2520mm,移動通信,19.2MHZ.

訂購熱線：86-0755-27838351

項 目

記號

標準規格

単位

備考

周波數

f_nom

12000 ~ 54000

kHz

オーバートーン次數

Fundamental

―

負荷容量

その他の負荷容量についてはお問い合わせ下さい。

周波數許容偏差

f_tol

± 15

× 10−6

25°C±3°C

直列抵抗

Table 1

ohm

勵振レベル

Table 2

動作溫度範囲

T_use

− 10 ~ +70

−30 ~ +85

°C

保存溫度範囲

T_stg

−40 ~ +85

°C

周波數溫度特性

f_tem

± 15

× 10−6

25°Cの周波數に対しての偏差

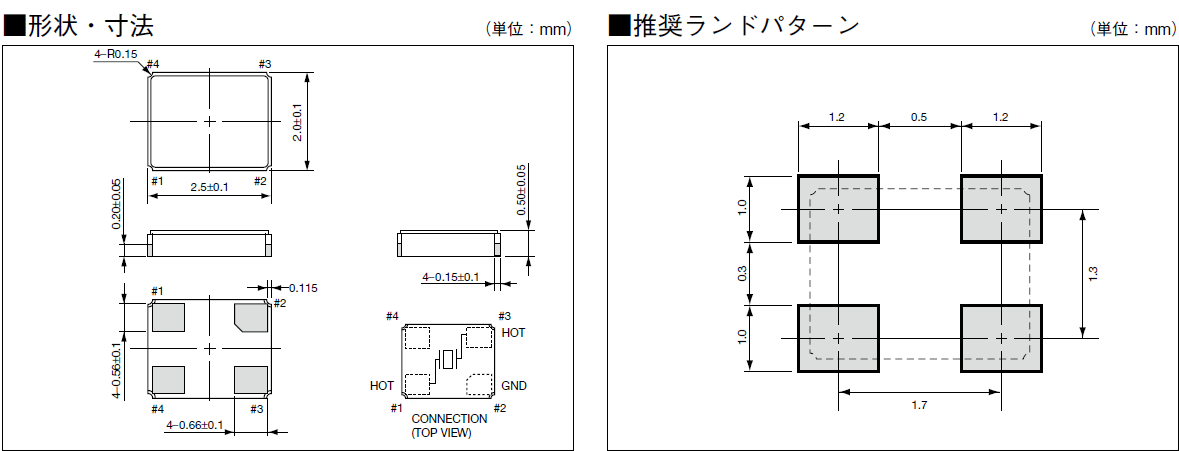

CX2520DB19200H0FLJC1,CX2520DB,2520mm,移動通信,19.2MHZ 尺寸圖

CX2520DB19200H0FLJC1晶振特點

普通民用設備、移動通信用晶振器
●陶瓷封裝
●應對回流
■用途
●數字家電
●普通民用設備
●移動通信、藍牙®、無線局域網
