康華爾電子成立至今已有20多年,是國內數一數二的晶振廠家0755-27838351,專業研發生產銷售石英晶振,32.768K晶振,石英晶體諧振器,貼片晶振,SAW濾波器等.采用無鉛環保材料生產,具有精度穩定,小體積,重量輕等特點.國產晶振就選康華爾電子,質量好,精度高,價格優勢.
康華爾電子多年來在競爭激烈的市場中,以技術占領市場,以質量贏得客戶,是國內口碑極高的晶振供應商.并且憑借自身的努力代理臺灣進口晶振多個品牌,TXC晶振,鴻星晶振,加高晶振,亞陶晶振等.康華爾電子所提供的臺產晶振,均符合德國ROHS環保指令,具有高質量,高可靠使用特性,咨詢選購熱線0755-27838351.
日本進口晶振在國內口碑一流,高端智能產品使用晶振大都會選擇日產晶振作為首選.康華爾電子憑借自身的努力同時代理KDS晶振,愛普生晶振,精工晶體,京瓷晶振等品牌.所代理石英晶振,石英晶體振蕩器,貼片晶體均符合歐盟ROHS環保要求,具有高精度,高品質,低插損,耐高溫等特點.
康華爾電子是國內優秀的歐美進口晶振供貨商0755-27838351,多年來憑借自身的努力,獲得CTS晶振,FOX晶振,Sitime晶振,瑞康晶振等代理權限.所代理進口晶振,歐美晶振均符合歐盟ROHS環保指令,并且獲得ISO國際質量管理體系認證.市場常用進口晶振封裝型號康華爾電子均有備貨,可免費提供現貨樣品以及晶振技術解決方案.
32.768K是晶振頻率中最容易讓人記住的數字,32.768K晶振素來有時鐘晶振的稱謂,只要跟數字顯示以及時間相關的產品都少不了一款32.768K晶振.根據不同的產品需求主要分為圓柱晶振和32.768K貼片晶振.常見封裝有2x6,3x8,7.0x1.5,3.2x1.5,2.0x1.2等體積.康華爾電子提供各種32.768K晶振,音叉表晶,價格優質,咨詢熱線0755-27838351.
有源晶振是一款自身帶有電源電壓功能的石英晶體振蕩器,并且有多種電壓供選擇,比如有1.8V,2.5V,3.3V,3.8V,5V等高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍：1.8V~5 V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
頻率：40MHZ
尺寸：1.2x1.0mm
6G放大器晶振/HSX1210A石英晶體/HELE加高晶振/X12A040000BZ1H-HZ，尺寸1.2x1.0mm，頻率40MHZ，加高無源晶振，石英水晶振動子，石英晶體諧振器，石英SMD晶振，石英晶振，貼片石英晶振,SMD晶體諧振器，無源貼片晶振，無源晶振，綠色環保晶振，1210mm無源晶振，臺灣貼片晶振，6G放大器晶振，小型設備專用晶振，藍牙音響專用晶振，通信設備晶振，智能家居晶振，娛樂設備無源晶振，具有良好的可靠性能以及穩定性能。
石英晶體產品可滿足不同應用程序的需求，尤其適合用于通信，便攜式設備，藍牙音響，智能家居，小型設備，6G放大器，娛樂設備等領域.6G放大器晶振/HSX1210A石英晶體/HELE加高晶振/X12A040000BZ1H-HZ.
6G放大器晶振/HSX1210A石英晶體/HELE加高晶振/X12A040000BZ1H-HZ，尺寸1.2x1.0mm，頻率40MHZ，加高無源晶振，石英水晶振動子，石英晶體諧振器，石英SMD晶振，石英晶振，貼片石英晶振,SMD晶體諧振器，無源貼片晶振，無源晶振，綠色環保晶振，1210mm無源晶振，臺灣貼片晶振，6G放大器晶振，小型設備專用晶振，藍牙音響專用晶振，通信設備晶振，智能家居晶振，娛樂設備無源晶振，具有良好的可靠性能以及穩定性能。
石英晶體產品可滿足不同應用程序的需求，尤其適合用于通信，便攜式設備，藍牙音響，智能家居，小型設備，6G放大器，娛樂設備等領域.6G放大器晶振/HSX1210A石英晶體/HELE加高晶振/X12A040000BZ1H-HZ.

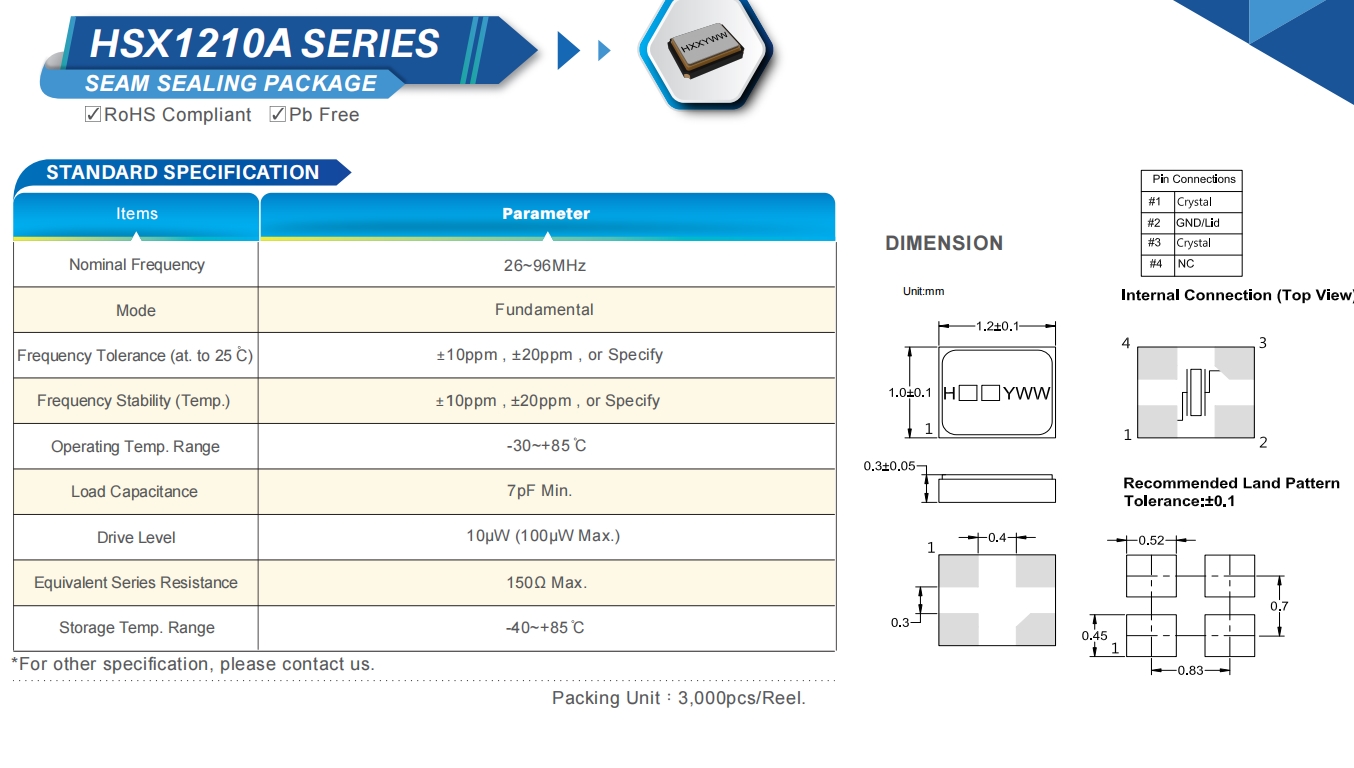

6G放大器晶振/HSX1210A石英晶體/HELE加高晶振/X12A040000BZ1H-HZ 參數表
 Items
|
parameter | |||||
| Nominal Frequency | 40MHz | |||||
| Mode | Fundamental | |||||
| Frequency Tolerance (at. to 25 C) | ± 10ppm , ±20ppm , or Specify | |||||
| Frequency Stability (Temp.) | ±10ppm , ±20ppm , or Specify | |||||
| Operating Temp. Range | -30~+85 C | |||||
| Load Capacitance | 7pF Min. | |||||
| Drive Level | 10μW (100μW Max.) | |||||
| Equivalent Series Resistance | 150Ω Max. | |||||
| Storage Temp. Range |
 -40~+85 C
|
|||||

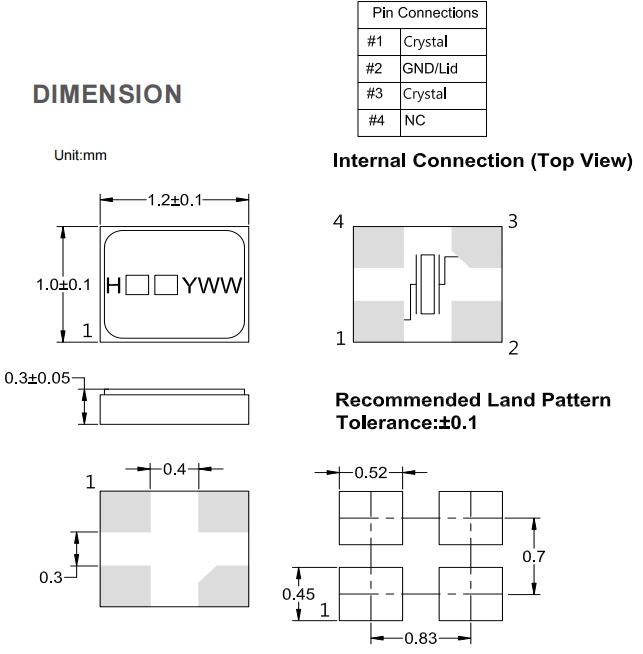

6G放大器晶振/HSX1210A石英晶體/HELE加高晶振/X12A040000BZ1H-HZ 尺寸圖
SMD晶振產品特性：
極好的老化
輕薄小，高可靠性能
優異的耐熱性
頻率范圍26MHz-96MHz
符合RoHS標準且無鉛
更多相關加高HELE晶振型號
| 編碼 | Series | 品牌 | 描述 | 頻率 | 頻率穩定性 |
| X2B026000M81H-HS | HSX221SA | HELE加高晶振 | HSX221SA/26MHZ/8PF/7PPM/15PPM/-4 | 26.000MHZ | ±15ppm |
| X2B016000BA1H-U | HSX221SA | HELE加高晶振 | HSX221SA/16MHZ/10PF/10PPM/10PPM/ | 16.000MHZ | ±10ppm |
| X2B012000BC1H-U | HSX221SA | HELE加高晶振 | HSX221SA/12MHZ/12PF/10PPM/20PPM/ | 12.000MHZ | ±20ppm |
| X2B040000BC1H-DHZ | HSX221SA | HELE加高晶振 | HSX221SA/40MHZ/12PF/10PPM/10PPM/ | 40.000MHZ | ±10ppm |
| X12A040000BZ1H-HZ | HSX1210A | HELE加高晶振 | HSX1210A/40MHZ/6PF/10PPM/12PPM/- | 40.000MHZ | ±10ppm |
| X12A032000B81H-HZ | HSX1210A | HELE加高晶振 | HSX1210A/32MHZ/8PF/10PPM/10PPM/- | 32.000MHZ | ±10ppm |
| X2B012000DC1H-X | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 12MHz ±20ppm SMD-2520_4P RoHS | 12.000MHZ | ±20ppm |
| X2B016000B91H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 16MHz ±10ppm SMD-2520_4P RoHS | 16.000MHZ | ±10ppm |
| X2B027000BC1H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 27MHz ±10ppm SMD-2520_4P RoHS | 27.000MHZ | ±10ppm |
| X2B032000BC1H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520_4P RoHS | 32.000MHZ | - |
| X2C048000L71HA-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 48MHz ±8ppm SMD-2016_4P RoHS | 48.000MHZ | ±8ppm |
| X2B024000BC1HA-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD_2520-4P RoHS | 24.000MHZ | - |
| X2B026000B91H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS | 26.000MHZ | ±10ppm |
| X2B026000B71HZ-HPR | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2520_4P RoHS | 26.000MHZ | ±10ppm |
| X2B026000B71HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 26MHz ±7ppm SMD-2520_4P RoHS | 26.000MHZ | ±7ppm |
| X2B040000BF1H-HZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 40MHz ±10ppm SMD-2520_4P RoHS | 40.000MHZ | ±10ppm |
| X5H008000FC1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators 8MHz ±30ppm SMD-5032_2P RoHS | 8.000MHZ | ±30ppm |
| X5H027000DA1H-W | HSX530G | HELE加高晶振 | SMD Crystal Resonators 27MHz ±20ppm SMD-5032_2P RoHS | 27.000MHZ | ±20ppm |
| X5H01431AFK1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 14.31818MHZ | - |
| X5H025000FK1H-X | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 25.000MHZ | - |
| X5H008000FF1H | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD-5032-2P RoHS | 8.000MHZ | - |
| X2B024000BCIH-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators 24MHz ±10ppm SMD-2520_4P RoHS | 24.000MHZ | ±10ppm |
| X5H012288FI1H | HSX530G | HELE加高晶振 | SMD Crystal Resonators 12.288MHz ±30ppm SMD-5032_2P RoHS | 12.288MHZ | ±30ppm |
| X5H008000IK1H-H | HSX530G | HELE加高晶振 | SMD Crystal Resonators SMD_5032-2P RoHS | 8.000MHZ | - |
| X2C024000BA1H | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 24.000MHZ | ±10ppm |
| X2C024000B71H-V | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | ±10ppm |
| X2B050000BC1H-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 50.000MHZ | 10PPM |
| X2C024000FA1H-X | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 30PPM |
| X2C016000B81H-HPU | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 16.000MHZ | 10PPM |
| X2C024000B91H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 24.000MHZ | 10PPM |
| X2C037400BG1H-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 37.400MHZ | 10PPM |
| X2B040000BF1H-HT | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 40.000MHZ | ±15ppm |
| X2B030000BA1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 30.000MHZ | 10PPM |
| X2B026000B91H-HR | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B038400BA1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 38.400MHZ | 10PPM |
| X2B040000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 40.000MHZ | 10PPM |
| X2B032000C81H-HU | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 32.000MHZ | ±15ppm |
| X2B012000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 12.000MHZ | 10PPM |
| X2C027120FA1H-HV | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 27.120MHZ | ±30ppm |
| X2B030000BA1H-HW | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 30.000MHZ | 10PPM |
| X2B026000B91H-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 26.000MHZ | 10PPM |
| X2C040000B91HA-Z | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 40.000MHZ | 10PPM |
| X2B026000BC1H-Z | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B016000BC1H-HV | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 16.000MHZ | 10PPM |
| X2C016000B91H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 16.000MHZ | 10PPM |
| X2B019200BZ1H-CHZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 19.200MHZ | 10PPM |
| X2C032000BA1HA-U | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2B026000B91H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2B026000L91H-S | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | ±8ppm |
| X2C048000L71H-CEHZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±8ppm |
| X2B030000FA1H-X | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD-2520 RoHS | 30.000MHZ | ±30ppm |
| X2C032000BC1H-R | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | 10PPM |
| X2B024000FK1H-V | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 24.000MHZ | ±30ppm |
| X2B026000B81H-CHZ | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 26.000MHZ | 10PPM |
| X2C038400BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD-2016 RoHS | 38.400MHZ | 10PPM |
| X2B02863ADC1H-W | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 28.63636MHZ | ±20ppm |
| X2B032000D81H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 32.000MHZ | ±20ppm |
| X2B025000BI1H-U | HSX221SA | HELE加高晶振 | SMD Crystal Resonators SMD,2.5x2.0mm RoHS | 25.000MHZ | 10PPM |
| X2C032000B81H-HS | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 32.000MHZ | ±10ppm |
| X1H008000DC1H-U | HSX531S | HELE加高晶振 | SMD Crystal Resonators 8MHz ±20ppm SMD_5032-4P RoHS | 8.000MHZ | ±20ppm |
| X2C026000B71H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators 26MHz ±10ppm SMD-2016_4P RoHS | 26.000MHZ | ±10ppm |
| X2C048000BA1H-HZ | HSX211S-AU | HELE加高晶振 | SMD Crystal Resonators SMD,2.0x1.6mm RoHS | 48.000MHZ | ±10ppm |
| X2CO48000B71H-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO48000R71HA-CEHZ | HSX211S-AU | HELE加高晶振 | 48.000MHZ | ||
| X2CO40000BD1H-HZ | HSX211S-AU | HELE加高晶振 | 40.000MHZ | ||
| X2BO32000BC1H-HZ | HSX221SA | HELE加高晶振 | 32.000MHZ | ||
| X2CO27120FC1H-HX | HSX211S-AU | HELE加高晶振 | 27.120MHZ | ||
| X2BO27000FC1H-HX | HSX221SA | HELE加高晶振 | 27.000MHZ | ||
| XSHO25000FC1H-H | HSX530G | HELE加高晶振 | 25.000MHZ | ||
| X2BO19200FC1H-HX | HSX221SA | HELE加高晶振 | 19.200MHZ | ||
| XSHO12000FG1H-X | HSX530G | HELE加高晶振 | 12.000MHZ | ||
| X5H024576FI1HA-X | HSX530G | 加高石英晶振 | 24.576MHZ | ||
| X1H01431AFK1H-HX | HSX531S | HELE加高晶振 | 14.31818MHZ | 30PPM | |
| X1H024576DK1H-X | HSX531S | HELE加高晶振 | 24.576MHZ | ||
| X1H012000BC1H-X | HSX531S | HELE加高晶振 | 12.000MHZ | ||
| X5H048000FQ1H-X | HSX530G | HELE加高晶振 | 48.000MHZ | ||
| X1H022118DW1H | HSX531S | HELE加高晶振 | 22.1184MHZ |
