當前位置：首頁 » 歐美晶振 » FOX晶振 » FX122,FX122-327,FK122,2012mm,32.768KHz,FOX兩腳貼片晶振

prevnext

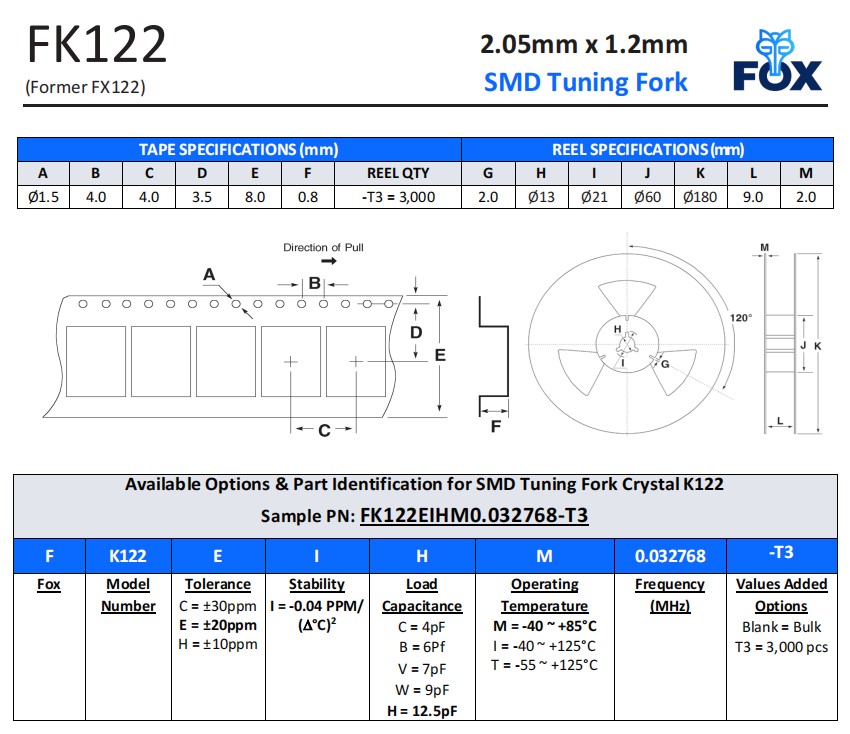

FX122,FX122-327,FK122,2012mm,32.768KHz,FOX兩腳貼片晶振

頻率：32.768KHz

尺寸：2.0x1.2x0.6mm

FX122,FX122-327,FK122,2012mm,32.768KHz,FOX兩腳貼片晶振，進口晶振，F(xiàn)OX晶振，美國?？怂咕д?/span>，型號：FK122（Former FX122），編碼為：FX122-327，頻率：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：2.0x1.2x0.6mm，兩腳貼片晶振，石英晶振，無源晶振，手表晶體，音叉晶振，石英晶體諧振器，無鉛晶振，貼片晶振，具有超小型晶振，輕薄型晶振，高品質晶振，高質量晶振，耐熱及耐環境等特點，特別適用于：實時時鐘參考，鐘表電子晶振，電腦主板晶振，智能手機晶振，無線藍牙晶振，通信晶振，數碼電子晶振，游戲機設備等應用。

訂購熱線：86-0755-27838351

FX122,FX122-327,FK122,2012mm,32.768KHz,FOX兩腳貼片晶振，進口晶振，F(xiàn)OX晶振，美國?？怂咕д?/span>，型號：FK122（Former FX122），編碼為：FX122-327，頻率：32.768KHz，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：2.0x1.2x0.6mm，兩腳貼片晶振，石英晶振，無源晶振，手表晶體，音叉晶振，石英晶體諧振器，2012晶振，無鉛晶振，貼片晶振，具有超小型晶振，輕薄型晶振，高品質晶振，高質量晶振，耐熱及耐環境等特點，特別適用于：實時時鐘參考，鐘表電子晶振，電腦主板晶振，智能手機晶振，無線藍牙晶振，通信晶振，數碼電子晶振，游戲機設備等應用。

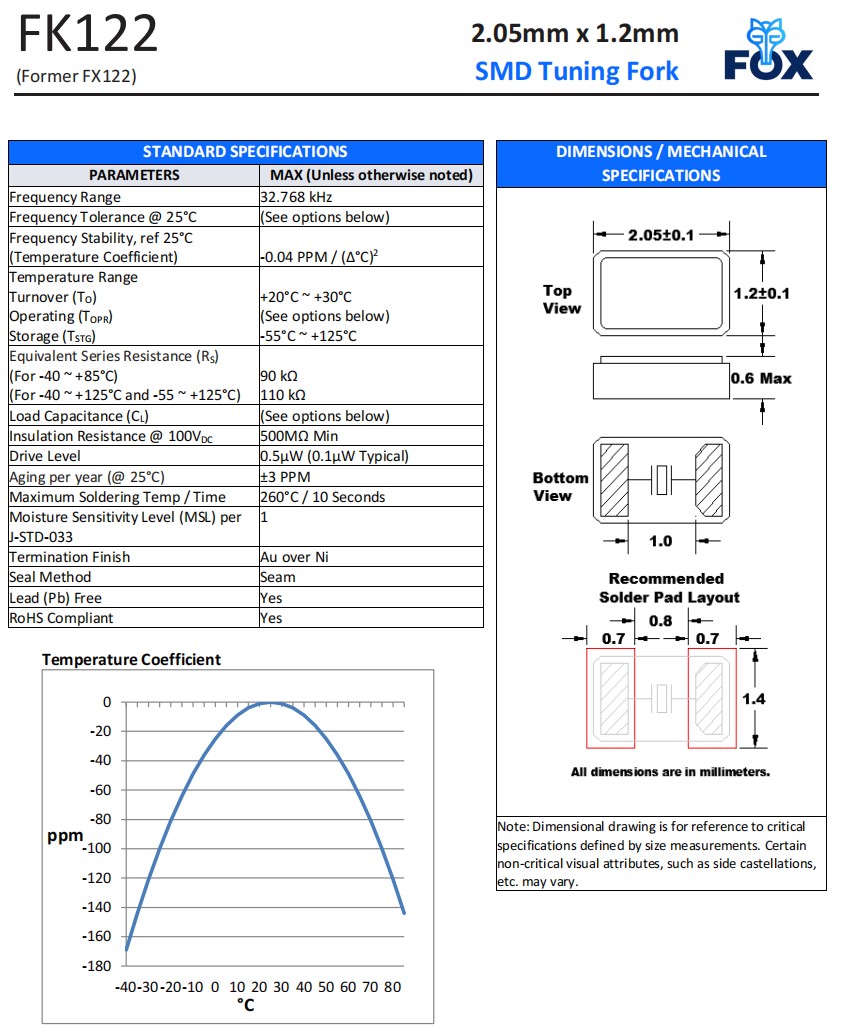

FX122,FX122-327,FK122,2012mm,32.768KHz,FOX兩腳貼片晶振,參數表

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

32.768 kHz

Frequency Tolerance @ 25°C

(See options below)

Frequency Stability, ref 25°C
(Temperature Coefficient)

-0.04 PPM / (△°C)2

Temperature Range
Turnover (TO)
Operating (TOPR)
Storage (TSTG)

+20°C ~ +30°C
(See options below)
-55°C ~ +125°C

Equivalent Series Resistance (RS)
(For -40 ~ +85°C)
(For -40 ~ +125°C and -55 ~ +125°C)

90 kΩ
110 kΩ

Load Capacitance (CL)

(See options below)

Insulation Resistance @ 100VDC

500MΩ Min

Drive Level

0.5μW (0.1µW Typical)

Aging per year (@ 25°C)

±3 PPM

Maximum Soldering Temp / Time

260°C / 10 Seconds

Moisture Sensitivity Level (MSL) per
J-STD-033

Termination Finish

Au over Ni

Seal Method

Seam

Lead (Pb) Free

Yes

RoHS Compliant

Yes

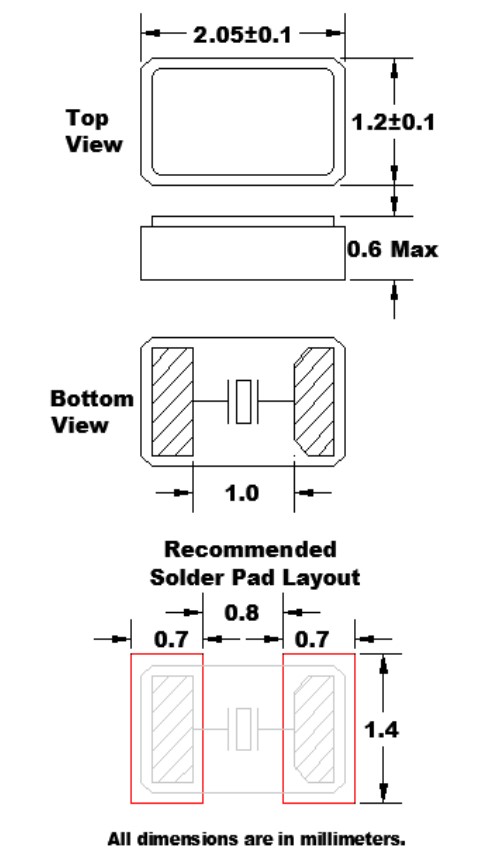

FX122,FX122-327,FK122,2012mm,32.768KHz,FOX兩腳貼片晶振,尺寸圖

原廠編碼	晶振廠家	型號	頻率	包裝/封裝	頻率穩定度
FOXSDLF/120-20	Fox晶振	HC49SDLF	12MHz	HC49/US	±50ppm
FX135A-327	Fox晶振	FX135A	32.768kHz	2-SMD, No Lead	-
FSRLF327	Fox晶振	FSRLF	32.768kHz	4-SOJ, 5.50mm pitch	-
FSXLF327	Fox晶振	FSXLF	32.768kHz	4-SMD, Flat Lead, 3 Leads	-
FQ5032B-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±30ppm
FSMLF327	Fox晶振	FSMLF	32.768kHz	4-SOJ, 2.29mm pitch	-
FOXSDLF/160-20	Fox晶振	HC49SDLF	16MHz	HC49/US	±50ppm
FOXSDLF/200-20	Fox晶振	HC49SDLF	20MHz	HC49/US	±50ppm
FQ3225B-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FOXSLF/200-20	Fox晶振	HC49SLF	20MHz	HC49/US	±50ppm
FOXSLF/120-20	Fox晶振	HC49SLF	12MHz	HC49/US	±50ppm
FX252BS-16.000	Fox晶振	FX252B	16MHz	4-SMD, No Lead	±50ppm
FQ5032B-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±30ppm
FOXLF200-20	Fox晶振	HC49ULF	20MHz	HC49/U	±50ppm
NC38LF-327	Fox晶振	NC38LF	32.768kHz	Cylindrical Can, Radial	-
NC26LF-327	Fox晶振	NC26LF	32.768kHz	Cylindrical Can, Radial	-
FOXSDLF/120R-20/TR	Fox晶振	HC49SDLF	12MHz	HC49/US	±50ppm
FSRLF327-6	Fox晶振	FSRLF	32.768kHz	4-SOJ, 5.50mm pitch	-
FX425B-12.000	Fox晶振	FX425B	12MHz	4-SMD, No Lead	±50ppm
FX122-327	Fox晶振	FX122	32.768kHz	2-SMD, No Lead	-
FOXSLF/160-20	Fox晶振	HC49SLF	16MHz	HC49/US	±50ppm
FOXSLF/160	Fox晶振	HC49SLF	16MHz	HC49/US	±50ppm
FOXSLF/128-20	Fox晶振	HC49SLF	12.288MHz	HC49/US	±50ppm
FOXSLF/245F-20	Fox晶振	HC49SLF	24.576MHz	HC49/US	±50ppm
FOXSLF/120	進口晶振	HC49SLF	12MHz	HC49/US	±50ppm
FOXLF120-20	Fox晶振	HC49ULF	12MHz	HC49/U	±50ppm
FOXLF160	Fox晶振	HC49ULF	16MHz	HC49/U	±50ppm
FOXLF160-20	Fox晶振	HC49ULF	16MHz	HC49/U	±50ppm
FOXSDLF/245F-20	Fox晶振	HC49SDLF	24.576MHz	HC49/US	±50ppm
FOXSDLF/160R-20/TR	Fox晶振	HC49SDLF	16MHz	HC49/US	±50ppm
FOXSDLF/200R-20/TR	Fox晶振	HC49SDLF	20MHz	HC49/US	±50ppm
FOXSDLF/245FR-20/TR	Fox晶振	HC49SDLF	24.576MHz	HC49/US	±50ppm
FQ5032B-24.576	Fox晶振	C5BQ	24.576MHz	4-SMD, No Lead	±30ppm
FQ5032B-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±30ppm
FQ5032BR-12.000	Fox晶振	C5BQ	12MHz	4-SMD, No Lead	±50ppm
FQ5032BR-20.000	Fox晶振	C5BQ	20MHz	4-SMD, No Lead	±50ppm
FQ3225B-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225BR-12.000	Fox晶振	FQ3225B	12MHz	4-SMD, No Lead	±50ppm
FOXLF120	Fox晶振	HC49ULF	12MHz	HC49/U	±50ppm
FOXSDLF/128-20	Fox晶振	HC49SDLF	12.288MHz	HC49/US	±50ppm
FOXSLF/200	Fox晶振	HC49SLF	20MHz	HC49/US	±50ppm
FX252BS-20.000	Fox晶振	FX252B	20MHz	4-SMD, No Lead	±50ppm
FQ5032BR-16.000	Fox晶振	C5BQ	16MHz	4-SMD, No Lead	±50ppm
FX425B-16.000	Fox晶振	FX425B	16MHz	4-SMD, No Lead	±50ppm
FQ3225B-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
FQ3225BR-16.000	Fox晶振	FQ3225B	16MHz	4-SMD, No Lead	±50ppm
FQ3225BR-20.000	Fox晶振	FQ3225B	20MHz	4-SMD, No Lead	±50ppm
603-12-67	Fox晶振	FX325BS	12MHz	4-SMD, No Lead	±50ppm
FX532B-12.000	Fox晶振	FX532B	12MHz	4-SMD, No Lead	±50ppm
FX532B-16.000	Fox晶振	FX532B	16MHz	4-SMD, No Lead	±50ppm
FX532B-20.000	Fox晶振	FX532B	20MHz	4-SMD, No Lead	±50ppm
FX532B-24.576	Fox晶振	FX532B	24.576MHz	4-SMD, No Lead	±50ppm
FX425B-20.000	Fox晶振	FX425B	20MHz	4-SMD, No Lead	±50ppm
FX425B-24.576	Fox晶振	FX425B	24.576MHz	4-SMD, No Lead	±50ppm
FPXLF120-20	Fox晶振	FPXLF	12MHz	4-SMD, No Lead	±50ppm
FPXLF160	Fox晶振	FPXLF	16MHz	4-SMD, No Lead	±50ppm
FPXLF160-20	Fox晶振	FPXLF	16MHz	4-SMD, No Lead	±50ppm
FPXLF200-20	Fox晶振	FPXLF	20MHz	4-SMD, No Lead	±50ppm
