愛普生差分晶振,X1G0059410603,6G光模塊晶振,SG2520VHN石英振蕩器

頻率：400MHZ

尺寸：2.5*2.0mm

愛普生差分晶振,X1G0059410603,6G光模塊晶振,SG2520VHN石英振蕩器，尺寸為2.5*2.0mm,頻率400MHZ，差分晶振LVDS，OSC差分振蕩器，低抖動差分晶振，低電壓差分晶振，輕薄型差分晶振，進口有源晶振，EPSON晶振，有源晶體振蕩器，5G/6G將使網絡通信流量呈指數級增長。5G/6G通信網絡要求高速寬頻帶，同時把噪音降到最低。這可以通過高頻率，用于通信設備的低抖動參考時鐘。光通信模塊為400gbps/800gbps傳輸超過80公里需要一個小的外形因素，±20×10-6的穩定性參考時鐘。SG2016VHN/SG2520VHN是非常受歡迎的SG3225VEN系列的下一代產品具有廣泛的可用頻率范圍，低抖動和改進的頻率容限的功能組合由于采用了內部設計的具有溫度補償?shù)募呻娐罚浞庋b尺寸縮小了63%。

OSC晶振產品主要應用范圍廣泛,其中包含6G光模塊，通信設備，無線網絡，儀器設備，網絡設備(路由器、交換機、光模塊等)，數據中心，測試和測量設備，工廠自動化，高速轉換器，如ADC和DAC等領域。愛普生差分晶振,X1G0059410603,6G光模塊晶振,SG2520VHN石英振蕩器.

訂購熱線：86-0755-27838351

愛普生差分晶振,X1G0059410603,6G光模塊晶振,SG2520VHN石英振蕩器 參數表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC + 0.5

一一
OE/ST terminal

Storage temperature range

T_stg

-55

+125

°C

[ 3 ] Operating Range

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

1.71

1.8

1.89

Suffix: E, Output option: A or C

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

LVDS load condition

L_LVDS

100

* Power supply startup time (0 %VCC→90 %VCC) should be more than 150 μs
* A 0.1 μF and a 10 μF bypass capacitor should be connected between VCC and GND pins located close to the device

[ 4 ] Frequency Characteristics (Unless stated otherwise [ 3 ] Operating Range)

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

400

MHz

Frequency tolerance *2

f_tol

-20

+20

×10-6

Suffix: C

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	25	mA	Output option: A, fo < 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	28	mA	Output option: A, fo ≥ 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	30	mA	Output option: B, fo < 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	35	mA	Output option: B, fo ≥ 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	25	mA	Output option: C, fo < 212 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	28	mA	Output option: C, 212 MHz ≤ fo < 392 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	30	mA	Output option: C, fo ≥ 392 MHz VCC = 2.5 V, 3.3 V Typ.
		-	-	25	mA	Output option: A or C VCC = 1.8 V Typ.
Disable current	I_dis	-	-	20	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of VSW
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOD	250	-	450	mV	Output option: A
		400	-	800	mV	Output option: B Not available for VCC = 1.8 V Typ.
		300	-	600	mV	Output option: C
	dVOD	-	-	50	mV	\|VOD1 - VOD2 \|
	VOS	1.15	-	1.35	V	VCC = 2.5 V, 3.3 V Typ.
		0.65	-	0.85	V	VCC = 1.8 V Typ.
	dVOS	-	-	50	mV	\|VOS1 - VOS2 \|
Differential swing	VSW	500	-	900	mV	Output option: A
		800	-	1 600	mV	Output option: B Not available for VCC = 1.8 V Typ.
		600	-	1 200	mV	Output option: C
Input voltage	VIH	70 % VCC	-	-	V	OE/ terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter VCC = 2.5 V, 3.3 V Typ. Offset frequency fo < 50 MHz; 12 kHz to 5 MHz fo ≥ 50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	100	fs	100 MHz ≤ fo ≤ 156 MHz
		-	-	60	fs	156 MHz < fo ≤ 212 MHz
		-	-	50	fs	fo > 212 MHz
Phase jitter VCC = 1.8 V Typ. Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo ≥ 50 MHz: 12 kHz to 20 MHz		-	-	400	fs	fo < 100 MHz
		-	-	130	fs	100 MHz ≤ fo ≤ 156 MHz
		-	-	70	fs	156 MHz < fo ≤ 212 MHz
		-	-	60	fs	fo > 212 MHz

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Junction temperature

140

°C

Junction to case

θjc

114

°C/W

SG2016VHN

122

°C/W

SG2520VHN

Junction to ambient

θja

243

°C/W

SG2016VHN

155

°C/W

SG2520VHN

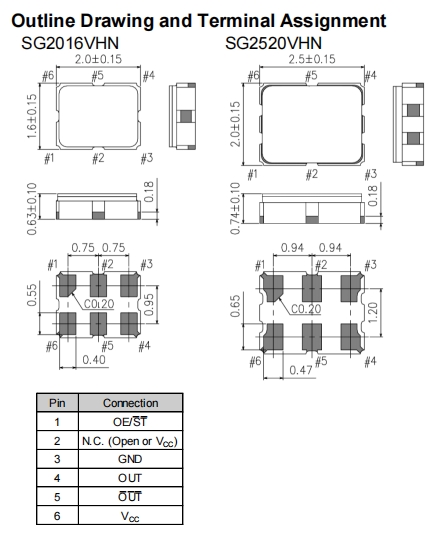

愛普生差分晶振,X1G0059410603,6G光模塊晶振,SG2520VHN石英振蕩器 尺寸圖

產品特性：

SPXO晶體振蕩器

頻率范圍: 25 MHz至500MHZ

輸出:LVDS

電源電壓:1.8V型。/ 2.5V/3.3V類型

工作溫度:-40℃~+105℃

頻率公差:±20×10-6

低相位抖動:38fs(fo = 156.25MHz)

更多相關EPSON愛普生晶振型號

編碼	Model/型號	Frequency/頻率	LxWxH/尺寸	Output Wave/輸出方式	Supply Voltage/電源電壓	Ope Temperature/工作溫度
X1M0003410025	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410026	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410027	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410028	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410029	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410030	XG-2102CA	192.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410031	XG-2102CA	140.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410032	XG-2102CA	166.666666 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410033	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410034	XG-2102CA	122.880000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410035	XG-2102CA	388.080000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410036	XG-2102CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410037	XG-2102CA	161.133000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410038	XG-2102CA	700.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410039	XG-2102CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410040	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410041	XG-2102CA	166.666700 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410042	XG-2102CA	700.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410043	XG-2102CA	644.532150 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410044	XG-2102CA	439.453125 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410045	XG-2102CA	161.133000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410047	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410048	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410049	XG-2102CA	144.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410050	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410052	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003510001	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510002	XG-2121CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510003	XG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510004	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510005	XG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510006	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510007	XG-2121CA	402.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510008	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510009	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510010	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510011	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510012	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510013	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510014	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510015	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510016	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510017	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510018	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510019	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510020	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510021	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510022	XG-2121CA	300.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510029	XG-2121CA	402.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510030	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510032	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510033	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510034	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510035	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510036	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510037	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510038	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510039	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510040	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003610001	XG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003610002	XG-2103CA	133.333333 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0004210002	MG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0004210003	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0004210004	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0004210005	MG7050VAN	644.531250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0004210006	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0004210007	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210008	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210009	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210010	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210011	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210012	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210013	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210014	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210015	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0004210016	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0004310004	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310006	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310007	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004310008	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310009	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310010	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310011	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004610001	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.375 to 2.625 V	0 to 70 °C
X1M0004610002	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004610003	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004610006	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1G0059010001	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059010002	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059010003	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010004	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G0059010006	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010007	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059010008	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059410001	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410002	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410003	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059410004	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410005	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS差分晶體振蕩器	3.135 to 3.465 V	-40 to 105 °C
X1G0059410006	SG2520VHN	155.520000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410007	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410008	SG2520VHN	174.703000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410009	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059410010	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410011	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410603	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410604	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410605	SG2520VHN	467.529297 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C

愛普生差分晶振 X1G0059410603 6G光模塊晶振 SG2520VHN石英振蕩器

采購：愛普生差分晶振,X1G0059410603,6G光模塊晶振,SG2520VHN石英振蕩器

*聯系人：
*手機：
公司名稱：
郵箱：
電話：
地址：
*采購意向：
*驗證碼：

跟此產品相關的產品 / Related Products

SX5C-33F20EH-100MHZ,5032mm,CMOS,FCD-Tech微波雷達晶振,SX5C系列

SX5C-33F20EH-100MHZ,5032mm,CMOS,FCD-Tech微波雷達晶振,SX5C系列,荷蘭進口晶振,進口有源晶振,SX5C系列有源晶體振蕩器,100MHZ石英振蕩器,CMOS輸出晶振,5032小尺寸晶振,尺寸5.0x3.2mm,頻率100MHZ,電壓3.3V,輸出CMOS,低電壓晶振,低抖動晶振,低功耗晶振,低相位晶振,無線通信晶振,便攜式電子晶振,微波雷達晶振.

NKG有源晶振,SCH3高速網絡晶振,SCH36B100.000MTS-EXT,7050mm

NKG有源晶振,SCH3高速網絡晶振,SCH36B100.000MTS-EXT,7050mm,NKG振蕩器,石英晶體振蕩器,六腳有源振蕩器,OSC晶振,有源貼片晶振,有源晶體振蕩器,100MHZ有源晶振,7050mm微型晶振,尺寸7.0×5.0mm,頻率100MHZ,電壓3.3V,輸出LVCMOS,低抖動晶振,低相位晶振,低相噪晶振,低老化晶振,無線局域網晶振,高速網絡晶振.

: SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm; SX3HK,SX3HK25K50E-52MHz,HCSL,荷蘭FCD-Tech差分晶振,3225mm,有源晶體振蕩器,荷蘭進口晶振,六腳差分晶振,3225mm晶振,SX3HK振蕩器,HCSL輸出晶振,差分貼片晶振,石英差分晶振,尺寸3.2x2.5mm,頻率52MHZ,輸出HCSL,耐高溫晶振,低相位晶振,低相噪晶振,低電流晶振,多媒體設備晶振,儀器設備晶振,測試設備晶振,數字視頻晶振.
