C3291-24.000,Crystek四腳貼片晶振,24MHz,低相位噪聲晶振

頻率：24.000MHz

尺寸：7.0x5.0mm

C3291-24.000,Crystek四腳貼片晶振,24MHz,低相位噪聲晶振，美國Crystek晶振，瑞斯克晶振，型號：C32xx系列晶振，編碼：C3291-24.000，頻率：24.000MHz，頻率穩定性：±25ppm，工作溫度范圍：0℃至+70℃，工作電壓為：5.0V，小體積晶振尺寸：7.0x5.0mm，四腳貼片晶振，有源晶振，石英晶振，石英晶體振蕩器，時鐘振蕩器，HCMOS輸出晶振。具有超小型，輕薄型，高性能，高品質等特點。應用于：通訊設備晶振，數字視頻，存儲區域網絡，寬帶接入晶振，以太網、千兆以太網等應用。

訂購熱線：86-0755-27838351

進口晶振型號C32xx是一個1.544MHz到100.000MHz的HCMOS時鐘振蕩器，工作電壓5.0V。該振蕩器利用基本或高Q第三泛音晶體設計，提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。

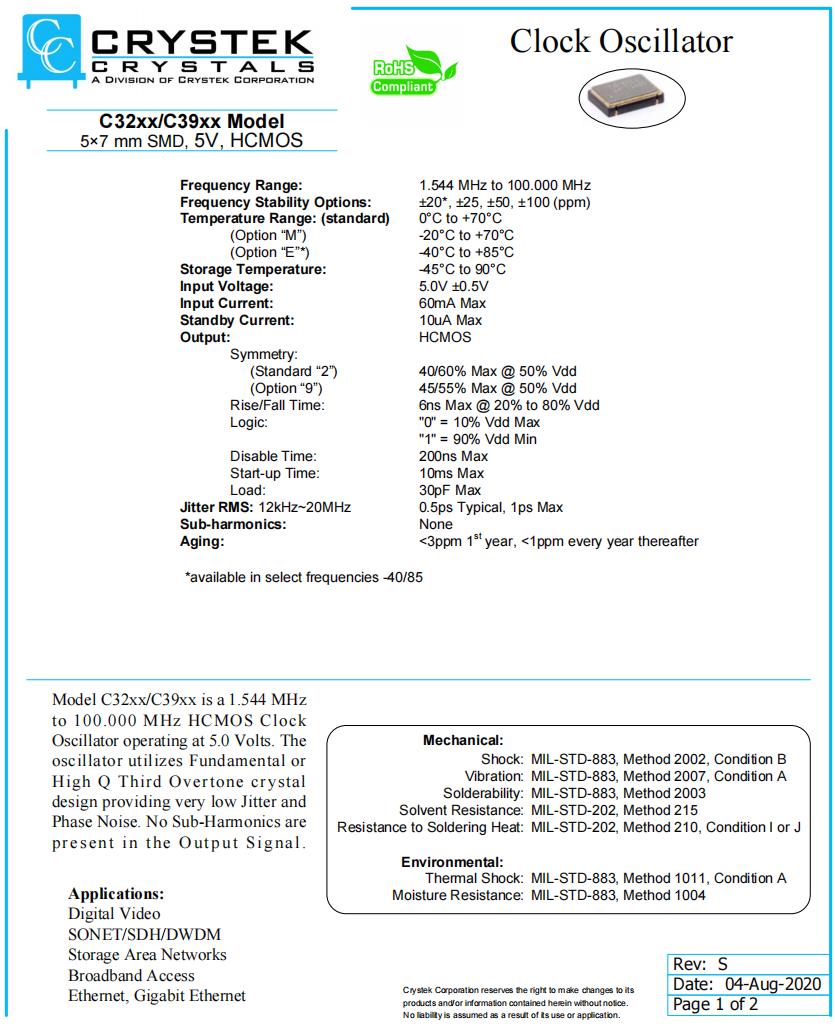

C3291-24.000,Crystek四腳貼片晶振,24MHz,低相位噪聲晶振,參數表

Frequency Range:	24.000MHz
Frequency Stability Options:	±20*, ±25, ±50, ±100 (ppm)
Temperature Range: (standard)	0°C to +70°C
(Option “M”)	-20°C to +70°C
(Option “E”*)	-40°C to +85°C
Storage Temperature:	-45°C to 90°C
Input Voltage:	5.0V ±0.5V
Input Current:	60mA Max
Standby Current:	10uA Max
Output:	HCMOS
Symmetry:
(Standard “2”)	40/60% Max @ 50% Vdd
(Option “9”)	45/55% Max @ 50% Vdd
Rise/Fall Time:	6ns Max @ 20% to 80% Vdd
Logic:	"0" = 10% Vdd Max
	"1" = 90% Vdd Min
Disable Time:	200ns Max
Start-up Time:	10ms Max
Load:	30pF Max
Jitter RMS: 12kHz~20MHz	0.5ps Typical, 1ps Max
Sub-harmonics:	None
Aging:	<3ppm 1st year, <1ppm every year thereafter

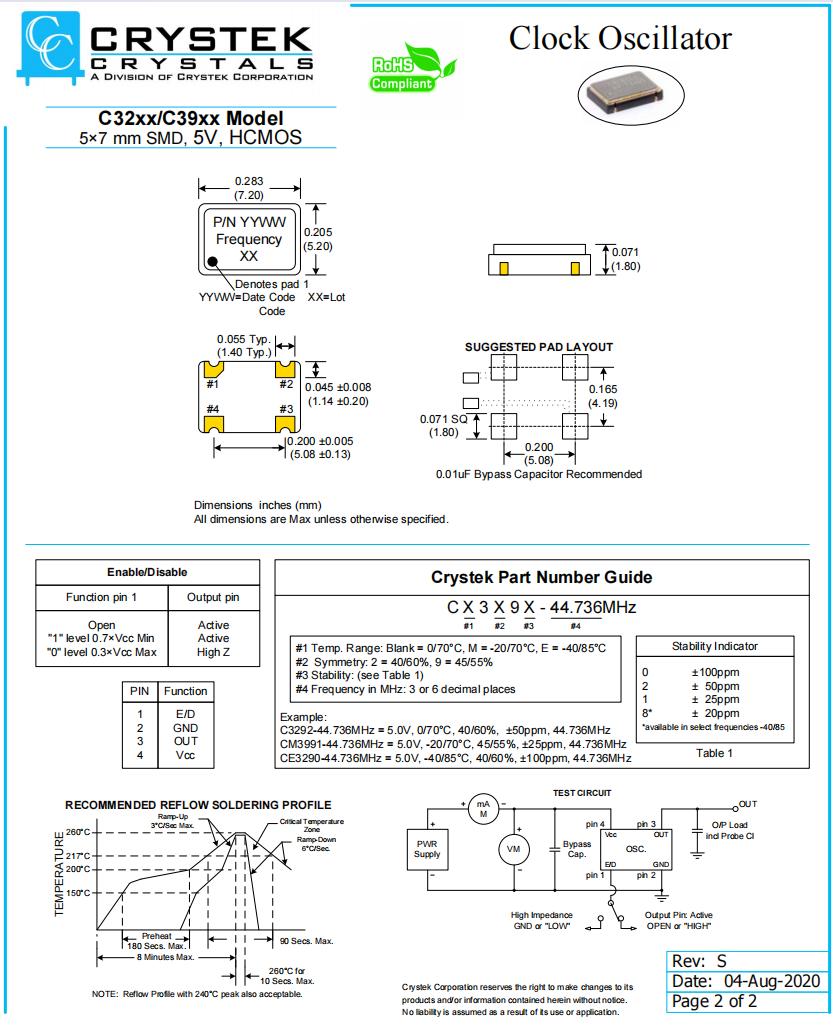

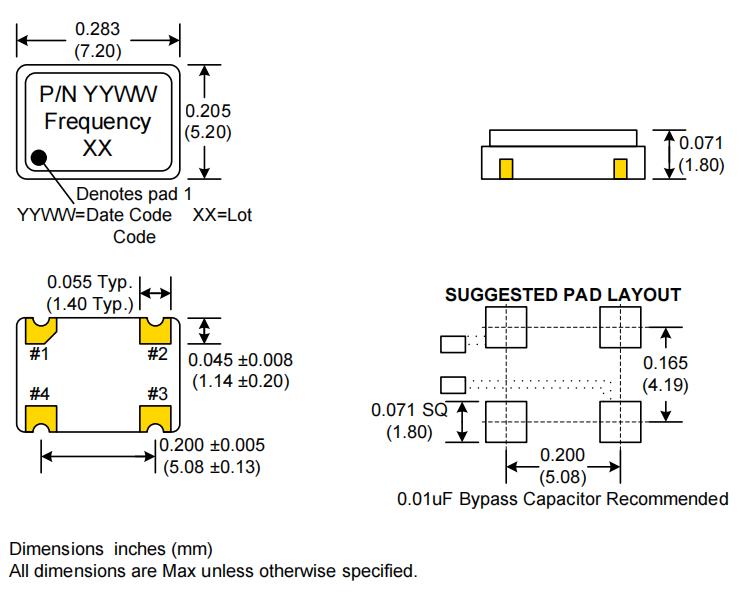

C3291-24.000,Crystek四腳貼片晶振,24MHz,低相位噪聲晶振,尺寸圖

進口貼片晶振	品牌	型號	類型	頻率	頻率穩定度
C3291-1.544	Crystek晶振	C3291	XO (Standard)	1.544MHz	±25ppm
C3291-1.843200	Crystek晶振	C3291	XO (Standard)	1.8432MHz	±25ppm
C3291-10.000	Crystek晶振	C3291	XO (Standard)	10MHz	±25ppm
C3291-12.000	Crystek晶振	C3291	XO (Standard)	12MHz	±25ppm
C3291-12.288	Crystek晶振	C3291	XO (Standard)	12.288MHz	±25ppm
C3291-12.352	Crystek晶振	C3291	XO (Standard)	12.352MHz	±25ppm
C3291-14.318180	Crystek晶振	C3291	XO (Standard)	14.31818MHz	±25ppm
C3291-15.360	Crystek晶振	C3291	XO (Standard)	15.36MHz	±25ppm
C3291-16.000	Crystek晶振	C3291	XO (Standard)	16MHz	±25ppm
C3291-16.384	Crystek晶振	C3291	XO (Standard)	16.384MHz	±25ppm
C3291-18.432	Crystek晶振	C3291	XO (Standard)	18.432MHz	±25ppm
C3291-19.440	Crystek晶振	C3291	XO (Standard)	19.44MHz	±25ppm
C3291-2.048	Crystek晶振	C3291	XO (Standard)	2.048MHz	±25ppm
C3291-20.000	Crystek晶振	C3291	XO (Standard)	20MHz	±25ppm
C3291-20.480	Crystek晶振	C3291	XO (Standard)	20.48MHz	±25ppm
C3291-24.000	Crystek晶振	C3291	XO (Standard)	24MHz	±25ppm
C3291-24.704	Crystek晶振	C3291	XO (Standard)	24.704MHz	±25ppm
C3291-25.000	Crystek晶振	C3291	XO (Standard)	25MHz	±25ppm
C3291-3.686400	Crystek晶振	C3291	XO (Standard)	3.6864MHz	±25ppm
C3291-30.000	Crystek晶振	C3291	XO (Standard)	30MHz	±25ppm
C3291-32.000	Crystek晶振	C3291	XO (Standard)	32MHz	±25ppm
C3291-32.768	Crystek晶振	C3291	XO (Standard)	32.768MHz	±25ppm
C3291-33.000	Crystek晶振	C3291	XO (Standard)	33MHz	±25ppm
C3291-33.333	Crystek晶振	C3291	XO (Standard)	33.333MHz	±25ppm
C3291-35.000	Crystek晶振	C3291	XO (Standard)	35MHz	±25ppm
C3291-4.000	Crystek晶振	C3291	XO (Standard)	4MHz	±25ppm
C3291-40.000	7050晶振	C3291	XO (Standard)	40MHz	±25ppm
C3291-44.736	Crystek晶振	C3291	XO (Standard)	44.736MHz	±25ppm
C3291-45.000	Crystek晶振	C3291	XO (Standard)	45MHz	±25ppm
C3291-49.152	Crystek晶振	C3291	XO (Standard)	49.152MHz	±25ppm
C3291-50.000	Crystek晶振	C3291	XO (Standard)	50MHz	±25ppm
C3291-51.840	Crystek晶振	C3291	XO (Standard)	51.84MHz	±25ppm
C3291-6.176	Crystek晶振	C3291	XO (Standard)	6.176MHz	±25ppm
C3291-7.372800	Crystek晶振	C3291	XO (Standard)	7.3728MHz	±25ppm
C3291-8.000	Crystek晶振	C3291	XO (Standard)	8MHz	±25ppm
CE3291-1.544	Crystek晶振	C3291	XO (Standard)	1.544MHz	±25ppm
CE3291-1.843200	Crystek晶振	C3291	XO (Standard)	1.8432MHz	±25ppm
CE3291-10.000	Crystek晶振	C3291	XO (Standard)	10MHz	±25ppm
CE3291-12.000	Crystek晶振	C3291	XO (Standard)	12MHz	±25ppm
CE3291-12.288	Crystek晶振	C3291	XO (Standard)	12.288MHz	±25ppm
CE3291-12.352	Crystek晶振	C3291	XO (Standard)	12.352MHz	±25ppm
CE3291-14.318180	Crystek晶振	C3291	XO (Standard)	14.31818MHz	±25ppm
CE3291-15.360	Crystek晶振	C3291	XO (Standard)	15.36MHz	±25ppm
CE3291-16.000	Crystek晶振	C3291	XO (Standard)	16MHz	±25ppm
CE3291-16.384	Crystek晶振	C3291	XO (Standard)	16.384MHz	±25ppm
CE3291-18.432	Crystek晶振	C3291	XO (Standard)	18.432MHz	±25ppm
CE3291-19.440	Crystek晶振	C3291	XO (Standard)	19.44MHz	±25ppm
CE3291-2.048	Crystek晶振	C3291	XO (Standard)	2.048MHz	±25ppm
CE3291-20.000	Crystek晶振	C3291	XO (Standard)	20MHz	±25ppm
CE3291-20.480	Crystek晶振	C3291	XO (Standard)	20.48MHz	±25ppm
CE3291-24.000	Crystek晶振	C3291	XO (Standard)	24MHz	±25ppm
CE3291-24.704	Crystek晶振	C3291	XO (Standard)	24.704MHz	±25ppm
CE3291-25.000	Crystek晶振	C3291	XO (Standard)	25MHz	±25ppm
CE3291-3.686400	Crystek晶振	C3291	XO (Standard)	3.6864MHz	±25ppm
CE3291-30.000	Crystek晶振	C3291	XO (Standard)	30MHz	±25ppm
CE3291-32.000	Crystek晶振	C3291	XO (Standard)	32MHz	±25ppm
CE3291-32.768	Crystek晶振	C3291	XO (Standard)	32.768MHz	±25ppm
CE3291-33.000	Crystek晶振	C3291	XO (Standard)	33MHz	±25ppm
CE3291-33.333	Crystek晶振	C3291	XO (Standard)	33.333MHz	±25ppm
CE3291-35.000	Crystek晶振	C3291	XO (Standard)	35MHz	±25ppm
CE3291-4.000	Crystek晶振	C3291	XO (Standard)	4MHz	±25ppm
CE3291-40.000	Crystek晶振	C3291	XO (Standard)	40MHz	±25ppm
CE3291-6.176	Crystek晶振	C3291	XO (Standard)	6.176MHz	±25ppm
CE3291-7.372800	Crystek晶振	C3291	XO (Standard)	7.3728MHz	±25ppm
CE3291-8.000	Crystek晶振	C3291	XO (Standard)	8MHz	±25ppm
C3291-60.000	Crystek晶振	C3291	XO (Standard)	60MHz	±25ppm
C3291-64.000	Crystek晶振	C3291	XO (Standard)	64MHz	±25ppm
C3291-66.666600	Crystek晶振	C3291	XO (Standard)	66.6666MHz	±25ppm
CE3291-44.736	Crystek晶振	C3291	XO (Standard)	44.736MHz	±25ppm
CE3291-45.000	Crystek晶振	C3291	XO (Standard)	45MHz	±25ppm
CE3291-49.152	Crystek晶振	C3291	XO (Standard)	49.152MHz	±25ppm
C3291-75.000	Crystek晶振	C3291	XO (Standard)	75MHz	±25ppm
CE3291-50.000	Crystek晶振	C3291	XO (Standard)	50MHz	±25ppm
CE3291-51.840	Crystek晶振	C3291	XO (Standard)	51.84MHz	±25ppm
CE3291-60.000	Crystek晶振	C3291	XO (Standard)	60MHz	±25ppm
CE3291-64.000	Crystek晶振	C3291	XO (Standard)	64MHz	±25ppm
CE3291-66.666600	Crystek晶振	C3291	XO (Standard)	66.6666MHz	±25ppm
CE3291-75.000	Crystek晶振	C3291	XO (Standard)	75MHz	±25ppm
C3291-80.000	Crystek晶振	C3291	XO (Standard)	80MHz	±25ppm
CE3291-80.000	Crystek晶振	C3291	XO (Standard)	80MHz	±25ppm
C3291-100.000	Crystek晶振	C3291	XO (Standard)	100MHz	±25ppm
C3291-106.250	Crystek晶振	C3291	XO (Standard)	106.25MHz	±25ppm
CE3291-100.000	Crystek晶振	C3291	XO (Standard)	100MHz	±25ppm
CE3291-106.250	Crystek晶振	C3291	XO (Standard)	106.25MHz	±25ppm
