ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振

頻率：24.000MHz

尺寸：1.6x1.2mm

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振，英國進口晶振，AEL晶振，艾爾晶振，型號：ELM12W晶振，編碼為：ELM12W-24.000MHz-6-R120-D7X-T，頻率為：24.000MHz，負載電容：6pF，頻率穩定性：±20ppm，頻率容差：±15ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：1.6x1.2mm封裝，四腳貼片晶振，1612晶振，石英晶振，石英晶體諧振器，SMD石英晶體，無源晶振，無鉛環保晶振。具有超小型，輕薄型，高品質，耐熱及耐環境等特點。被廣泛應用于：無線藍牙晶振，可穿戴設備晶振，小型便捷式設備，手機晶振，游戲機設備，遙控器晶振，安防設備等應用。

訂購熱線：86-0755-27838351

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振，產品特點：

•SMD石英晶體諧振器
•公差：±10ppm可用
•工作溫度0°C至+50°C至-40°C至+85°C

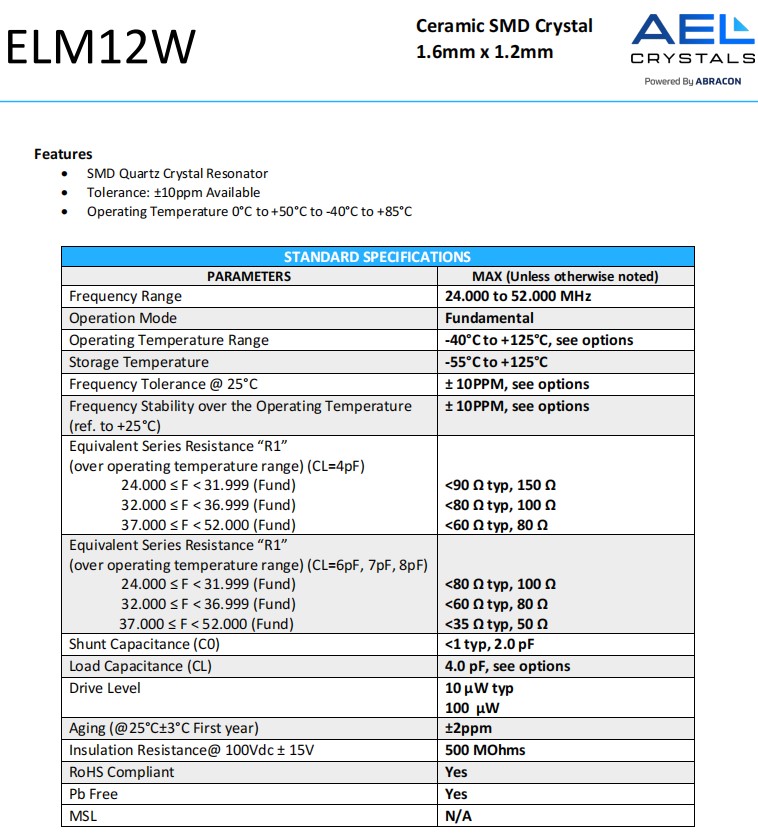

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振,參數表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

24.000MHz

Operation Mode

Fundamental

Operating Temperature Range

-40°C to +125°C, see options

Storage Temperature

-55°C to +125°C

Frequency Tolerance @ 25°C

± 10PPM, see options

Frequency Stability over the Operating Temperature
(ref. to +25°C)

± 10PPM, see options

Equivalent Series Resistance “R1”
(over operating temperature range) (CL=4pF)
24.000 ≤ F < 31.999 (Fund)
32.000 ≤ F < 36.999 (Fund)
37.000 ≤ F < 52.000 (Fund)

<90Ω typ, 150Ω
<80Ω typ, 100Ω
<60Ω typ, 80Ω

Equivalent Series Resistance “R1”
(over operating temperature range) (CL=6pF, 7pF, 8pF)
24.000 ≤ F < 31.999 (Fund)
32.000 ≤ F < 36.999 (Fund)
37.000 ≤ F < 52.000 (Fund)

<80Ω typ, 100Ω
<60Ω typ, 80Ω
<35Ω typ, 50Ω

Shunt Capacitance (C0)

<1 typ, 2.0 pF

Load Capacitance (CL)

4.0 pF, see options

Drive Level

10 μW typ
100 μW

Aging (@25°C±3°C First year)

±2ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

RoHS Compliant

Yes

Pb Free

Yes

MSL

N/A

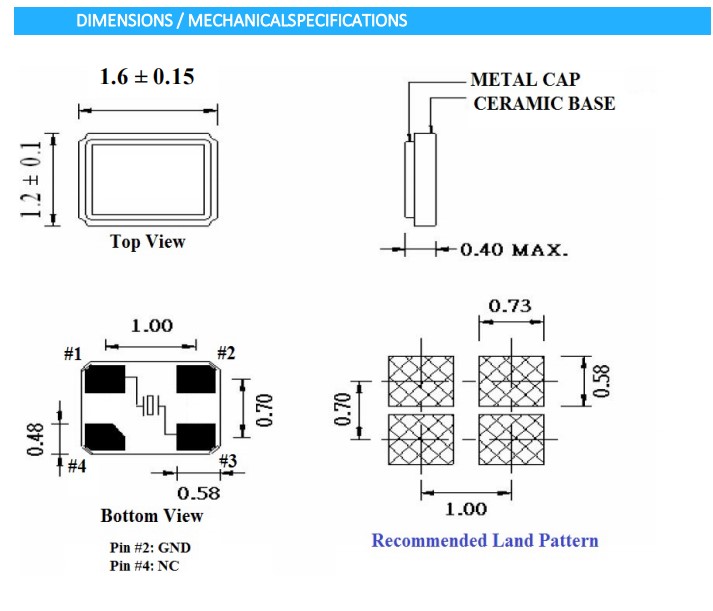

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振,尺寸圖

產品編碼	晶振廠家	型號	頻率	負載電容	長度	寬度	高度
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL晶振	ELLS	10 MHz	20 pF	12.3mm	4.6mm	4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T	AEL晶振	ELLS	12 MHz	18 pF	12.3mm	4.6mm	4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL晶振	ELLS	13.56 MHz	10 pF	12.3mm	4.6mm	4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T	AEL晶振	ELLS	30 MHz	10 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-A4-F-T	AEL晶振	ELLS	4 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T	AEL晶振	ELLS	4 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELLS-4.000MHz-30-R120-D4-F-T	AEL晶振	ELLS	4 MHz	30 pF	12.3mm	4.6mm	4.3mm
ELLS-8.000MHz-16-R45-D4-F-T	AEL晶振	ELLS	8 MHz	16 pF	12.3mm	4.6mm	4.3mm
ELM10-16.000MHz-8-R60-2-D20-T	AEL晶振	ELM10	16 MHz	8 pF	2.5mm	2mm	0.5mm
ELM10-24.000MHz-16-R100-X-N15-T	AEL晶振	ELM10	24 MHz	16 pF	2.5mm	2mm	0.5mm
ELM11-32.000MHz-10-R60-D1X-T	AEL晶振	ELM11	32 MHz	10 pF	2mm	1.6mm	0.5mm
ELM12W-24.000MHz-6-R120-D7X-T	AEL晶振	ELM12W	24 MHz	6 pF	1.6mm	1.2mm	0.4mm
ELM3-12.000MHz-30-R80-D4Y-T	AEL晶振	ELM3	12 MHz	30 pF	5mm	3.2mm	1mm
ELM3-14.000MHz-30-R80-D4H-T	AEL晶振	ELM3	14 MHz	30 pF	5mm	3.2mm	1mm
ELM3-24.000MHz-18-R40-D4H-T	AEL晶振	ELM3	24 MHz	18 pF	5mm	3.2mm	1mm
ELM3-8.057MHz-18-R100-B4Y-T	AEL晶振	ELM3	8.057 MHz	18 pF	5mm	3.2mm	1mm
ELM8-12.000MHz-10-R50-D4Y-T	AEL晶振	ELM8	12 MHz	10 pF	3mm	2.5mm	0.6mm
ELM8-12.5829MHz-16-R60-1U-T	AEL晶振	ELM8	12.5829 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-14.000MHz-16-R150-B1U-T	AEL晶振	ELM8	14.8 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-18.432MHz-16-R80-DQ-T	貼片晶振	ELM8	18.432 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-10-R60-D1W-T	AEL晶振	ELM8	24 MHz	10 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-18-R60-B1W-T	AEL晶振	ELM8	24 MHz	18 pF	3mm	2.5mm	0.6mm
ELM8-24.000MHz-9-R40-N1U-T	AEL晶振	ELM8	24 MHz	9 pF	3mm	2.5mm	0.6mm
ELM8-26.000MHz-18-R60-B1U-T	AEL晶振	ELM8	26 MHz	18 pF	3mm	2.5mm	0.6mm
ELM8-32.000MHz-16-R40-B1U-T	AEL晶振	ELM8	32 MHz	16 pF	3mm	2.5mm	0.6mm
ELM8-32.000MHz-9-R40-D1G-T	AEL晶振	ELM8	32 MHz	9 pF	3mm	2.5mm	0.6mm
ELS05-32.768kHz-9-T	AEL晶振	ELS05	32.768 kHz	9 pF	1.6mm	1mm	0.5mm
ELS06-32.768kHz-9-T	AEL晶振	ELS06	32.768 kHz	9 pF	2mm	1.2mm	0.6mm
ELS07-32.768kHz-6-T	AEL晶振	ELS07	32.768 kHz	6 pF	3.2mm	1.5mm	0.75mm
ELS07-32.768kHz-T	AEL晶振	ELS07	32.768 kHz	12.5 pF	3.2mm	1.5mm	0.75mm
ELS13-32.768kHz-7-T	AEL晶振	ELS13	32.768 kHz	7 pF	7mm	1.5mm	1.4mm
ELS13-32.768kHz-9-T	AEL晶振	ELS13	32.768 kHz	9 pF	7mm	1.5mm	1.4mm
ELS13-32.768kHz-T	AEL晶振	ELS13	32.768 kHz	12.5 pF	7mm	1.5mm	1.4mm
ELS25-32.768kHz-6-2-T	AEL晶振	ELS25	32.768 kHz	6 pF	8mm	3.8mm	2.4mm
ELS25-32.768kHz-T	AEL晶振	ELS25	32.768 kHz	12.5 pF	8mm	3.8mm	2.4mm
