當前位置：首頁 » 歐美晶振 » AEL晶振 » ELM11-32.000MHz-10-R60-D1X-T,ELM11高質量晶振,艾爾導航定位晶振

prevnext

ELM11-32.000MHz-10-R60-D1X-T,ELM11高質量晶振,艾爾導航定位晶振

頻率：32MHZ

尺寸：2.0x1.6mm

ELM11-32.000MHz-10-R60-D1X-T,ELM11高質量晶振,艾爾導航定位晶振，尺寸2.0x1.6mm，頻率32MHZ，英國AEL晶振，歐美進口晶振，高質量晶振，高精度晶振，石英晶體諧振器，低損耗晶振，低耗能晶振，低成本晶振，水晶振動子，環保晶體，石英貼片晶振，輕薄型晶振，SMD晶振，石英晶振，2016mm貼片晶振，32MHZ貼片晶振，GPS導航定位晶振，可穿戴設備晶振，智能家居晶振，無線通信晶振，便攜式設備晶振，娛樂設備晶振，數字音頻晶振，照相機專用晶振，具有輕薄小高精度的特點。SMD晶振產品主要應用范圍包含：GPS導航定位，可穿戴設備，智能家居，無線通信，便攜式設備，娛樂設備，數字音頻，照相機等應用。ELM11-32.000MHz-10-R60-D1X-T,ELM11高質量晶振,艾爾導航定位晶振.

訂購熱線：86-0755-27838351

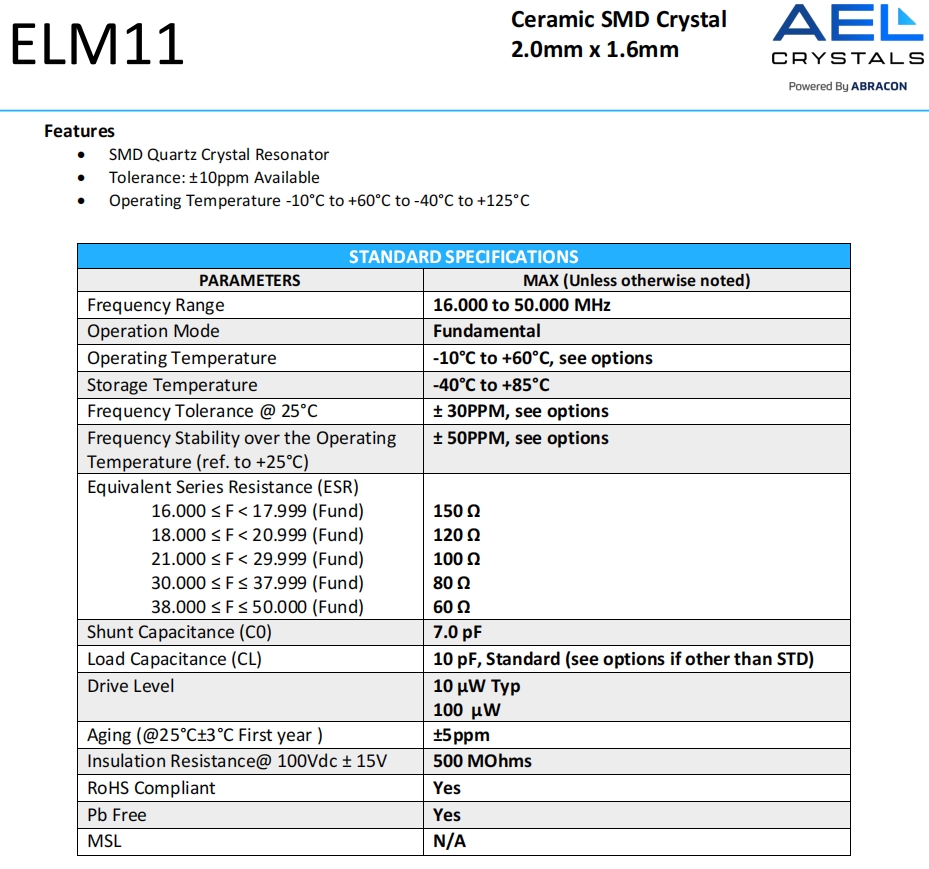

ELM11-32.000MHz-10-R60-D1X-T,ELM11高質量晶振,艾爾導航定位晶振 參數表

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range

32.000 MHz

Operation Mode

Fundamental

Operating Temperature

-10°C to +60°C, see options

Storage Temperature

-40°C to +85°C

Frequency Tolerance @ 25°C

± 30PPM, see options

Frequency Stability over the Operating
Temperature (ref. to +25°C)

± 50PPM, see options

Equivalent Series Resistance (ESR)
              16.000 ≤ F < 17.999 (Fund)
              18.000 ≤ F < 20.999 (Fund)
              21.000 ≤ F < 29.999 (Fund)
              30.000 ≤ F ≤ 37.999 (Fund)
              38.000 ≤ F ≤ 50.000 (Fund)

150 ?
120 ?
100 ?
80 ?
60 ?

Shunt Capacitance (C0)

7.0 pF

Load Capacitance (CL)

10 pF, Standard (see options if other than STD)

Drive Level

10 μW Typ
100 μW

Aging (@25°C±3°C First year )

±5ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

RoHS Compliant

Yes

Pb Free

Yes

MSL

N/A

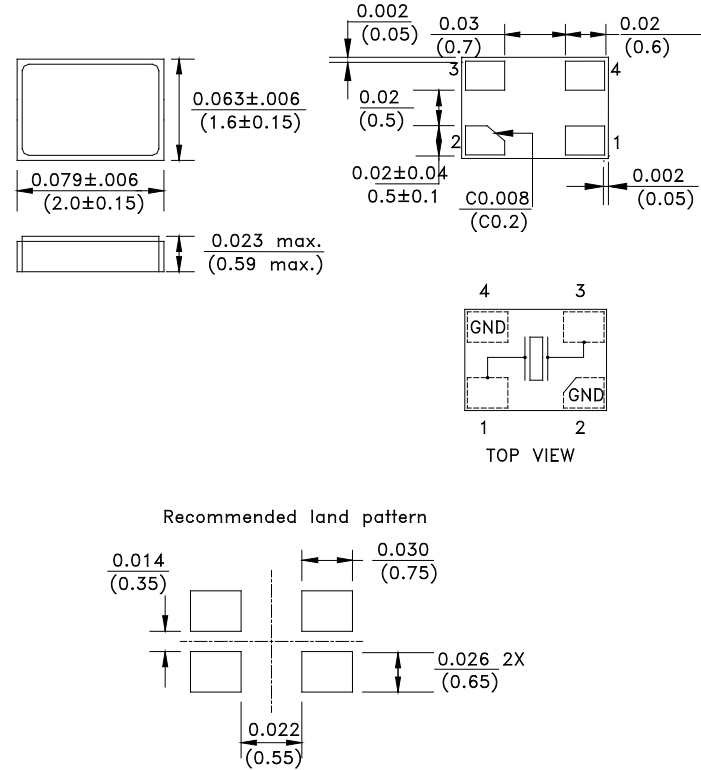

ELM11-32.000MHz-10-R60-D1X-T,ELM11高質量晶振,艾爾導航定位晶振 尺寸圖

ELM11-32.000MHz-10-R60-D1X-T,ELM11高質量晶振,艾爾導航定位晶振

產品特點：

SMD石英晶振

公差：±10ppm可用

工作溫度-10°C至+60°C至-40°C至+125°C

Part	Brand	Length	Width	Height	Operating Temperature	Frequency
ELLS-10.000MHz-20-R60-J-Q-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 105°C	10 MHz
ELLS-12.000MHz-18-R60-A-4-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	12 MHz
ELLS-13.560MHz-10-R35-A4Y-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	13.56 MHz
ELLS-30.000MHz-10-R50-B1U-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-20°C ~ 70°C	30 MHz
ELLS-4.000MHz-16-R120-A4-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	4 MHz
ELLS-4.000MHz-16-R120-B1X-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-25°C ~ 75°C	4 MHz
ELLS-4.000MHz-30-R120-D4-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 85°C	4 MHz
ELLS-8.000MHz-16-R45-D4-F-T	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 85°C	8 MHz
ELM10-16.000MHz-8-R60-2-D20-T	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	16 MHz
ELM10-24.000MHz-16-R100-X-N15-T	AEL Crystals	2.5mm	2mm	0.5mm	-30°C ~ 85°C	24 MHz
ELM11-32.000MHz-10-R60-D1X-T	AEL Crystals	2mm	1.6mm	0.5mm	-40°C ~ 85°C	32 MHz
ELM3-12.000MHz-30-R80-D4Y-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	12 MHz
ELM3-14.000MHz-30-R80-D4H-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	14 MHz
ELM3-24.000MHz-18-R40-D4H-T	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	24 MHz
ELM3-8.057MHz-18-R100-B4Y-T	AEL Crystals	5mm	3.2mm	1mm	-20°C ~ 70°C	8.057 MHz
ELM8-12.000MHz-10-R50-D4Y-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz
ELM8-12.5829MHz-16-R60-1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-10°C ~ 60°C	12.5829 MHz
ELM8-14.000MHz-16-R150-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	14.8 MHz
ELM8-18.432MHz-16-R80-DQ-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	18.432 MHz
ELM8-24.000MHz-10-R60-D1W-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz
ELM8-24.000MHz-18-R60-B1W-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	24 MHz
ELM8-24.000MHz-9-R40-N1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-30°C ~ 85°C	24 MHz
ELM8-26.000MHz-18-R60-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	26 MHz
ELM8-32.000MHz-16-R40-B1U-T	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 75°C	32 MHz
ELM8-32.000MHz-9-R40-D1G-T	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	32 MHz
ELS07-32.768kHz-6-T	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
ELS07-32.768kHz-T	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-7-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-7-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-9-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS13-32.768kHz-T	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-6-2-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS25-32.768kHz-T	AEL Crystals	8mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
ELS06-32.768kHz-9-T	AEL Quartzcrystal	2mm	1.2mm	0.6mm	-40°C ~ 85°C	32.768 kHz
ELS05-32.768kHz-9-T	AEL Crystals	1.6mm	1mm	0.5mm	-40°C ~ 85°C	32.768 kHz
ELM12W-24.000MHz-6-R120-D7X-T	AEL Crystals	1.6mm	1.2mm	0.4mm	-40°C ~ 85°C	24 MHz
X10M000000L121	AEL Crystals	11.3mm	4mm	16mm	-20°C ~ 70°C	10 MHz
X10M000000S065	AEL Crystals	12.3mm	4.6mm	4.3mm	-40°C ~ 105°C	10 MHz
X12M000000S081	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	12 MHz
X12M000000S096	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	12 MHz
X12M000000S118	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	12 MHz
X12M582900S001	AEL Crystals	3mm	2.5mm	0.6mm	-10°C ~ 60°C	12.5829 MHz
X13M560000S024	AEL Crystals	12.3mm	4.6mm	4.3mm	-10°C ~ 60°C	13.56 MHz
X14M000000S003	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	14 MHz
X14M800000S001	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	14.8 MHz
X16M000000S182	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	16 MHz
X16M000000S207	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	16 MHz
X18M432000S049	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	18.432 MHz
X21M948717S005	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 125°C	21.948717 MHz
X24M000000S029	AEL Crystals	2.5mm	2mm	0.5mm	-30°C ~ 85°C	24 MHz
X24M000000S049	AEL Crystals	2.5mm	2mm	0.5mm	-40°C ~ 85°C	24 MHz
X24M000000S050	AEL Crystals	3mm	2.5mm	0.6mm	-40°C ~ 85°C	24 MHz
X24M000000S079	AEL Crystals	5mm	3.2mm	1mm	-40°C ~ 85°C	24 MHz
X24M000000S094	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	24 MHz
X24M000000S303	AEL Crystals	3mm	2.5mm	0.6mm	-30°C ~ 85°C	24 MHz
X26M000000S301	AEL Crystals	3mm	2.5mm	0.6mm	-20°C ~ 70°C	26 MHz
X30M000000S005	AEL Crystals	12.3mm	4.6mm	4.3mm	-20°C ~ 70°C	30 MHz
X32K768L025	AEL Crystals	2.1mm	6.2mm	13.2mm	-10°C ~ 60°C	32.768 kHz
X32K768L104	AEL Crystals	2.9mm	8mm	17mm	-10°C ~ 60°C	32.768 kHz
X32K768S003	AEL Crystals	7.9mm	3.8mm	2.4mm	-40°C ~ 85°C	32.768 kHz
X32K768S012	AEL Crystals	3.2mm	1.5mm	0.75mm	-40°C ~ 85°C	32.768 kHz
X32K768S013	AEL Crystals	7mm	1.5mm	1.4mm	-40°C ~ 85°C	32.768 kHz
