松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ

頻率：32.768KHZ

尺寸：1.6x1.0mm

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ，尺寸1.6x1.0mm，頻率32.768KHZ，Suntsu小封裝晶振，32.768KHZ音叉晶體，歐美無源晶體，1610mm高性能晶振，32.768K晶振，無源貼片晶振，無源晶振，石英SMD晶體，低功耗晶振，低耗能晶振，低損耗晶振，低老化晶振，高品質晶振，實時時鐘晶振，小家電晶振，智能手表晶振，藍牙耳機晶振，小型設備晶振，測試測量晶振，儀器儀表晶振，無線通信晶振，具備超高的耐壓性能，32.768K時鐘晶振產品被廣泛應用各個領域之中，特別適合用于實時時鐘，小家電，智能手表，藍牙耳機，小型設備，測試測量，儀器儀表，無線通信等應用。松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ.

訂購熱線：86-0755-27838351

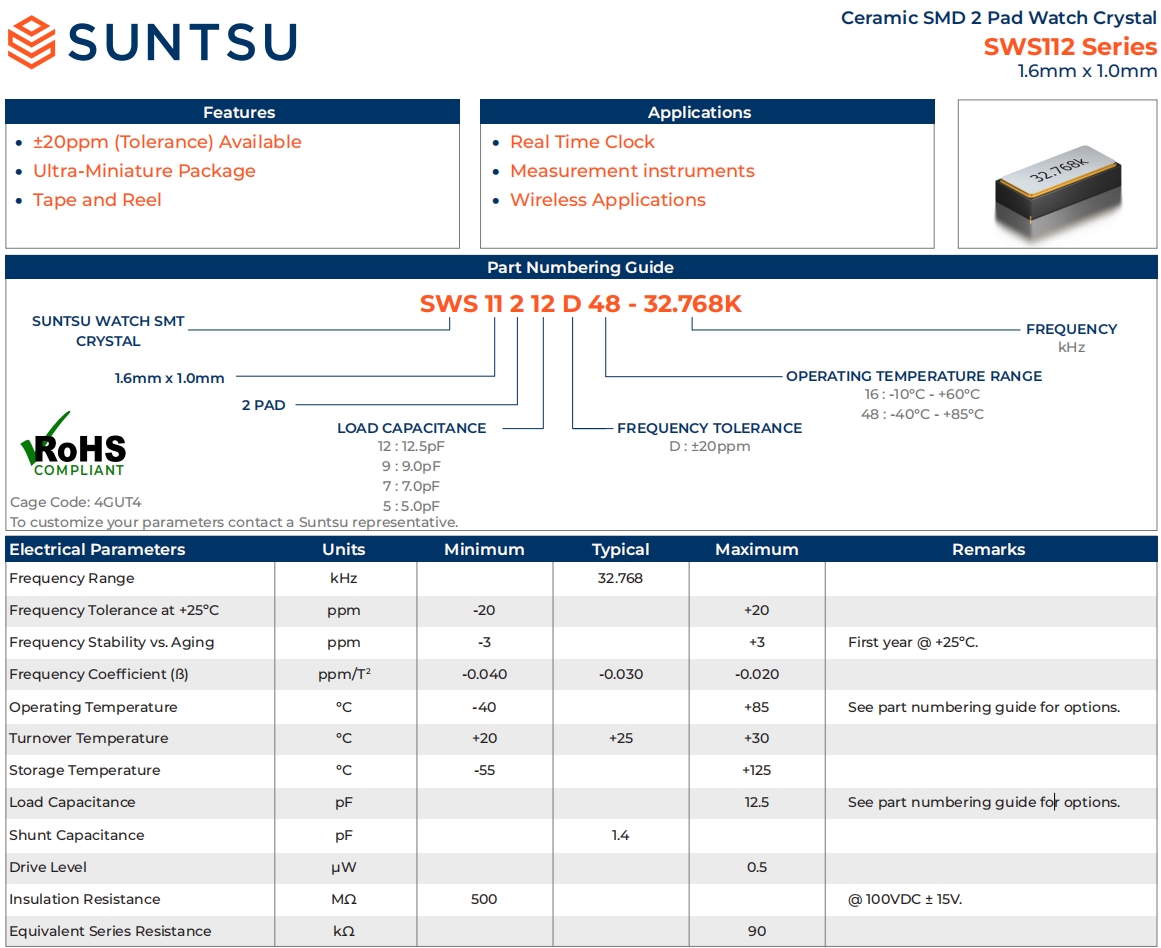

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ 參數表

Electrical Parameters Units Minimum Typical Maximum Remarks

Frequency Range

kHz

32.768

Frequency Tolerance at +25ºC

ppm

-20

+20

Frequency Stability vs. Aging

ppm

-3

First year @ +25ºC.

Frequency Coefficient (?)

ppm/T2

-0.040

-0.030

-0.020

Operating Temperature

°C

-40

+85

See part numbering guide for options.

Turnover Temperature

°C

+20

+25

+30

Storage Temperature

°C

-55

+125

Load Capacitance

12.5

See part numbering guide for options.

Shunt Capacitance

1.4

Drive Level

µW

0.5

Insulation Resistance

500

@ 100VDC ± 15V.

Equivalent Series Resistance

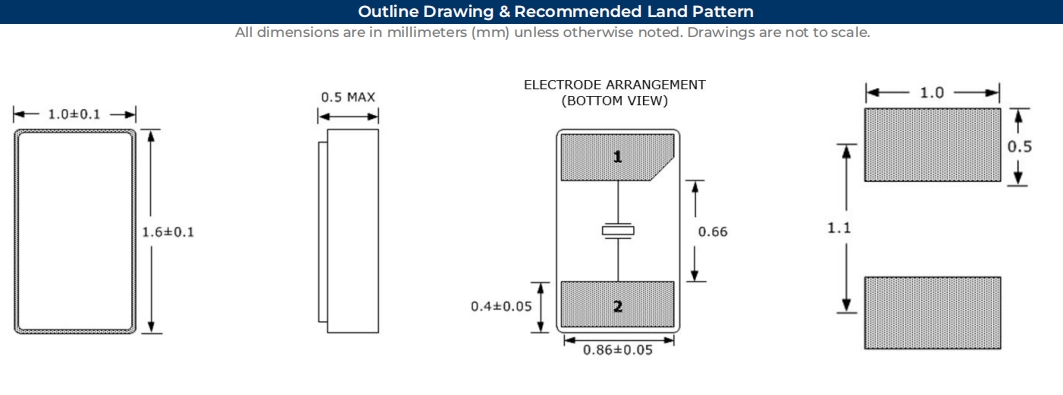

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ 尺寸圖

松圖1610晶體,SWS11212D48-32.768K,SWS112,32.768KHZ

32.768K晶振產品特點：

±20ppm（公差）可用

超小型封裝

磁帶和卷軸

Part Number	Package Size	Load Cap.	Freq. Tolerance	Operating Temp.	Frequency
SWS11212D16-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS11212D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS1127D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS1129D16-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS1129D48-32.768K	1.6X1.0 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS14412D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS14412D48B-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS1446D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS1446D48B-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS1449D48A-32.768K	10.4X4.06 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS21212D48-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS2129F48-32.768K	2.0X1.2 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±10ppm	-40℃ - +85℃	32.768K
SWS31212D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS31212D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS3126D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS3126D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS3127D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS3127D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS3129D16-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS3129D48-32.768K	3.2X1.5 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
SWS41212D16-32.768K	4.1X1.5 CERAMIC SMD晶振 (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS41212D48-32.768K	4.1X1.5 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS51212D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS5127D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS5129D16-32.768K	4.9X1.8 CERAMIC SMD (2 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS61412D48-32.768K	6.9X1.4 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS83412D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-10℃ - +60℃	32.768K
SWS83412D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	12.5pF	±20ppm	-40℃ - +85℃	32.768K
SWS8346D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-10℃ - +60℃	32.768K
SWS8346D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	6pF	±20ppm	-40℃ - +85℃	32.768K
SWS8347D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	7pF	±20ppm	-10℃ - +60℃	32.768K
SWS8347D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	7pF	±20ppm	-40℃ - +85℃	32.768K
SWS8349D16-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-10℃ - +60℃	32.768K
SWS8349D48-32.768K	8.0X3.8 PLASTIC SMD (4 PAD) Watch Crystal	9pF	±20ppm	-40℃ - +85℃	32.768K
