當前位置：首頁 » 日產晶振 » NDK晶振 » 6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B

prevnext

6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B

頻率：156.25MHZ

尺寸：3.2*2.5mm

6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B，尺寸為3.2*2.5mm，頻率156.25MHZ，輸出邏輯為LVPECL，LVPECL差分晶振，LVPECL輸出晶振，OSC差分晶振，低電壓差分晶振，低抖動差分晶振，低損耗差分振蕩器，高性能差分晶振，高品質差分晶振，通訊差分晶振，工業級差分振蕩器，6G模塊差分晶振，光通訊差分信號輸出LVPECL，基站專用差分晶振，路由器差分晶振，汽車音響差分晶振，物聯網差分晶振，具有低電壓低抖動高精度的特點，貼片差分晶振產品非常適合用于5G兼容設備、基站、光網絡單元、SDH/SONET設備，低端路由器、以太網、光收發器，無線網絡設備，汽車音響、汽車電腦等領域。6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B.

訂購熱線：86-0755-27838351

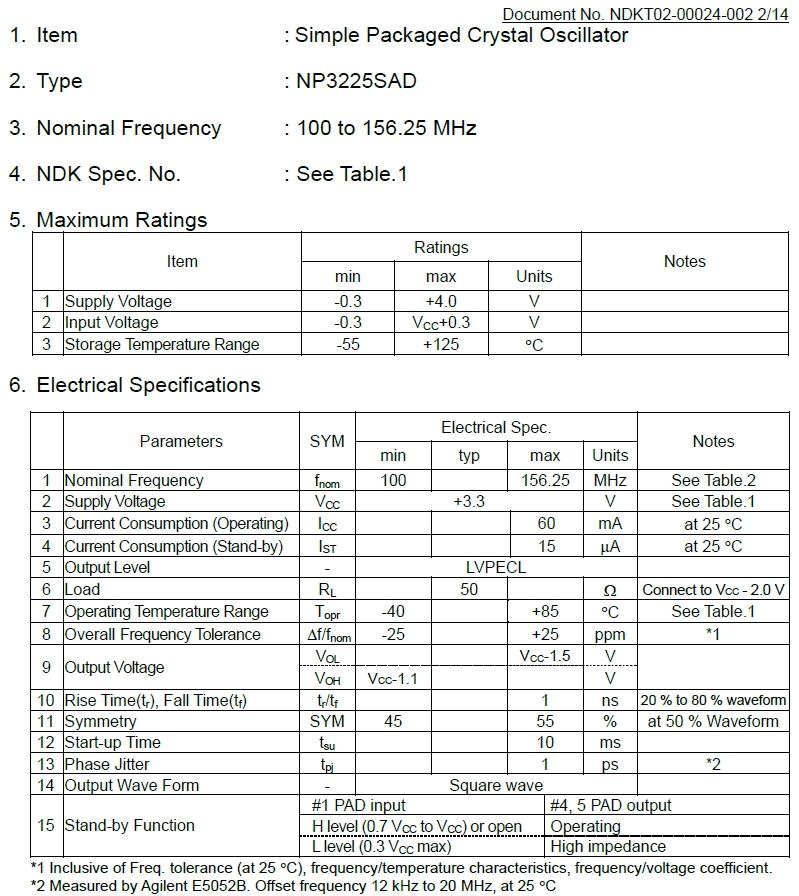

6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B 參數表

Item

Ratings

Notes

min

max

Units

Supply Voltage

-0.3

+4.0

Input Voltage

-0.3

VCC+0.3

Storage Temperature Range

-55

+125

。C

Parameters

SYM

Electrical Spec.

Notes

min

typ

max

Units

Nominal Frequency

fnom

156.25

MHz

See Table.2

Supply Voltage

VCC

+3.3

See Table.1

Current Consumption (Operating)

ICC

at 25 。C

Current Consumption (Stand-by)

IST

μA

at 25 。C

Output Level

LVPECL

Load

Connect to VCC - 2.0 V

Operating Temperature Range

Topr

-40

+85

。C

See Table.1

Overall Frequency Tolerance

Δf/fnom

-25

+25

ppm

Output Voltage

VOL

VCC- 1.5

VOH

VCC- 1.1

Rise Time(tr), Fall Time(tf)

tr/tf

20 % to 80 % waveform

Symmetry

SYM

at 50 % Waveform

Start-up Time

tsu

Phase Jitter

tpj

Output Wave Form

Square wave

Stand-by Function

#1 PAD input

#4, 5 PAD output

H level (0.7 VCC to VCC) or open

Operating

L level (0.3 VCC max)

High impedance

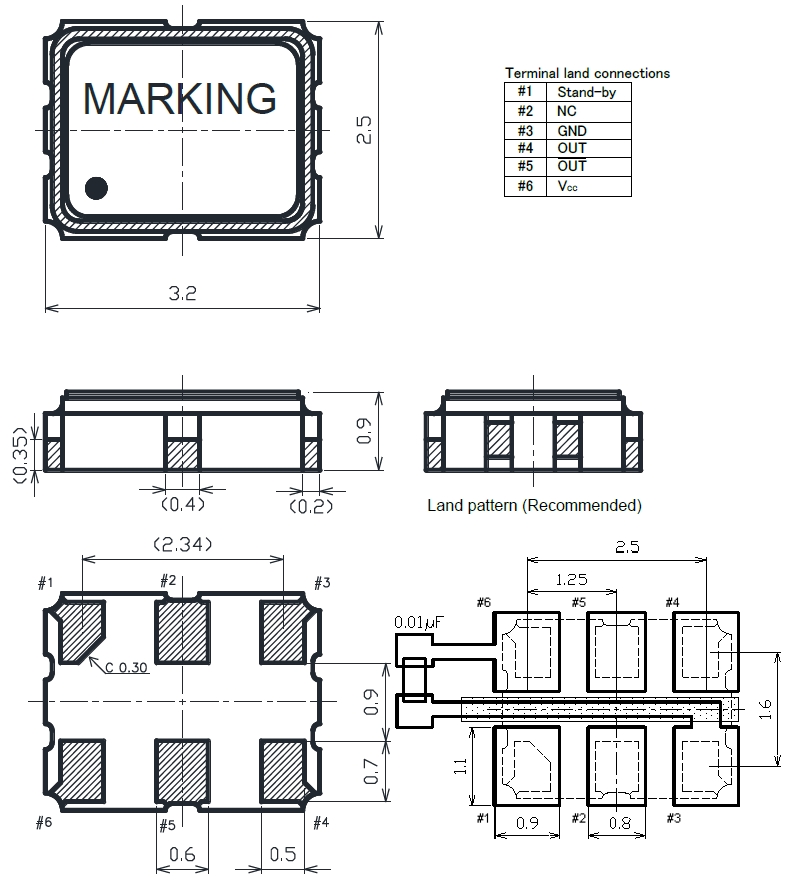

6G基站晶振,NDK汽車音響專用振蕩器,NP3225SAD-156.25MHZ-NSC5347B 尺寸圖

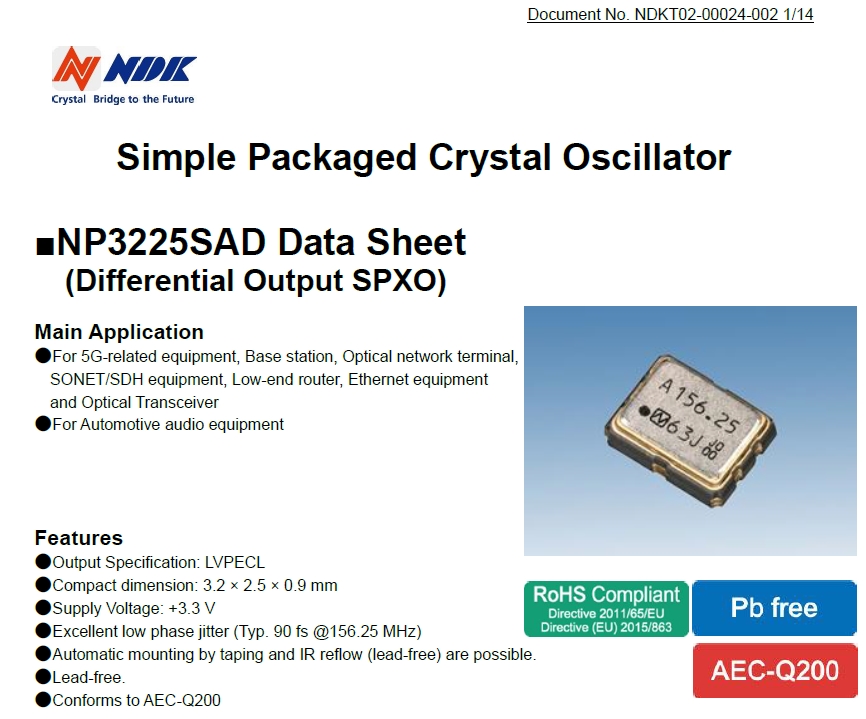

產品特性：

LVDS差分輸出SPXO晶體振蕩器

緊湊型:3.2 x 2.5 x 0.9毫米

電源電壓:+2.5V或者+3.3V

低相位抖動:典型。156.25 MHz時為47fs

通過纏繞自動安裝和IR回流(無鉛)是可能的。

無鉛

更多相關日本電波NDK晶振型號

Model	Nominal frequency[MHz]	Specification number	晶振廠家	Package size(LxW)[mm]	Output specification	Operating temperature rang[℃]	Storage temperature range[℃]	Supply voltage[V]
NP3225SC	100MHZ	NSC5082A	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+2.5±0.125
NP3225SC	156.25MHZ	NSC5082A	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+2.5±0.125
NP3225SC	100MHZ	NSC5345B	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+3.3±0.33
NP3225SC	156.25MHZ	NSC5345B	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+3.3±0.33
NP3225SC	100MHZ	NSC5191A	NDK晶振	3.2x2.5	HCSL	-40~+105	-55~+125	+2.5±0.125
NP3225SC	156.25MHZ	NSC5191A	NDK晶振	3.2x2.5	HCSL	-40~+105	-55~+125	+2.5±0.125
NP3225SC	100MHZ	NSC5346B	NDK晶振	3.2x2.5	HCSL	-40~+105	-55~+125	+3.3±0.33
NP3225SC	156.25MHZ	NSC5346B	NDK晶振	3.2x2.5	HCSL	-40~+105	-55~+125	+3.3±0.33
NP3225SAB	100MHZ	NSC5186A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SAB	125MHZ	NSC5186A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SAB	156.25MHZ	NSC5186A	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+2.5±0.125
NP3225SAB	100MHZ	NSC5186B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SAB	125MHZ	NSC5186B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SAB	156.25MHZ	NSC5186B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SBB	100MHZ	NSC5187A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SBB	125MHZ	NSC5187A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SBB	156.25MHZ	NSC5187A	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+2.5±0.125
NP3225SBB	100MHZ	NSC5187B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SBB	125MHZ	NSC5187B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SBB	156.25MHZ	NSC5187B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SAD	100MHZ	NSC5347B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SAD	156.25MHZ	NSC5347B	NDK晶振	3.2x2.5	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP3225SBD	100MHZ	NSC5348B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SBD	156.25MHZ	NSC5348B	NDK晶振	3.2x2.5	LVDS	-40~+85	-55~+125	+3.3±0.33
NP3225SCD	100MHZ	NSC5349B	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+3.3±0.33
NP3225SCD	156.25MHZ	NSC5349B	NDK晶振	3.2x2.5	HCSL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	100MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	102.564MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	125MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	133.33MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	133.333MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	148.5MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	156.25MHZ	NSC5400A	NDK晶振	5.0x3.2	LVPECL	0~70	-55~+125	+3.3±0.33
NP5032SA	100MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	102.564MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	125MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	133.33MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	133.333MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	148.5MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	156.25MHZ	NSC5400B	NDK晶振	5.0x3.2	LVPECL	0~85	-55~+125	+3.3±0.33
NP5032SA	100MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	102.564MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	125MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	133.33MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	133.333MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	148.5MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SA	156.25MHZ	NSC5400C	NDK晶振	5.0x3.2	LVPECL	-40~+85	-55~+125	+3.3±0.33
NP5032SB	100MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	102.564MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	125MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	148.5MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	156.25MHZ	NSC5401A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+2.5±0.125
NP5032SB	100MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	102.564MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	125MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	148.5MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	156.25MHZ	NSC5402A	NDK晶振	5.0x3.2	LVDS	0~70	-55~+125	+3.3±0.33
NP5032SB	100MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	102.564MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	125MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	148.5MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	156.25MHZ	NSC5401B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+2.5±0.125
NP5032SB	100MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	102.564MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	125MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	148.5MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	156.25MHZ	NSC5402B	NDK晶振	5.0x3.2	LVDS	0~85	-55~+125	+3.3±0.33
NP5032SB	100MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	102.564MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	125MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	148.5MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	156.25MHZ	NSC5401C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+2.5±0.125
NP5032SB	100MHZ	NSC5402C	NDK晶振	5.0x3.2	LVDS	-40~85	-55~+125	+3.3±0.33
