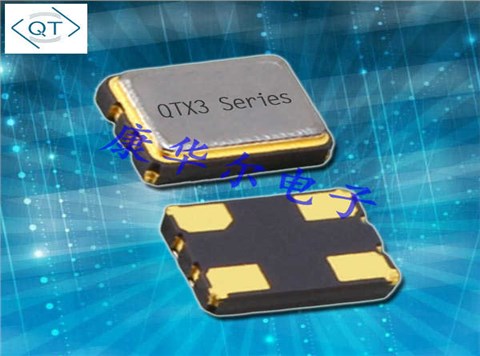

QTX333A24.5760B15TM,24.576MHz,3225mm,Quarztechnik醫療電子晶振，德國進口晶振，Quarztechnik夸克晶振，型號：QTX3，編碼為：QTX333A24.5760B15TM，頻率為：24.576MHz，電壓3.3V，工作溫度范圍：-40℃至+85℃，頻率穩定性：±25ppm，負載電容：15pF，小體積晶振尺寸：3.2x2.5x1.2mm封裝，四腳貼片晶振，石英晶體振蕩器，有源晶振，石英晶振，SMD時鐘振蕩器，無鉛環保晶振。QX3超微型振蕩器由一個TTL/HCMOS兼容的混合電路和一個微型石英晶體封裝在一個低輪廓，行業標準的陶瓷封裝中。3225晶振應用于：無線網絡，藍牙模塊，物聯網，移動通訊設備，測試設備，導航儀，汽車電子，電信，智能手機，平板電腦，智能家居，數碼電子等應用。
QTX333A24.5760B15TM,24.576MHz,3225mm,Quarztechnik醫療電子晶振，產品特征：
•超小型3.2x2.5x1.2毫米包裝
•頻率范圍1MHz至75MHz石英晶振
•標準的三態（啟用/禁用）功能
•電源電壓1.8V、2.5V或3.3V

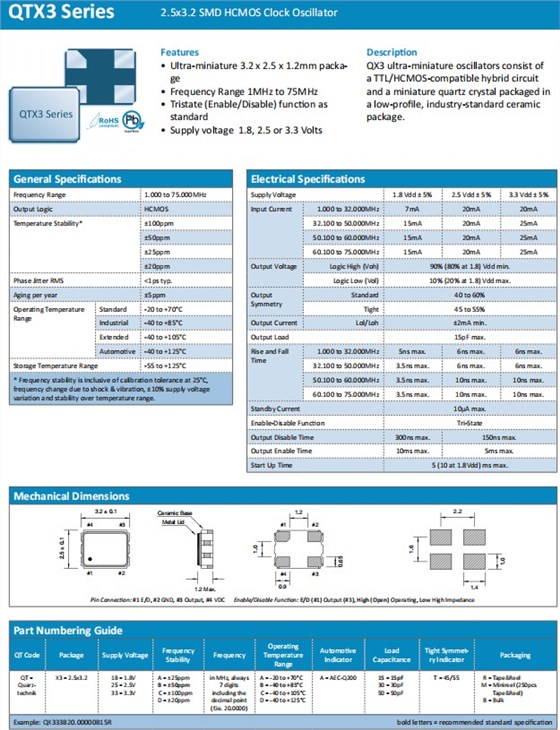

QTX333A24.5760B15TM,24.576MHz,3225mm,Quarztechnik醫療電子晶振,參數表
| General Specifications | ||
| Frequency Range | 24.576MHz | |
| Output Logic | HCMOS | |
| Temperature Stability* | ±100ppm | |
| ±50ppm | ||
| ±25ppm | ||
| ±20ppm | ||
| Phase Jitter RMS | <1ps typ. | |
| Aging per year | ±5ppm | |
|
Operating Temperature Range |
Standard | -20 to +70°C |
| Industrial | -40 to +85°C | |
| Extended | -40 to +105°C | |
| Automotive | -40 to +125°C | |
| Storage Temperature Range | -55 to +125°C | |
| * Frequency stability is inclusive of calibration tolerance at 25°C, frequency change due to shock & vibration, ±10% supply voltage variation and stability over temperature range. |
||

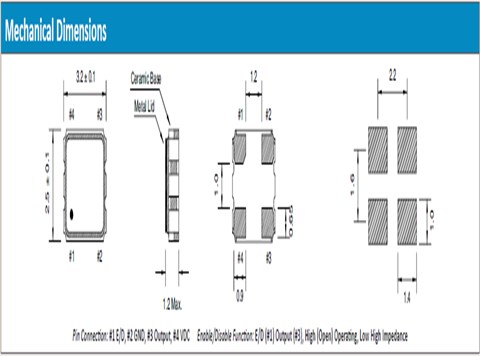

QTX333A24.5760B15TM,24.576MHz,3225mm,Quarztechnik醫療電子晶振,尺寸圖
| 晶振編碼 | 頻率 | 輸出邏輯 | 電壓 | 工作溫度范圍 | 頻率穩定性 |
| QTX533A3.68640B15M | 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A4.00000B15M | 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A7.37280B15M | 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A8.00000B15M | 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A10.0000B15M | 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A11.0592B15M | 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A12.0000B15M | 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A16.0000B15M | 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A16.3840B15M | 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A20.0000B15M | 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A24.5760B15M | 24.576 MHz | 貼片晶振 | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A25.0000B15M | 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A27.0000B15M | 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A30.0000B15M | 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A32.0000B15M | 32.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A3.68640B15TM | 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A4.00000B15TM | 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A7.37280B15TM | 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A8.00000B15TM | 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A10.0000B15TM | 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A11.0592B15TM | 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A12.0000B15TM | 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A14.7456B15TM | 14.7456 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A16.0000B15TM | 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A16.3840B15TM | 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A20.0000B15TM | 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A24.5760B15TM | 24.576 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A25.0000B15TM | 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A27.0000B15TM | 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX333A30.0000B15TM | 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
