全球首家上百萬進口晶振代理商

深圳市康華爾電子有限公司

國際進口晶振品牌首選康華爾

首頁 FOX晶振

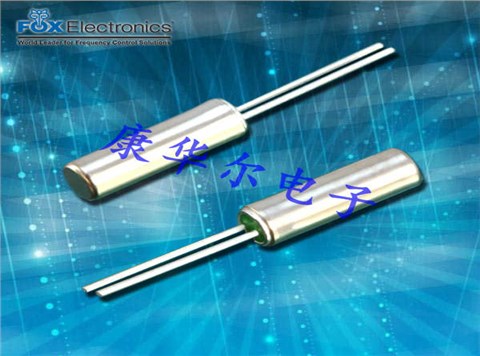

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體

產品簡介

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體，美國進口晶振，?？怂咕д?，F(xiàn)OX晶振，型號：FKT26（Former NC26LF），編碼為：NC26LF-327，頻率：32.768KHz，小體積晶振尺寸：2.0x6.0mm，兩腳插件晶振，石英晶振，無源晶振，圓柱晶振，音叉表晶，石英晶體諧振器，無鉛晶振。應用于：無線藍牙晶振，電腦主板晶振，數碼電子晶振，計時晶振，數碼相機晶振，智能家居晶振，儀器設備晶振等應用。

產品詳情

1

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體，美國進口晶振，?？怂咕д?，FOX晶振，型號：FKT26（Former NC26LF），編碼為：NC26LF-327，頻率：32.768KHz，小體積晶振尺寸：2.0x6.0mm，兩腳插件晶振，石英晶振，無源晶振，圓柱晶振，音叉表晶，石英晶體諧振器，無鉛晶振。應用于：無線藍牙晶振，電腦主板晶振，數碼電子晶振，計時晶振，數碼相機晶振，智能家居晶振，儀器設備晶振等應用。

2

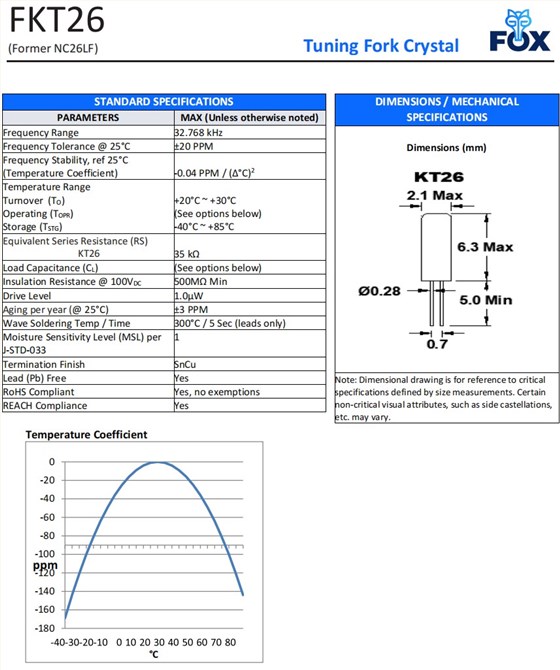

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體,參數表

PARAMETERS MAX (Unless otherwise noted)
Frequency Range 32.768 kHz
Frequency Tolerance @ 25°C ±20 PPM
Frequency Stability, ref 25°C
(Temperature Coefficient) 		-0.04 PPM / (△°C)2
Temperature Range
Turnover(TO)
Operating (TOPR)
Storage (TSTG) 		+20°C ~ +30°C
(See options below)
-40°C ~ +85°C
Equivalent Series Resistance (RS)
KT26 		35 kΩ
Load Capacitance (CL) (See options below)
Insulation Resistance @ 100VDC 500MΩMin
Drive Level 1.0µW
Aging per year (@ 25°C) ±3 PPM
Wave Soldering Temp / Time 300°C / 5 Sec (leads only)
Moisture Sensitivity Level (MSL) per
J-STD-033 		1
Termination Finish SnCu
Lead (Pb) Free Yes
RoHS Compliant Yes, no exemptions
REACH Compliance Yes

3

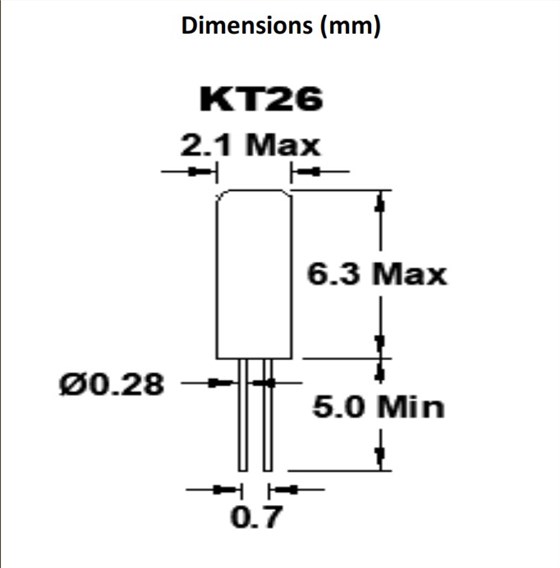

32.768kHz,NC26LF-327,NC26LF,FKT26,2x6mm,FOX音叉晶體,尺寸圖

FKT26，NC26LF尺寸

FKT26，NC26LF規格

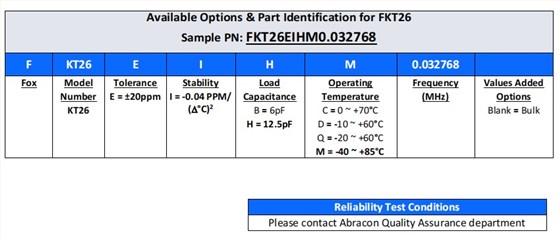

FKT26，NC26LF編碼

原廠編碼 進口晶振 型號 頻率 包裝/封裝 頻率穩定度
FOXSDLF/160-20 Fox晶振 HC49SDLF 16MHz HC49/US ±50ppm
FOXSDLF/200-20 Fox晶振 HC49SDLF 20MHz HC49/US ±50ppm
FOXSDLF/240F-20 Fox晶振 HC49SDLF 24MHz HC49/US ±50ppm
FOXSLF/200-20 Fox晶振 HC49SLF 20MHz HC49/US ±50ppm
FOXSLF/100-20 Fox晶振 HC49SLF 10MHz HC49/US ±50ppm
FX252BS-16.000 Fox晶振 FX252B 16MHz 4-SMD, No Lead ±50ppm
FQ5032B-20.000 Fox晶振 C5BQ 20MHz 4-SMD, No Lead ±30ppm
FOXLF100-20 Fox晶振 HC49ULF 10MHz HC49/U ±50ppm
FOXLF200-20 Fox晶振 HC49ULF 20MHz HC49/U ±50ppm
FQ3225B-24.000 Fox晶振 FQ3225B 24MHz 4-SMD, No Lead ±50ppm
FX252BS-24.000 Fox晶振 FX252B 24MHz 4-SMD, No Lead ±50ppm
FOXSLF/160-20 Fox晶振 HC49SLF 16MHz HC49/US ±50ppm
FOXSLF/160 Fox晶振 HC49SLF 16MHz HC49/US ±50ppm
FOXSLF/245F-20 Fox晶振 HC49SLF 24.576MHz HC49/US ±50ppm
FOXSLF/240F-20 Fox晶振 HC49SLF 24MHz HC49/US ±50ppm
FOXLF160 Fox晶振 HC49ULF 16MHz HC49/U ±50ppm
FOXLF160-20 Fox晶振 HC49ULF 16MHz HC49/U ±50ppm
FOXSDLF/245F-20 Fox晶振 HC49SDLF 24.576MHz HC49/US ±50ppm
FOXSDLF/100-20 Fox晶振 HC49SDLF 10MHz HC49/US ±50ppm
FOXSDLF/160R-20/TR Fox晶振 HC49SDLF 16MHz HC49/US ±50ppm
FOXSDLF/200R-20/TR Fox晶振 HC49SDLF 20MHz HC49/US ±50ppm
FOXSDLF/245FR-20/TR Fox晶振 HC49SDLF 24.576MHz HC49/US ±50ppm
FQ5032B-24.576 Fox晶振 C5BQ 24.576MHz 4-SMD, No Lead ±30ppm
FQ5032B-24.000 Fox晶振 C5BQ 24MHz 4-SMD, No Lead ±30ppm
FQ5032B-16.000 石英晶振 C5BQ 16MHz 4-SMD, No Lead ±30ppm
FQ5032BR-20.000 Fox晶振 C5BQ 20MHz 4-SMD, No Lead ±50ppm
FQ5032BR-24.000 Fox晶振 C5BQ 24MHz 4-SMD, No Lead ±50ppm
FQ7050B-10.000 Fox晶振 C7BQ 10MHz 4-SMD, No Lead ±30ppm
FQ3225B-16.000 Fox晶振 FQ3225B 16MHz 4-SMD, No Lead ±50ppm
FQ3225B-27.000 Fox晶振 FQ3225B 27MHz 4-SMD, No Lead ±50ppm
FQ3225BR-24.000 Fox晶振 FQ3225B 24MHz 4-SMD, No Lead ±50ppm
FOXSLF/200 Fox晶振 HC49SLF 20MHz HC49/US ±50ppm
FOXSDLF/100R-20/TR Fox晶振 HC49SDLF 10MHz HC49/US ±50ppm
FOXSDLF/240FR-20/TR Fox晶振 HC49SDLF 24MHz HC49/US ±50ppm
FX252BS-20.000 Fox晶振 FX252B 20MHz 4-SMD, No Lead ±50ppm
FQ5032BR-10.000 Fox晶振 C5BQ 10MHz 4-SMD, No Lead ±30ppm
FQ5032BR-16.000 Fox晶振 C5BQ 16MHz 4-SMD, No Lead ±50ppm
FX532B-10.000 Fox晶振 FX532B 10MHz 4-SMD, No Lead ±50ppm
FX425B-16.000 Fox晶振 FX425B 16MHz 4-SMD, No Lead ±50ppm
FQ5032B-10.000 Fox晶振 C5BQ 10MHz 4-SMD, No Lead ±30ppm
FQ3225B-20.000 Fox晶振 FQ3225B 20MHz 4-SMD, No Lead ±50ppm
FQ3225BR-16.000 Fox晶振 FQ3225B 16MHz 4-SMD, No Lead ±50ppm
FQ3225BR-20.000 Fox晶振 FQ3225B 20MHz 4-SMD, No Lead ±50ppm
FX532B-16.000 Fox晶振 FX532B 16MHz 4-SMD, No Lead ±50ppm
FX532B-20.000 Fox晶振 FX532B 20MHz 4-SMD, No Lead ±50ppm
FX532B-24.000 Fox晶振 FX532B 24MHz 4-SMD, No Lead ±50ppm
FX532B-24.576 Fox晶振 FX532B 24.576MHz 4-SMD, No Lead ±50ppm
FX425B-20.000 Fox晶振 FX425B 20MHz 4-SMD, No Lead ±50ppm
FX425B-24.000 Fox晶振 FX425B 24MHz 4-SMD, No Lead ±50ppm
FX425B-24.576 Fox晶振 FX425B 24.576MHz 4-SMD, No Lead ±50ppm
FPXLF100-20 Fox晶振 FPXLF 10MHz 4-SMD, No Lead ±50ppm
FPXLF160 Fox晶振 FPXLF 16MHz 4-SMD, No Lead ±50ppm
FPXLF160-20 Fox晶振 FPXLF 16MHz 4-SMD, No Lead ±50ppm
FPXLF200-20 Fox晶振 FPXLF 20MHz 4-SMD, No Lead ±50ppm
