EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器

頻率：212.5MHZ

尺寸：7.0*5.0mm

EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器，尺寸為7.0*5.0mm,頻率為212.5MHZ,輸出邏輯LVDS，OSC差分晶振，差分晶體振蕩器，EPSON差分晶振，差分晶振LVDS，低電壓差分振蕩器，低相位差分晶振，高頻差分晶振，低損耗差分振蕩器，6G光模塊差分晶振，差分貼片晶振，6G路由器差分晶振，無線設備差分晶振，產品具備低電壓電相位的特點。

差分晶振優點是抗干擾能力強，缺點是布線需注意。
1）電平幅度大，信號高低電平之間的轉換時間長，不適用于傳輸頻率達到100MHZ以上的信號
2）輸出信號為單端信號（一條線），傳輸路徑受到干擾，不利于長線傳輸
3）功耗大，大家都知道TTL器件的靜態功耗較大，即使靜態功耗小的CMOS器件，由于電平擺幅寬，其動態功耗也偏大。EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器.

訂購熱線：86-0755-27838351

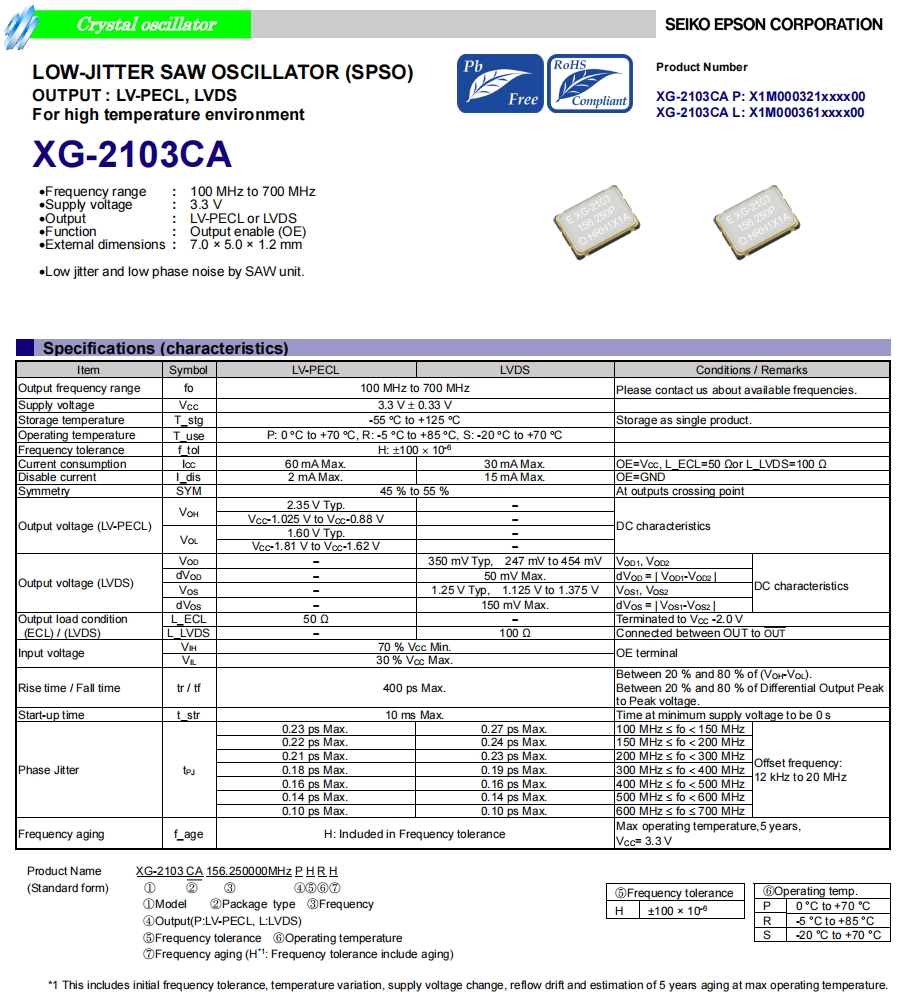

EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器 參數表

Specifications (characteristics)

Item

Symbol

LV-PECL

LVDS

Conditions / Remarks

Output frequency range

212.5 MHz

Please contact us about available frequencies.

Supply voltage

VCC

3.3 V ± 0.33 V

Storage temperature

T_stg

-55 °C to +125 °C

Storage as single product.

Operating temperature

T_use

P: 0 °C to +70 °C, R: -5 °C to +85 °C , S: -20 °C to +70 °C

Frequency tolerance

f_tol

H: ±100 × 10-6

Current consumption

ICC

60 mA Max.

30 mA Max.

OE=VCC, L_ECL=50 Ωor L_LVDS=100 Ω

Disable current

I_dis

2 mA Max.

15 mA Max.

OE=GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage (LV-PECL)

VOH

2.35 V Typ.

−

DC characteristics

VCC- 1.025 V to VCC-0.88 V

−

VOL

1.60 V Typ.

−

VCC- 1.81 V to VCC- 1.62 V

−

Output voltage (LVDS)

VOD

−

350 mV Typ, 247 mV to 454 mV

VOD1 , VOD2

DC characteristics

dVOD

−

50 mV Max.

dVOD = | VOD1-VOD2 |

VOS

−

1.25 V Typ, 1.125 V to 1.375 V

VOS1 , VOS2

dVOS

−

150 mV Max.

dVOS = | VOS1-VOS2 |

Output load condition
(ECL) / (LVDS)

L_ECL

50 Ω

−

Terminated to VCC -2.0 V

L_LVDS

−

100 Ω

Connected between OUT to OUT

Input voltage

VIH

70 % VCC Min.

OE terminal

VIL

30 % VCC Max.

Rise time / Fall time

tr / tf

400 ps Max.

Between 20 % and 80 % of (VOH-VOL).
Between 20 % and 80 % of Differential Output Peak
to Peak voltage.

Start-up time

t_str

10 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

tPJ

0.23 ps Max.

0.27 ps Max.

100 MHz ≤ fo < 150 MHz

Offset frequency:
12 kHz to 20 MHz

0.22 ps Max.

0.24 ps Max.

150 MHz ≤ fo < 200 MHz

0.21 ps Max.

0.23 ps Max.

200 MHz ≤ fo < 300 MHz

0.18 ps Max.

0.19 ps Max.

300 MHz ≤ fo < 400 MHz

0.16 ps Max.

400 MHz ≤ fo < 500 MHz

0.14 ps Max.

500 MHz ≤ fo < 600 MHz

0.10 ps Max.

600 MHz ≤ fo ≤ 700 MHz

Frequency aging

f_age

H: Included in Frequency tolerance

Max operating temperature,5 years,
VCC= 3.3 V

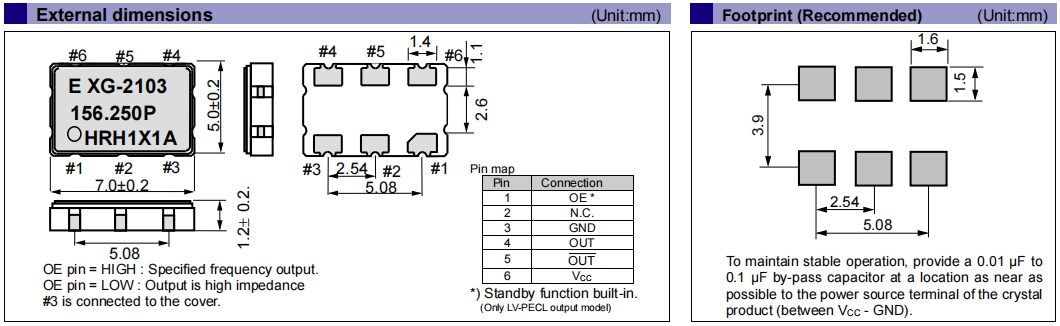

EPSON愛普生晶振,X1M0003610001,6G模塊晶振,XG-2103CA石英差分振蕩器 尺寸圖

OSC晶振產品特性：

頻率范圍:100mhz ~ 700mhz

電源電壓:3.3 V

輸出:LV-PECL或LVDS

外部尺寸:7.0 × 5.0 × 1.2 mm

低抖動和低相位噪聲由SAW單元。更多相關日本EPSON晶振型號
