6G無線網絡晶振,X1G0050110004,EPSON高頻差分晶振SG-8503CA

頻率：100MHZ

尺寸：7.0×5.0×1.5mm

6G無線網絡晶振,X1G0050110004,EPSON高頻差分晶振SG-8503CA，尺寸為7.0×5.0×1.5mm，頻率為100MHZ，輸出邏輯LV-PECL，差分晶振LV-PECL，差分有源晶振，LV-PECL差分振蕩器，進口LV-PECL差分振蕩器，低電壓差分振蕩器，低抖動差分晶振，低耗能差分晶振，高頻差分晶振，100MHZ差分振蕩器，儀器設備差分晶振，6G光模塊差分晶振，網絡設備專用差分晶振，儀器儀表專用差分晶振，測試設備專用差分振蕩器，100MHZ差分晶振。

OscillatorCrystal有源晶振產品比較適合用于無線網絡，智能家居，物聯網，醫療產品，以及OTN, BTS，測試儀器，光模塊，路由器等領域。6G無線網絡晶振,X1G0050110004,EPSON高頻差分晶振SG-8503CA.

訂購熱線：86-0755-27838351

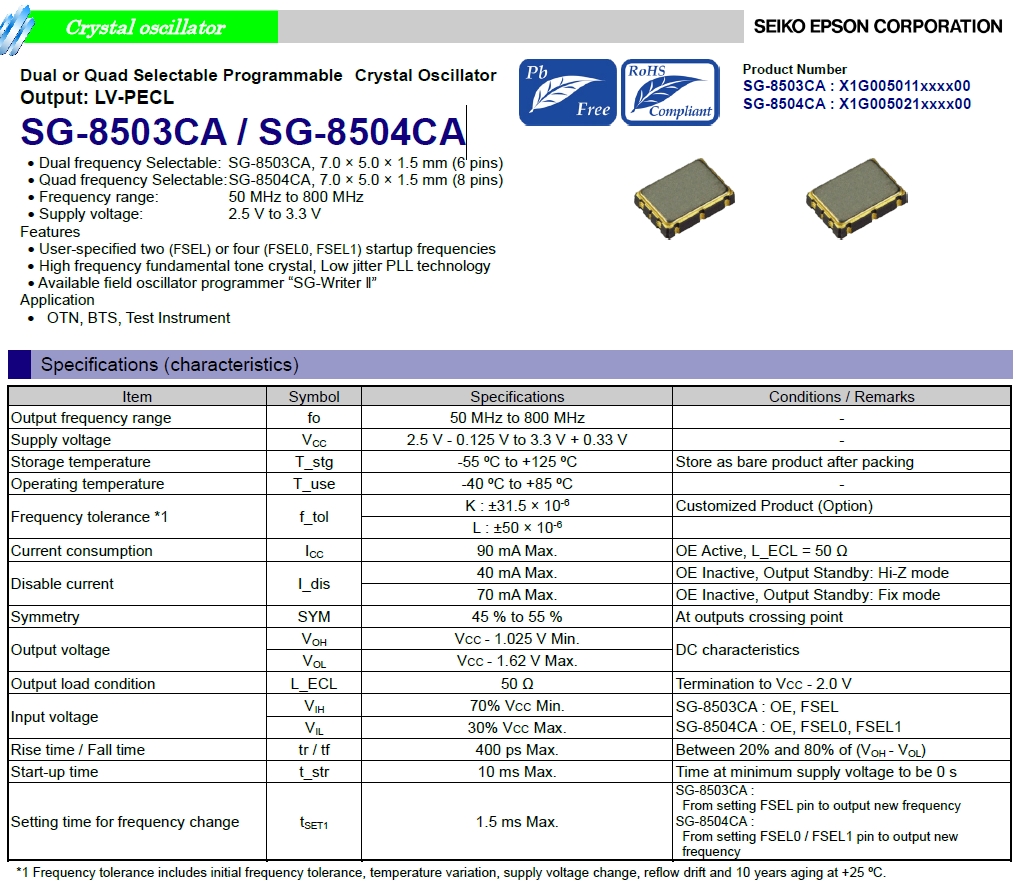

6G無線網絡晶振,X1G0050110004,EPSON高頻差分晶振SG-8503CA 參數表

Item	Symbol	Specifications	Conditions/Remarks
Output frequency range	f0	100MHz	-
Supply voltage	VCC	2.5V-0.125V to 3.3V +0.33V	-
Storage temperature	T_stg	-55°C to +125°C	Store as bare product after packing
Operating temperature	T_use	-40°C to +85°C	-
Frequency tolerance *1	f_tol	±31.5 × 10-6	Customized Product (Option)
Frequency tolerance *1	f_tol	±50 × 10-6
Current consumption	ICC	90mA Max.	OE Active, L_ECL=50Ω
Disable current	I_dis	40mA Max.	OE Inactive, Output Standby: Hi-Z mode
Disable current	I_dis	70mA Max.	OE Inactive, Output Standby: Fix mode
Symmetry	SYM	45% to 55%	At outputs crossing point
Output voltage	VOH	VCC - 1.025 V Min.	DC characteristics
Output voltage	VOL	VCC - 1.62 V Max.	DC characteristics
Output load condition	L_ECL	50Ω	Termination to VCC - 2.0 V
Input voltage	VIH	70% VCC Min.	OE, FSEL
Input voltage	VIL	30% VCC Max.	OE, FSEL
Rise time / Fall time	tr / tf	400ps Max.	Between 20% and 80% of (VOH -VOL)
Start-up time	t_str	10ms Max.	Time at minimum supply voltage to be 0 s
Setting time for frequency change	TSET1	1.5ms Max.	From setting FSEL pin to output new frequency

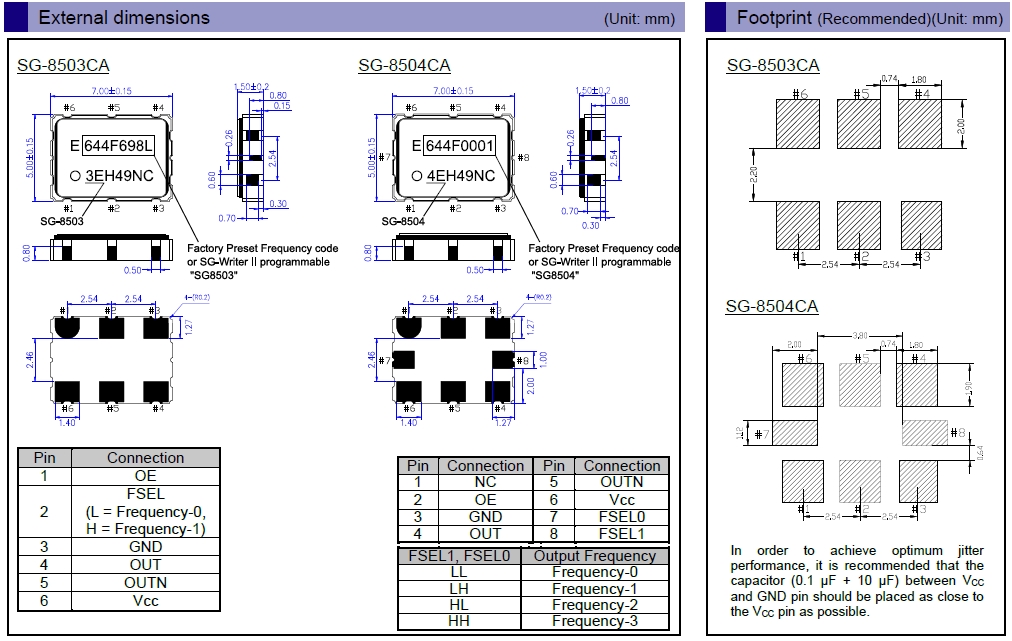

6G無線網絡晶振,X1G0050110004,EPSON高頻差分晶振SG-8503CA 尺寸圖

OSC晶振產品特性：

雙頻可選:SG-8503CA, 7.0×5.0×1.5mm(6引腳)

頻率范圍:50mhz ~ 800mhz

電源電壓:2.5 V至3.3V

用戶指定兩個(FSEL)或四個(FSEL0, FSEL1)啟動頻率

高頻基頻晶體，低抖動鎖相環技術

可用的場振蕩器編程器“SG-Writer _

更多相關日本愛普生晶振型號

編碼	品牌	日產晶振型號	頻率	尺寸	輸出方式	電源電壓	工作溫度
X1G0042910087	愛普生晶振	SG7050EAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910088	愛普生晶振	SG7050EAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910091	愛普生晶振	SG7050EAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910092	愛普生晶振	SG7050EAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910102	愛普生晶振	SG7050EAN	135.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910103	愛普生晶振	SG7050EAN	121.500000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910104	愛普生晶振	SG7050EAN	66.667000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910105	愛普生晶振	SG7050EAN	698.812335 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910106	愛普生晶振	SG7050EAN	153.600000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910107	愛普生晶振	SG7050EAN	644.531200 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910108	愛普生晶振	SG7050EAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910109	愛普生晶振	SG7050EAN	114.285000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910110	愛普生晶振	SG7050EAN	250.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910111	愛普生晶振	SG7050EAN	350.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910112	愛普生晶振	SG7050EAN	80.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910113	愛普生晶振	SG7050EAN	98.304000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910114	愛普生晶振	SG7050EAN	156.253800 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-20 to 70 °C
X1G0042910115	愛普生晶振	SG7050EAN	156.257812 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910116	愛普生晶振	SG7050EAN	114.625000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910117	愛普生晶振	SG7050EAN	300.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910118	愛普生晶振	SG7050EAN	480.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910119	愛普生晶振	SG7050EAN	212.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910120	愛普生晶振	SG7050EAN	350.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910121	愛普生晶振	SG7050EAN	176.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910122	愛普生晶振	SG7050EAN	500.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910123	愛普生晶振	SG7050EAN	622.080000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910124	愛普生晶振	SG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910125	愛普生晶振	SG7050EAN	156.253906 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910126	愛普生晶振	SG7050EAN	156.255468 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910127	愛普生晶振	SG7050EAN	320.000000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910128	愛普生晶振	SG7050EAN	125.003700 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910129	愛普生晶振	SG7050EAN	301.386000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042910130	愛普生晶振	SG7050EAN	233.372000 MHz	7.00 x 5.00 x 1.60 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0045110001	愛普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110002	愛普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110003	愛普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110004	愛普生晶振	SG7050EBN	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110005	愛普生晶振	SG7050EBN	122.880000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110007	愛普生晶振	SG7050EBN	150.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110008	愛普生晶振	SG7050EBN	155.520000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110011	愛普生晶振	SG7050EBN	114.285000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	3.135 to 3.465 V	-40 to 85 °C
X1G0045110012	愛普生晶振	SG7050EBN	156.253906 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110601	愛普生晶振	SG7050EBN	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110602	愛普生晶振	SG7050EBN	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0045110603	愛普生晶振	SG7050EBN	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 2.625 V	-40 to 85 °C
X1G0050110000	愛普生晶振	SG-8503CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110003	愛普生晶振	SG-8503CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110004	愛普生晶振	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050110005	愛普生晶振	SG-8503CA	125.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050111001	愛普生晶振	SG-8503CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210000	愛普生晶振	SG-8504CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210003	愛普生晶振	SG-8504CA	75.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210004	愛普生晶振	SG-8504CA	62.500000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210005	愛普生晶振	SG-8504CA	106.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210006	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050210007	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050211001	愛普生晶振	SG-8504CA	100.000000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310000	愛普生晶振	SG-8506CA		7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050310003	愛普生晶振	SG-8506CA	622.080000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1G0050311001	愛普生晶振	SG-8506CA	156.250000 MHz	7.00 x 5.00 x 1.70 mm	LV-PECL	2.375 to 3.630 V	-40 to 85 °C
X1M0001410001	愛普生晶振	EG-4101CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410002	愛普生晶振	EG-4101CA	281.333300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410003	愛普生晶振	EG-4101CA	106.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410004	愛普生晶振	EG-4101CA	698.812300 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410007	愛普生晶振	EG-4101CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410008	愛普生晶振	EG-4101CA	400.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410010	愛普生晶振	EG-4101CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410013	愛普生晶振	EG-4101CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410014	愛普生晶振	EG-4101CA	644.531200 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0001410017	愛普生晶振	EG-4101CA	156.253906 MHz	7.00 x 5.00 x 1.20 mm	LV-PECL	2.970 to 3.630 V	-40 to 85 °C
X1M0002010001	愛普生晶振	EG-2102CB	133.330000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010002	愛普生晶振	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010003	愛普生晶振	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010004	愛普生晶振	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010005	愛普生晶振	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-20 to 70 °C
X1M0002010006	愛普生晶振	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	0 to 70 °C
X1M0002010007	愛普生晶振	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V	-5 to 85 °C
