EC3645ETTTS-27.000M,5032mm,Ecliptek導航儀晶振,GPS晶振

頻率：27MHz

尺寸：5.0x3.2x1.3mm

EC3645ETTTS-27.000M,5032mm,Ecliptek導航儀晶振,GPS晶振，美國進口晶振，Ecliptek晶振，日蝕晶振，型號：EC36系列，晶振編碼為：EC3645ETTTS-27.000M，頻率：27MHz，電壓：3.3V，工作溫度范圍：-40℃至+85℃，頻率穩定性：±50ppm，CMOS輸出晶振，小體積晶振尺寸：5.0x3.2x1.3mm表面封裝，四腳貼片晶振，石英晶振，時鐘晶體振蕩器，SMD晶振，有源晶振，石英晶體振蕩器。具有超小型，輕薄型，高品質，高可靠性，耐熱及耐環境等特點。應用于：通信晶振，藍牙晶振，導航儀晶振，汽車電子晶振，GPS晶振，數碼電子等應用。

訂購熱線：86-0755-27838351

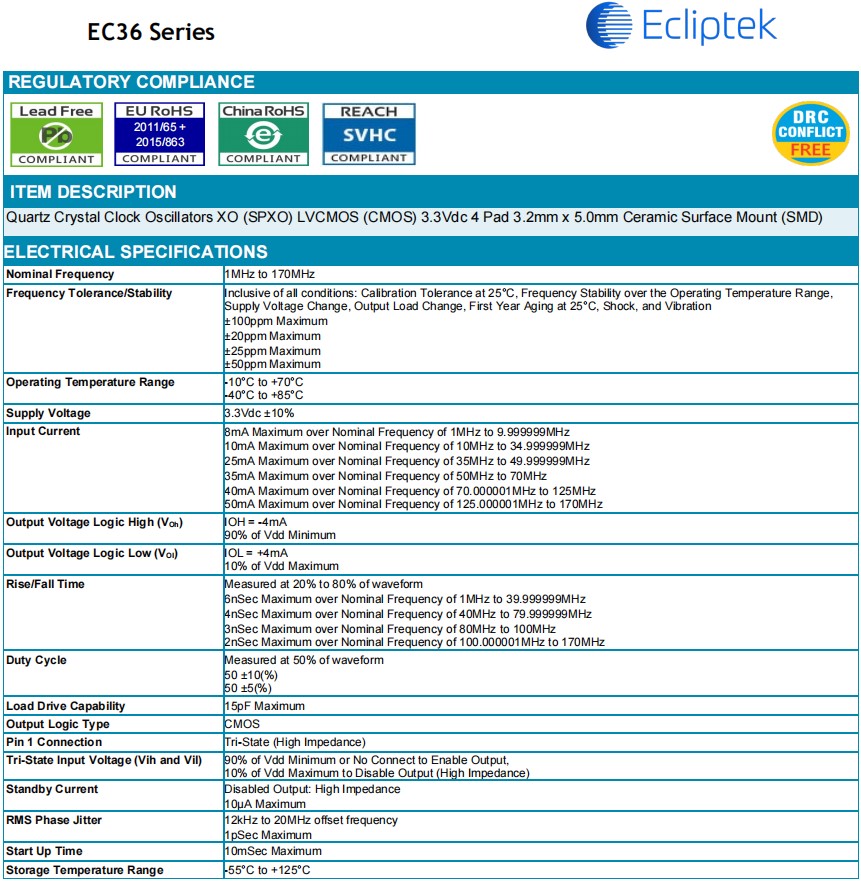

EC3645ETTTS-27.000M,5032mm,Ecliptek導航儀晶振,GPS晶振,參數表

Nominal Frequency		27 MHz
Frequency Tolerance/Stability		Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range, Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration ±100ppm Maximum ±20ppm Maximum ±25ppm Maximum ±50ppm Maximum
Operating Temperature Range		- 10°C to +70°C -40°C to +85°C
Supply Voltage		3.3Vdc ±10%
Input Current		8mA Maximum over Nominal Frequency of 1MHz to 9.999999MHz 10mA Maximum over Nominal Frequency of 10MHz to 34.999999MHz 25mA Maximum over Nominal Frequency of 35MHz to 49.999999MHz 35mA Maximum over Nominal Frequency of 50MHz to 70MHz 40mA Maximum over Nominal Frequency of 70.000001MHz to 125MHz 50mA Maximum over Nominal Frequency of 125.000001MHz to 170MHz
Output Voltage Logic High (VOh)		IOH = -4mA 90% of Vdd Minimum
Output Voltage Logic Low (VOl)		IOL = +4mA 10% of Vdd Maximum
Rise/Fall Time		Measured at 20% to 80% of waveform 6nSec Maximum over Nominal Frequency of 1MHz to 39.999999MHz 4nSec Maximum over Nominal Frequency of 40MHz to 79.999999MHz 3nSec Maximum over Nominal Frequency of 80MHz to 100MHz 2nSec Maximum over Nominal Frequency of 100.000001MHz to 170MHz
Duty Cycle		Measured at 50% of waveform 50 ±10(%) 50 ±5(%)
Load Drive Capability		15pF Maximum
Output Logic Type		CMOS
Pin 1 Connection		Tri-State (High Impedance)
Tri-State Input Voltage (Vih and Vil)		90% of Vdd Minimum or No Connect to Enable Output, 10% of Vdd Maximum to Disable Output (High Impedance)
Standby Current		Disabled Output: High Impedance 10µA Maximum
RMS Phase Jitter		12kHz to 20MHz offset frequency 1pSec Maximum
Start Up Time		10mSec Maximum
Storage Temperature Range		-55°C to +125°C

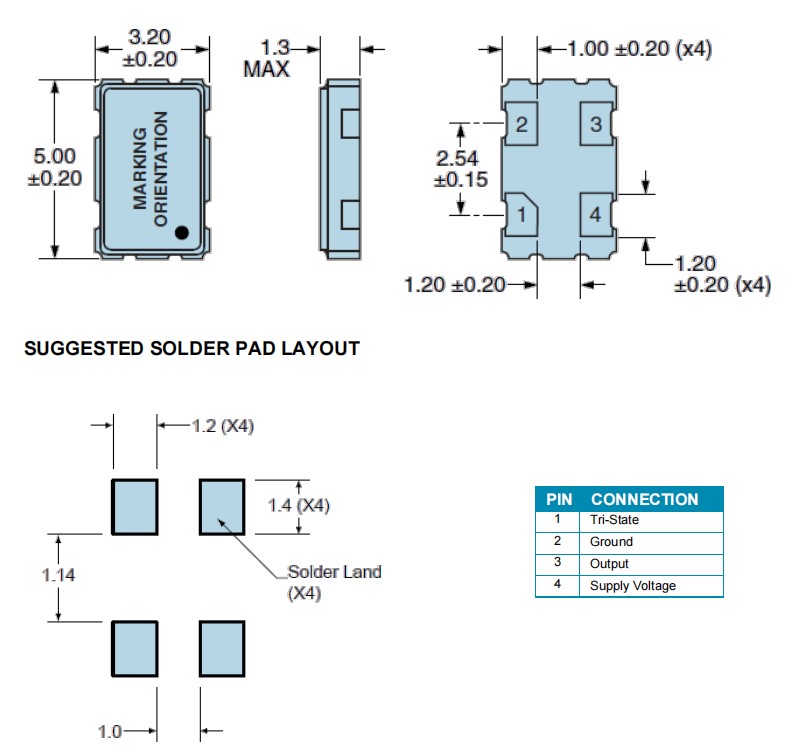

EC3645ETTTS-27.000M,5032mm,Ecliptek導航儀晶振,GPS晶振,尺寸圖

進口貼片晶振	品牌	型號	頻率	長	寬	高
EC3600ETTS-18.432M TR	Ecliptek晶振	EC36	18.432 MHz	5mm	3.2mm	1.3mm
EC3625ETTTS-50.000M TR	Ecliptek晶振	EC36	50 MHz	5mm	3.2mm	1.3mm
EC3625ETTTS-80.000M	Ecliptek晶振	EC36	80 MHz	5mm	3.2mm	1.3mm
EC3625ETTTS-80.000M TR	Ecliptek晶振	EC36	80 MHz	5mm	3.2mm	1.3mm
EC3625TS-32.000M TR	Ecliptek晶振	EC36	32 MHz	5mm	3.2mm	1.3mm
EC3645ETTS-125.000M	Ecliptek晶振	EC36	125 MHz	5mm	3.2mm	1.3mm
EC3645ETTS-125.000M TR	Ecliptek晶振	EC36	125 MHz	5mm	3.2mm	1.3mm
EC3645ETTS-16.000M	Ecliptek晶振	EC36	16 MHz	5mm	3.2mm	1.3mm
EC3645ETTS-33.333M TR	Ecliptek晶振	EC36	33.333 MHz	5mm	3.2mm	1.3mm
EC3645ETTS-48.000M	Ecliptek晶振	EC36	48 MHz	5mm	3.2mm	1.3mm
EC3645ETTTS-100.000M TR	Ecliptek晶振	EC36	100 MHz	5mm	3.2mm	1.3mm
EC3645ETTTS-24.000M TR	Ecliptek晶振	EC36	24 MHz	5mm	3.2mm	1.3mm
EC3645ETTTS-27.000M	Ecliptek晶振	EC36	27 MHz	5mm	3.2mm	1.3mm
EC3645ETTTS-33.333M TR	Ecliptek晶振	EC36	33.333 MHz	5mm	3.2mm	1.3mm
EC3645TS-25.000M TR	Ecliptek晶振	EC36	25 MHz	5mm	3.2mm	1.3mm
EC3645TS-40.000M	Ecliptek晶振	EC36	40 MHz	5mm	3.2mm	1.3mm
EC3645TTS-16.384M	Ecliptek晶振	EC36	16.384 MHz	5mm	3.2mm	1.3mm
EC3645TTS-24.000M TR	Ecliptek晶振	EC36	24 MHz	5mm	3.2mm	1.3mm
EC3645TTS-24.576M TR	Ecliptek晶振	EC36	24.576 MHz	5mm	3.2mm	1.3mm
EC3645TTS-24.750M TR	晶振廠家	EC36	24.75 MHz	5mm	3.2mm	1.3mm
EC3645TTS-25.000M	Ecliptek晶振	EC36	25 MHz	5mm	3.2mm	1.3mm
EC3645TTS-25.000M TR	Ecliptek晶振	EC36	25 MHz	5mm	3.2mm	1.3mm
EC3645TTS-32.000M TR	Ecliptek晶振	EC36	32 MHz	5mm	3.2mm	1.3mm
EC3645TTS-33.333M	Ecliptek晶振	EC36	33.333 MHz	5mm	3.2mm	1.3mm
EC3645TTS-66.666M TR	Ecliptek晶振	EC36	66.666 MHz	5mm	3.2mm	1.3mm
EC3645TTS-7.3728M TR	Ecliptek晶振	EC36	7.3728 MHz	5mm	3.2mm	1.3mm
EC3645TTS-80.000M TR	Ecliptek晶振	EC36	80 MHz	5mm	3.2mm	1.3mm
