頻率：56MHZ
尺寸：20.80mmx13.20mm

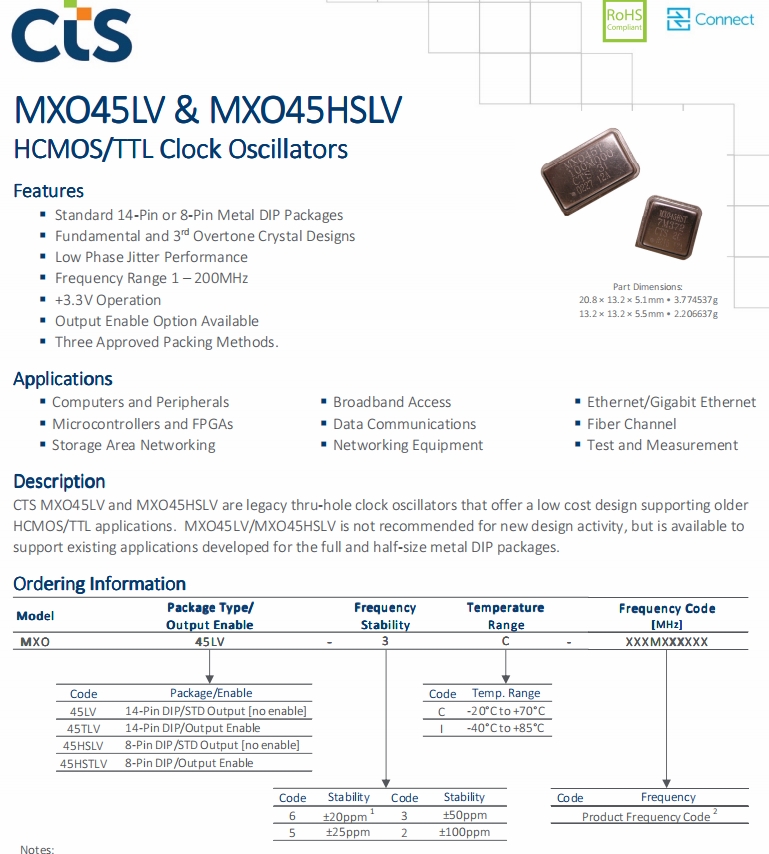

MXO45LV-2C-56M0000,6G無線通信晶振,CTS西迪斯晶振,長方型鐘振，尺寸為20.80mmx13.20mm,頻率為56MHZ，時鐘振蕩器，進口有源晶體振蕩器，歐美晶振，低抖動振蕩器，低電壓振蕩器，高品質晶振，有源晶振，CTS MXO45LV和MXO45HSLV是傳統的通孔時鐘振蕩器，提供低成本的設計，支持舊的HCMOS / TTL應用程序。MXO45LV/MXO45HSLV不推薦用于新的設計活動，但可用于支持為全尺寸和半尺寸金屬DIP封裝開發的現有應用。
有源晶體振蕩器產品應用：計算機和外圍設備，微控制器和fpga，存儲區域組網，寬帶接入，數據通信，網絡設備，以太網/千兆以太網，光纖通道，測試與測量等領域。MXO45LV-2C-56M0000,6G無線通信晶振,CTS西迪斯晶振,長方型鐘振.
MXO45LV-2C-56M0000,6G無線通信晶振,CTS西迪斯晶振,長方型鐘振，尺寸為20.80mmx13.20mm,頻率為56MHZ，時鐘振蕩器，進口有源晶體振蕩器，歐美晶振，低抖動振蕩器，低電壓振蕩器，高品質晶振，有源晶振，CTS MXO45LV和MXO45HSLV是傳統的通孔時鐘振蕩器，提供低成本的設計，支持舊的HCMOS / TTL應用程序。MXO45LV/MXO45HSLV不推薦用于新的設計活動，但可用于支持為全尺寸和半尺寸金屬DIP封裝開發的現有應用。
有源晶體振蕩器產品應用：計算機和外圍設備，微控制器和fpga，存儲區域組網，寬帶接入，數據通信，網絡設備，以太網/千兆以太網，光纖通道，測試與測量等領域。MXO45LV-2C-56M0000,6G無線通信晶振,CTS西迪斯晶振,長方型鐘振.
MXO45LV-2C-56M0000,6G無線通信晶振,CTS西迪斯晶振,長方型鐘振 參數表
| PARAMETER | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNIT | |||||||||||||||
| Frequency Range |
 O
|
- | 30 | MHz | |||||||||||||||||
| Freq uency Stability [Note 1] | Δf/fO | - | 20, 25, 50 or 100 | ±ppm | |||||||||||||||||
| Aging | Δf/f25 | First Year @ +25°C, nominal VCC -5 | ±3 | 5 | ppm | ||||||||||||||||
| 1.] Inclusive of initial tolerance at time | of shipment, changes | in supply voltage, load, temperature and 1st year aging. | |||||||||||||||||||
| Output Parameters | |||||||||||||||||||||
| PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNIT | |||||||||||||||||||||
| Output Type | - | - | HCMOS | - | |||||||||||||||||
| Output Load | 1 .0MHz to 50MHz [CMOS Load] - | 15 | 30 | ||||||||||||||||||
| CL | 50 .001MHz to 80MHz [CMOS Load] - | 15 | 15 | pF | |||||||||||||||||
| 80 .001MHz to 200MHz [CMOS Load] - | 15 | 15 | |||||||||||||||||||
| 1 .0MHz to 200MHz [TTL Load] - | - | 10 | TTL | ||||||||||||||||||
| O utput Voltage Levels |
VOH VOL |
CMOS Load 10TTL Load CMOS Load 10TTL Load |
0 .9VCC 2 .4 - - |
- - - - |
- - 0 .1VCC 0 .4 |
V | |||||||||||||||
| O utput Current Levels |
IOH IOL |
VOH = 2 .2V, VCC = 3 .3V VOL = 0 .4V, VCC = 3 .3V |
- - |
- - |
-8 8 |
mA | |||||||||||||||
| O utput Duty Cyc le | SYM | @ 50% Level 45 | - | 55 | % | ||||||||||||||||
| Rise and Fall Time | @ 10%/90% Levels [tested load noted for TYP values.] | ||||||||||||||||||||
| 1 .0MHz to 20MHz [CL = 30pF] - | 8 | 10 | |||||||||||||||||||
| TR, TF |
20 .001MHz to 80MHz [CL = 15pF] 80 .001MHz to 125MHz [CL = 15pF] |
- - |
5 2 .5 |
8 5 |
ns | ||||||||||||||||
| 125 .001MHz to 200MHz [CL = 15pF] - | - | 2 | |||||||||||||||||||
| Start Up Time | TS | Application of VCC, CL = 15pF - | 5 | 10 | ms | ||||||||||||||||

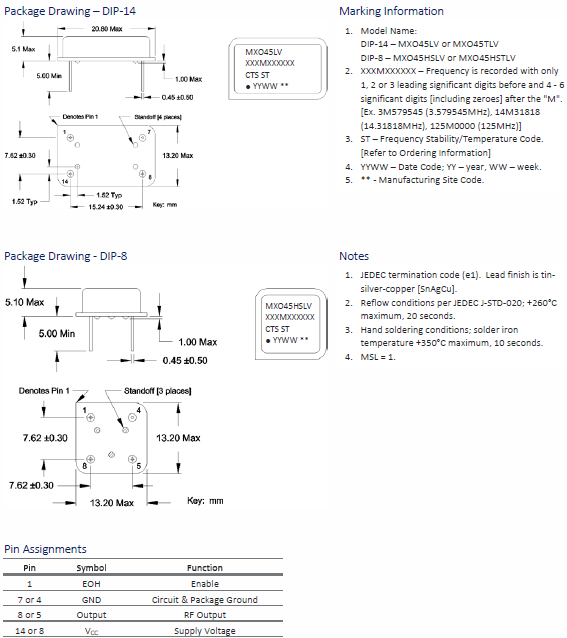

MXO45LV-2C-56M0000,6G無線通信晶振,CTS西迪斯晶振,長方型鐘振 尺寸圖
產品特征：
標準14針或8針金屬DIP封裝
基本和第三泛音晶體設計
低相位抖動性能
頻率范圍1 - 200MHz
+ 3.3 v操作
輸出啟用選項可用
三種批準的包裝方法。
| Manufacturer Part Number原廠代碼 | 晶振廠家 | Series型號 | Frequency 頻率 | Frequency Stability頻率穩定度 |
| MXO45-3C-19M6608 | CTS-Frequency Controls | MXO45 | 19.6608MHz | ±50ppm |
| MXO45T-3C-19M6608 | CTS-Frequency Controls | MXO45 | 19.6608MHz | ±50ppm |
| MXO45T-3C-2M0000 | CTS-Frequency Controls | MXO45 | 2MHz | ±50ppm |
| MXO45-3C-2M4576 | CTS-Frequency Controls | MXO45 | 2.4576MHz | ±50ppm |
| MXO45T-3C-2M4576 | CTS-Frequency Controls | MXO45 | 2.4576MHz | ±50ppm |
| MXO45T-3C-24M0000 | CTS-Frequency Controls | MXO45 | 24MHz | ±50ppm |
| MXO45T-3C-25M0000 | CTS-Frequency Controls | MXO45 | 25MHz | ±50ppm |
| MXO45T-3C-25M1750 | CTS-Frequency Controls | MXO45 | 25.175MHz | ±50ppm |
| MXO45-3C-25M1750 | CTS-Frequency Controls | MXO45 | 25.175MHz | ±50ppm |
| MXO45T-3C-28M3220 | CTS-Frequency Controls | MXO45 | 28.322MHz | ±50ppm |
| MXO45T-3C-3M6864 | CTS-Frequency Controls | MXO45 | 3.6864MHz | ±50ppm |
| MXO45T-3C-32M0000 | CTS-Frequency Controls | MXO45 | 32MHz | ±50ppm |
| MXO45T-3C-4M0000 | CTS-Frequency Controls | MXO45 | 4MHz | ±50ppm |
| MXO45T-3C-4M9152 | CTS-Frequency Controls | MXO45 | 4.9152MHz | ±50ppm |
| MXO45T-3C-40M0000 | CTS-Frequency Controls | MXO45 | 40MHz | ±50ppm |
| MXO45-3C-5M0688 | CTS-Frequency Controls | MXO45 | 5.0688MHz | ±50ppm |
| MXO45T-3C-5M0688 | CTS-Frequency Controls | MXO45 | 5.0688MHz | ±50ppm |
| MXO45T-3C-50M0000 | CTS-Frequency Controls | MXO45 | 50MHz | ±50ppm |
| MXO45T-3C-6M1440 | CTS-Frequency Controls | MXO45 | 6.144MHz | ±50ppm |
| MXO45T-3C-7M3728 | CTS-Frequency Controls | MXO45 | 7.3728MHz | ±50ppm |
| MXO45T-3C-8M0000 | CTS-Frequency Controls | MXO45 | 8MHz | ±50ppm |
| MXO45-3C-25M0000 | CTS-Frequency Controls | MXO45 | 25MHz | ±50ppm |
| MXO45-3C-28M3220 | CTS-Frequency Controls | MXO45 | 28.322MHz | ±50ppm |
| MXO45-3C-3M6864 | CTS-Frequency Controls | MXO45 | 3.6864MHz | ±50ppm |
| MXO45-3C-50M0000 | CTS-Frequency Controls | MXO45 | 50MHz | ±50ppm |
| MXO45-2C-11M0592 | CTS-Frequency Controls | MXO45 | 11.0592MHz | ±100ppm |
| MXO45-2C-12M5000 | CTS-Frequency Controls | MXO45 | 12.5MHz | ±100ppm |
| MXO45-2C-15M0000 | CTS-Frequency Controls | MXO45 | 15MHz | ±100ppm |
| MXO45-2C-15M3842 | CTS-Frequency Controls | MXO45 | 15.3842MHz | ±100ppm |
| MXO45-2C-15M8420 | CTS-Frequency Controls | MXO45 | 15.842MHz | ±100ppm |
| MXO45-2C-1M2288 | CTS-Frequency Controls | MXO45 | 1.2288MHz | ±100ppm |
| MXO45-2C-1M5440 | CTS-Frequency Controls | MXO45 | 1.544MHz | ±100ppm |
| MXO45-2C-20M4800 | CTS-Frequency Controls | MXO45 | 20.48MHz | ±100ppm |
| MXO45-2C-23M9620 | CTS-Frequency Controls | MXO45 | 23.962MHz | ±100ppm |
| MXO45-2C-27M0000 | CTS-Frequency Controls | MXO45 | 27MHz | ±100ppm |
| MXO45-2C-2M0480 | CTS-Frequency Controls | MXO45 | 2.048MHz | ±100ppm |
| MXO45-2C-30M0000 | CTS-Frequency Controls | MXO45 | 30MHz | ±100ppm |
| MXO45-2C-33M0000 | CTS-Frequency Controls | MXO45 | 33MHz | ±100ppm |
| MXO45-2C-39M9360 | CTS-Frequency Controls | MXO45 | 39.936MHz | ±100ppm |
| MXO45-2C-41M0000 | CTS-Frequency Controls | MXO45 | 41MHz | ±100ppm |
| MXO45-2C-4M0960 | CTS-Frequency Controls | MXO45 | 4.096MHz | ±100ppm |
| MXO45-2C-4M1943 | CTS-Frequency Controls | MXO45 | 4.1943MHz | ±100ppm |
| MXO45-2C-60M0000 | CTS-Frequency Controls | MXO45 | 60MHz | ±100ppm |
| MXO45-2C-6M1760 | CTS-Frequency Controls | MXO45 | 6.176MHz | ±100ppm |
| MXO45-2I-10M0000 | CTS-Frequency Controls | MXO45 | 10MHz | ±100ppm |
| MXO45-2I-11M0590 | CTS-Frequency Controls | MXO45 | 11.059MHz | ±100ppm |
| MXO45-2I-11M0592 | CTS-Frequency Controls | MXO45 | 11.0592MHz | ±100ppm |
| MXO45-2I-12M0000 | CTS-Frequency Controls | MXO45 | 12MHz | ±100ppm |
| MXO45-2I-15M0000 | CTS-Frequency Controls | MXO45 | 15MHz | ±100ppm |
| MXO45-2I-15M9000 | CTS-Frequency Controls | MXO45 | 15.9MHz | ±100ppm |
| MXO45-2I-16M0000 | CTS-Frequency Controls | MXO45 | 16MHz | ±100ppm |
| MXO45-2I-16M3840 | CTS-Frequency Controls | MXO45 | 16.384MHz | ±100ppm |
| MXO45-2I-19M6608 | CTS-Frequency Controls | MXO45 | 19.6608MHz | ±100ppm |
| MXO45-2I-1M2288 | CTS-Frequency Controls | MXO45 | 1.2288MHz | ±100ppm |
| MXO45-2I-1M8432 | CTS-Frequency Controls | MXO45 | 1.8432MHz | ±100ppm |
| MXO45-2I-20M0000 | CTS-Frequency Controls | MXO45 | 20MHz | ±100ppm |
| MXO45-2I-23M2000 | CTS-Frequency Controls | MXO45 | 23.2MHz | ±100ppm |
| MXO45-2I-25M0000 | CTS-Frequency Controls | MXO45 | 25MHz | ±100ppm |
| MXO45-2I-2M0000 | CTS-Frequency Controls | MXO45 | 2MHz | ±100ppm |
| MXO45-2I-2M4576 | CTS-Frequency Controls | MXO45 | 2.4576MHz | ±100ppm |
| MXO45-2I-30M0000 | CTS-Frequency Controls | MXO45 | 30MHz | ±100ppm |
| MXO45-2I-32M0000 | CTS-Frequency Controls | MXO45 | 32MHz | ±100ppm |
| MXO45-2I-33M3333 | CTS-Frequency Controls | MXO45 | 33.3333MHz | ±100ppm |
| MXO45-2I-3M6864 | CTS-Frequency Controls | MXO45 | 3.6864MHz | ±100ppm |
| MXO45-2I-4M0000 | CTS-Frequency Controls | MXO45 | 4MHz | ±100ppm |
| MXO45-2I-4M1943 | CTS-Frequency Controls | MXO45 | 4.1943MHz | ±100ppm |
| MXO45-2I-7M3728 | CTS-Frequency Controls | MXO45 | 7.3728MHz | ±100ppm |
| MXO45-2I-8M0000 | CTS-Frequency Controls | MXO45 | 8MHz | ±100ppm |
| MXO45-3C-11M0592 | CTS-Frequency Controls | MXO45 | 11.0592MHz | ±50ppm |
| MXO45-3C-12M3520 | CTS晶振 | MXO45 | 12.352MHz | ±50ppm |
| MXO45-3C-12M3540 | CTS-Frequency Controls | MXO45 | 12.354MHz | ±50ppm |
| MXO45-3C-13M0000 | CTS-Frequency Controls | MXO45 | 13MHz | ±50ppm |
| MXO45-3C-14M7456 | CTS-Frequency Controls | MXO45 | 14.7456MHz | ±50ppm |
| MXO45-3C-1M2288 | CTS-Frequency Controls | MXO45 | 1.2288MHz | ±50ppm |
| MXO45-3C-1M8400 | CTS-Frequency Controls | MXO45 | 1.84MHz | ±50ppm |
| MXO45-3C-22M1184 | CTS-Frequency Controls | MXO45 | 22.1184MHz | ±50ppm |
| MXO45-3C-30M0000 | CTS-Frequency Controls | MXO45 | 30MHz | ±50ppm |
| MXO45-3C-33M0000 | CTS-Frequency Controls | MXO45 | 33MHz | ±50ppm |
| MXO45-3C-37M0560 | CTS-Frequency Controls | MXO45 | 37.056MHz | ±50ppm |
| MXO45-3C-54M0000 | CTS-Frequency Controls | MXO45 | 54MHz | ±50ppm |
| MXO45-3I-10M4920 | CTS-Frequency Controls | MXO45 | 10.492MHz | ±50ppm |
| MXO45-3I-11M0592 | CTS-Frequency Controls | MXO45 | 11.0592MHz | ±50ppm |
| MXO45-3I-18M0000 | CTS-Frequency Controls | MXO45 | 18MHz | ±50ppm |
| MXO45-3I-1M0000 | CTS-Frequency Controls | MXO45 | 1MHz | ±50ppm |
| MXO45-3I-1M8432 | CTS-Frequency Controls | MXO45 | 1.8432MHz | ±50ppm |
| MXO45-3I-20M0000 | CTS-Frequency Controls | MXO45 | 20MHz | ±50ppm |
6G無線藍牙晶振|HEC陶瓷諧振器|HE-MCC-125A-44.000F-E，尺寸7.0×5.0mm，頻率44MHZ，HEC美國晶振，進口無源晶振，陶瓷諧振器，兩腳貼片晶振，無源晶體，SMD晶振，無源貼片晶振，輕薄型晶振，無鉛環保晶振，7050mm貼片晶體，高品質晶振，高性能晶振，低損耗無源晶體，智能手機晶振，儀器設備晶振，6G無線藍牙晶振，便攜式設備晶振，消費電子專用晶振，具有超高可靠性能以及穩定性能.
HE-MCC-125和HE-MCC-170系列是HEC的縮影陶瓷基表面貼裝貼片晶振，封裝高度為 只有1.25毫米/ 1.70毫米。這些晶體是玻璃密封在一個 陶瓷外殼，提供經濟的成本和高可靠性。HEC提供三(3)種不同的真正SMD封裝模式，擴展的溫度范圍是可選的。6G無線藍牙晶振|HEC陶瓷諧振器|HE-MCC-125A-44.000F-E.
ACT艾西迪晶振,1700時鐘振蕩器,CL1600BBISEPL-PF,6G路由器晶振，尺寸12.9*12.9mm,頻率為16MHZ，正方型鐘振，大尺寸振蕩器，石英晶體振蕩器，有源晶振，OSC晶振，高品質晶振，高性能晶振，低抖動晶振，低電壓晶振，醫療產品專用晶振，儀器設備晶振，數碼電子晶振，安防專用晶振，6G應用晶振，6G無線設備晶振，6G路由器晶振。
石英晶體振蕩器產品主要應用范圍：醫療產品，儀器設備，數碼電子，安防，6G應用，6G無線設備，6G路由器等領域。ACT艾西迪晶振,1700時鐘振蕩器,CL1600BBISEPL-PF,6G路由器晶振.
瑞斯克晶振,CCO-083-20.000,長方型鐘振,6G發射器晶振，尺寸為20.83*11.43mm,頻率20MHZ，時鐘振蕩器，有源晶體振蕩器，有源晶振，石英晶體振蕩器，OSC晶振，高品質晶振，高性能晶振，低抖動晶振，低耗能晶振，CCO-083/085(時鐘版本)和CVXO-083/085 (VCXO版本)產生10mhz ~ 200mhz的頻率。這個小電流正弦波振蕩器提供-150dBc/Hz的本底噪聲，而僅消耗8mA的典型。輸出電平為0dBm，最小到50歐姆，諧波小于-20dBc。該系列沒有次諧波，由于使用倒臺面(高頻)基本晶體)技術。振蕩器提供了一個擴展工作溫度范圍(-40°C至+85°C)，也可在3.3V和5V模型。應用程序包括低電流應用程序和源驅動鎖相環和混頻器。
OSC晶振產品主要應用范圍：藍牙模塊，6G發射器，無線設備，儀器儀表，物聯網等領域。瑞斯克晶振,CCO-083-20.000,長方型鐘振,6G發射器晶振.
